1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e0948856-ff8f-4c3a-895a-6acad742554d.png?width=216&height=456)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4676d3ae-b6f2-46e5-8a3a-7cb3426bd6a0.png?width=216&height=456)

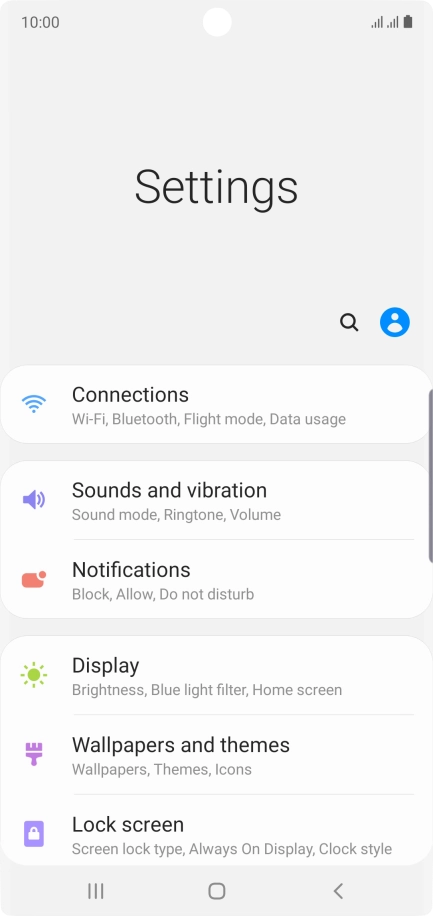

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fbbff45e-ce4e-49ac-886c-1d98d4da1cca.png?width=216&height=456)

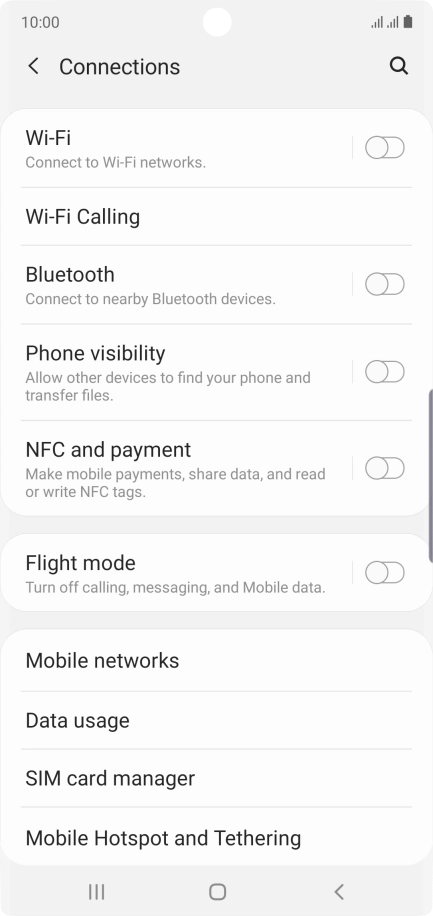

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-64c4a9b1-ab8f-4348-bf3f-ba6cffd0fd97.png?width=216&height=456)

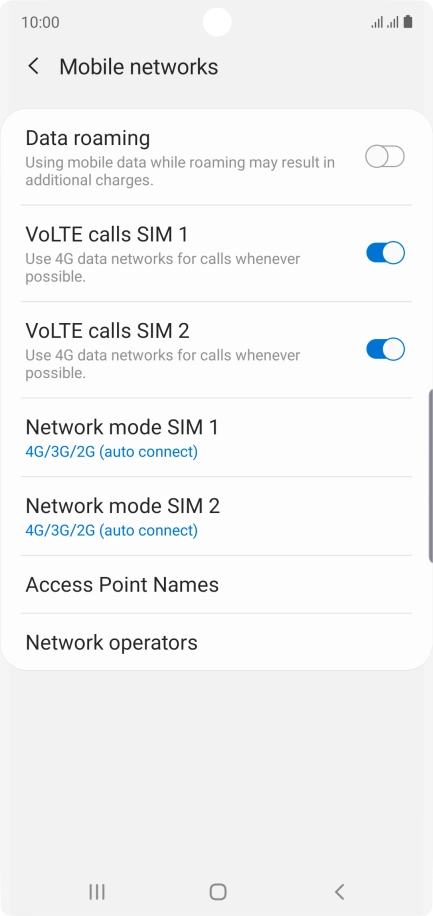

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f2c74a77-6bac-443d-af38-f5919adc3667.png?width=216&height=456)
2. Create new data connection

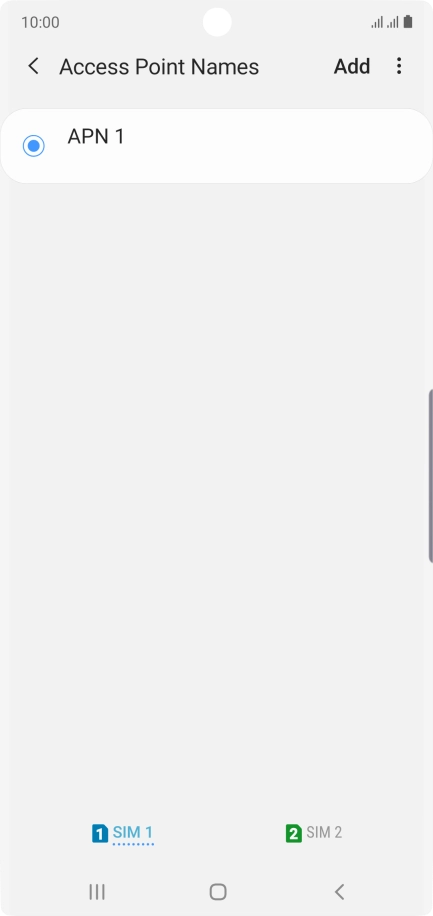

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fe4b4e3d-b11e-4324-89ec-471dc0e52eb2.png?width=216&height=456)

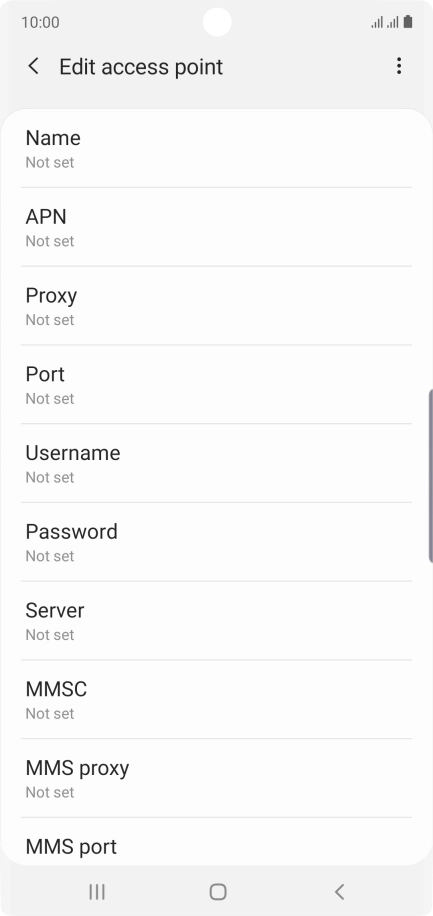

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5a5d798c-77a9-4bc5-86e6-32d7bff040c8.png?width=216&height=456)

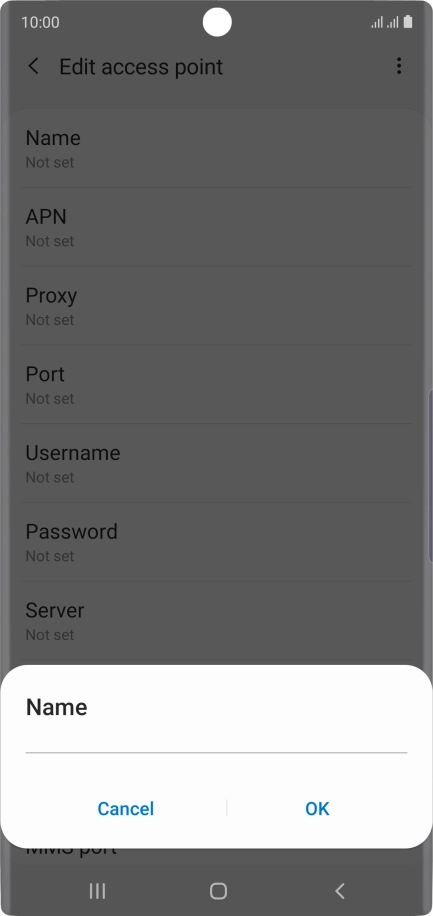

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e3da21ae-212a-4f0f-a397-15619e315ee1.png?width=216&height=456)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5a5d798c-77a9-4bc5-86e6-32d7bff040c8.png?width=216&height=456)

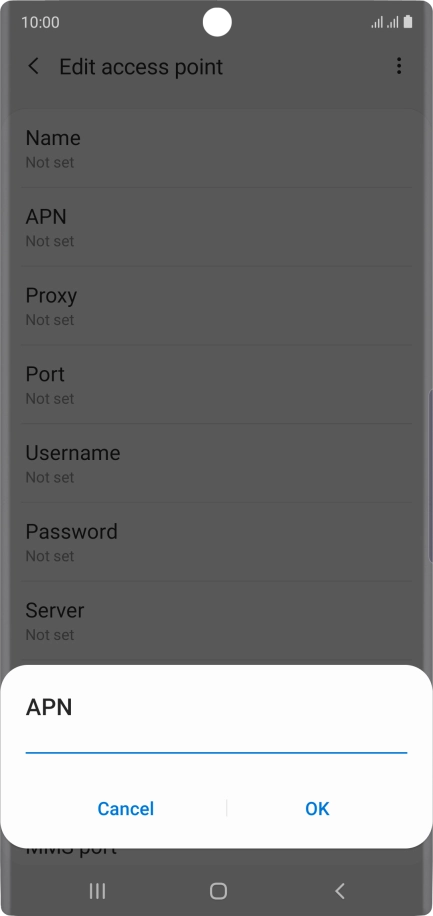

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78dd7606-cdeb-4f92-a4bf-841865a02820.png?width=216&height=456)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5a5d798c-77a9-4bc5-86e6-32d7bff040c8.png?width=216&height=456)

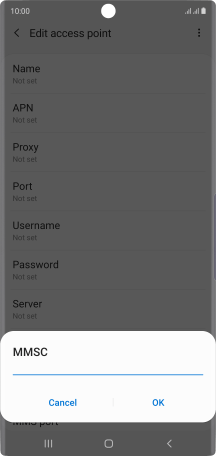

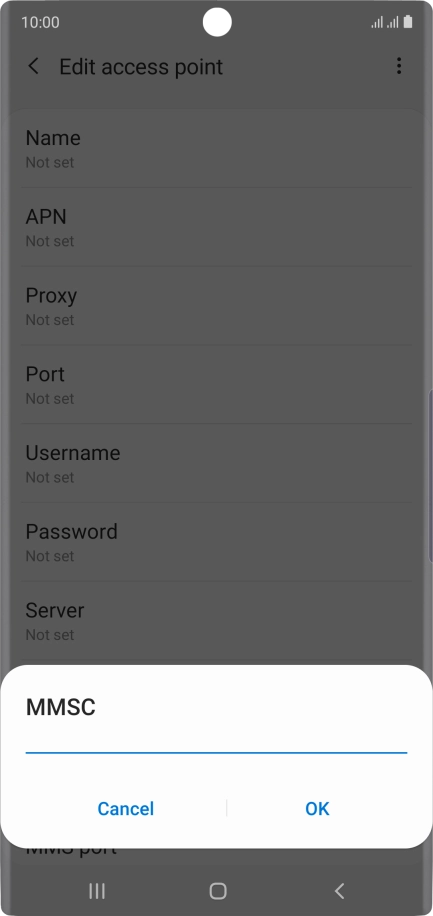

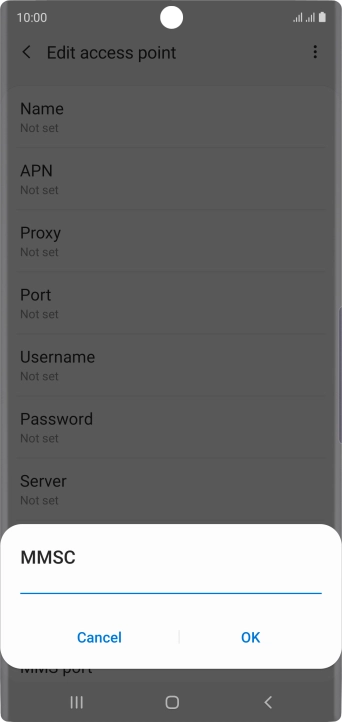

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f635f6f4-5467-499c-8590-dff8da1bbe52.png?width=216&height=456)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5a5d798c-77a9-4bc5-86e6-32d7bff040c8.png?width=216&height=456)

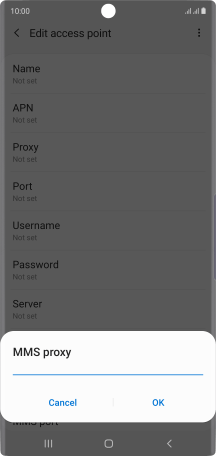

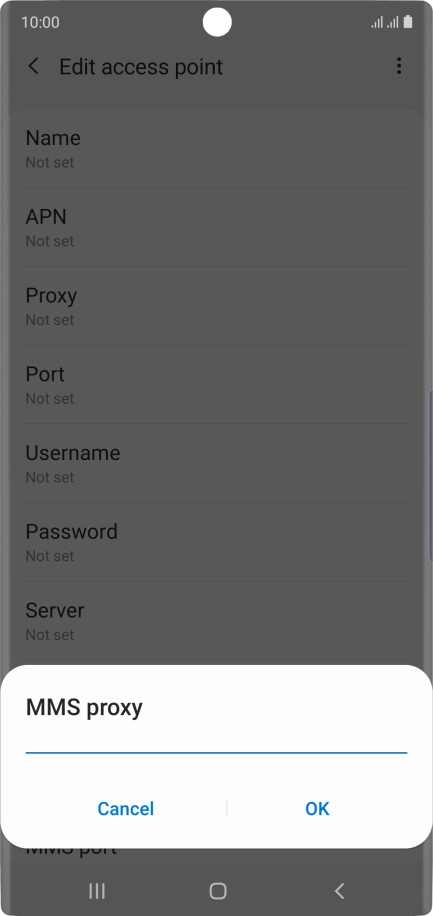

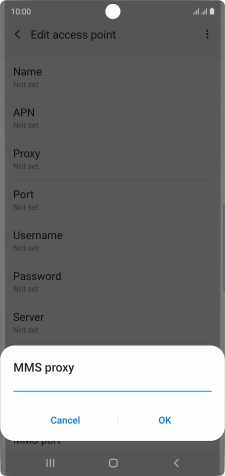

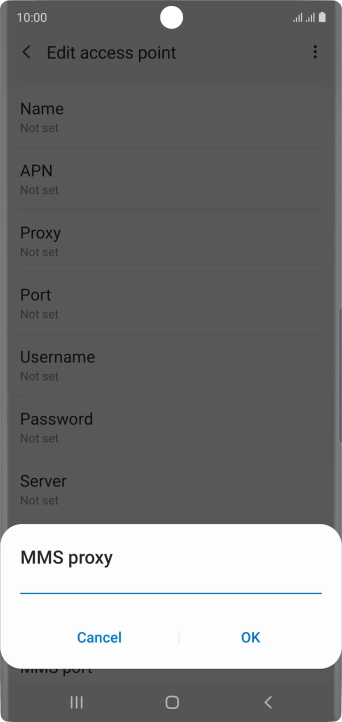

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-bc08f4e5-5934-4190-8f65-a55c4ad87fdf.png?width=216&height=456)
10.202.002.060
6. Enter port number

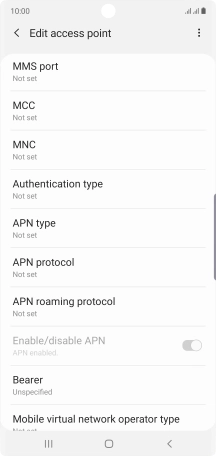

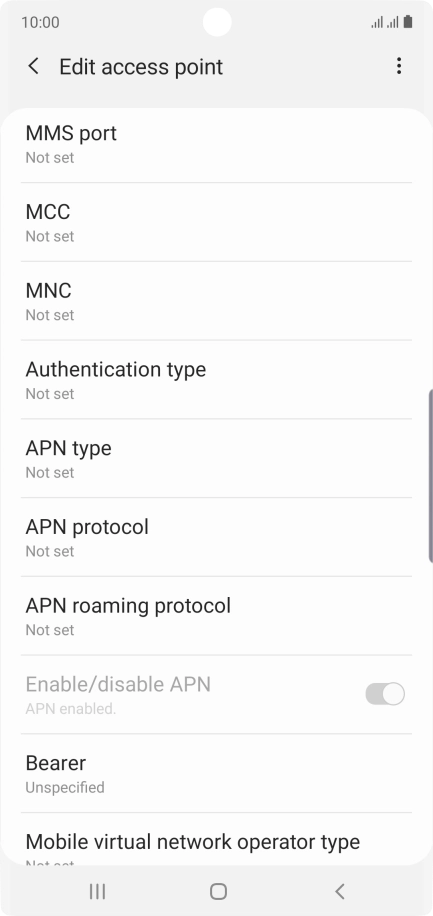

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5073ded7-d5ea-490c-a8e0-53dcbc6ac96d.png?width=216&height=456)

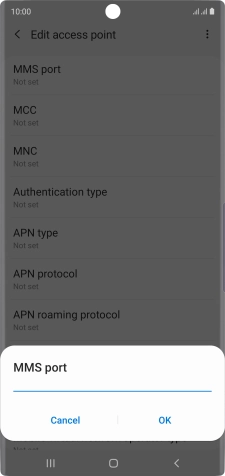

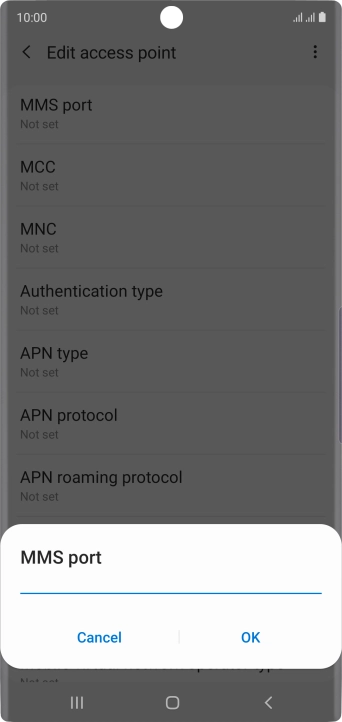

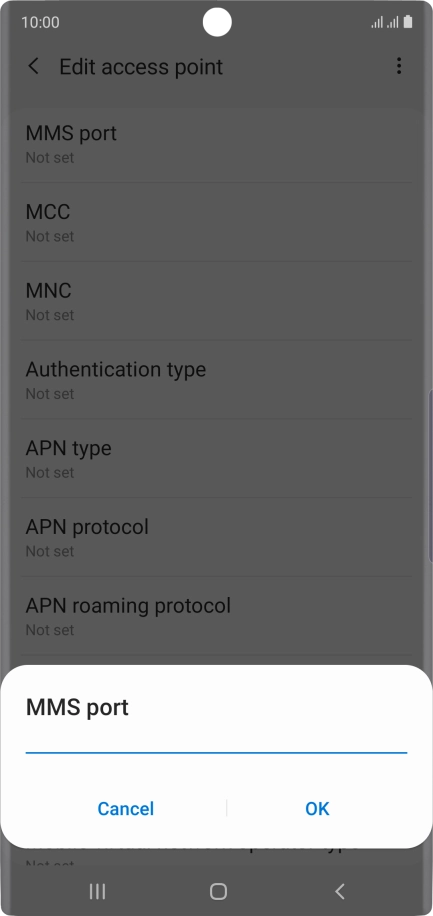

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-396dbb13-2a64-4fed-a544-7f7d325079de.png?width=216&height=456)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5073ded7-d5ea-490c-a8e0-53dcbc6ac96d.png?width=216&height=456)

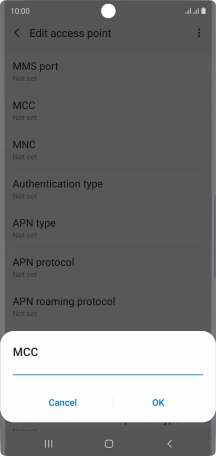

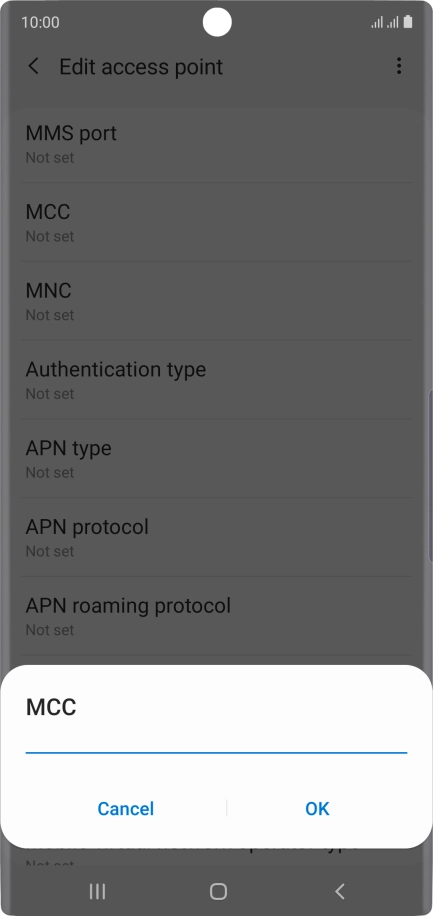

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d3ed5656-5799-4cc5-864f-7370d85517f4.png?width=216&height=456)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5073ded7-d5ea-490c-a8e0-53dcbc6ac96d.png?width=216&height=456)

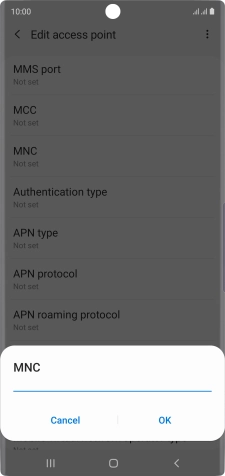

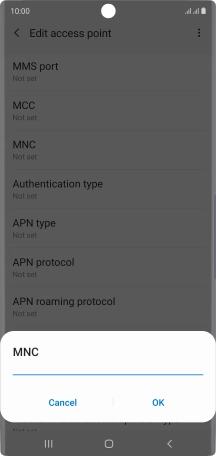

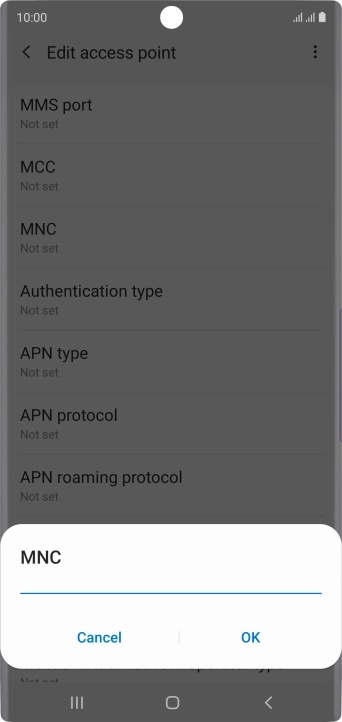

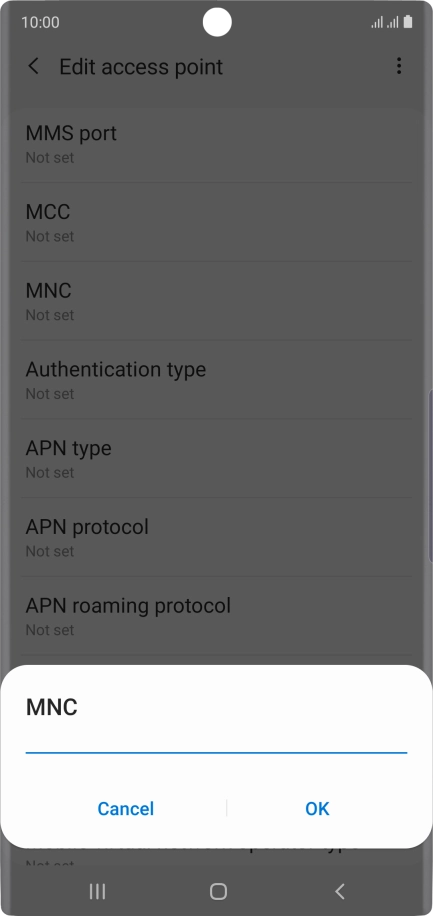

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cb774e21-1961-460e-aa1c-5c94eeba66bb.png?width=216&height=456)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5073ded7-d5ea-490c-a8e0-53dcbc6ac96d.png?width=216&height=456)

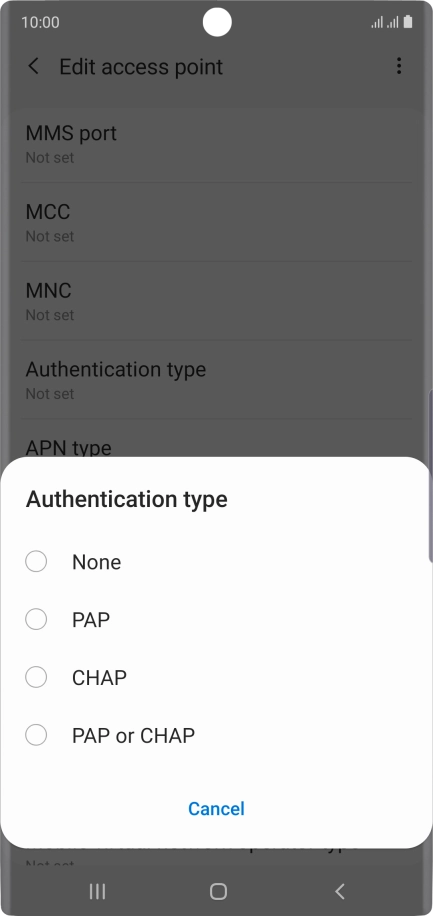

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-74127300-32f3-4562-9825-1b30a0df9545.png?width=216&height=456)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5073ded7-d5ea-490c-a8e0-53dcbc6ac96d.png?width=216&height=456)

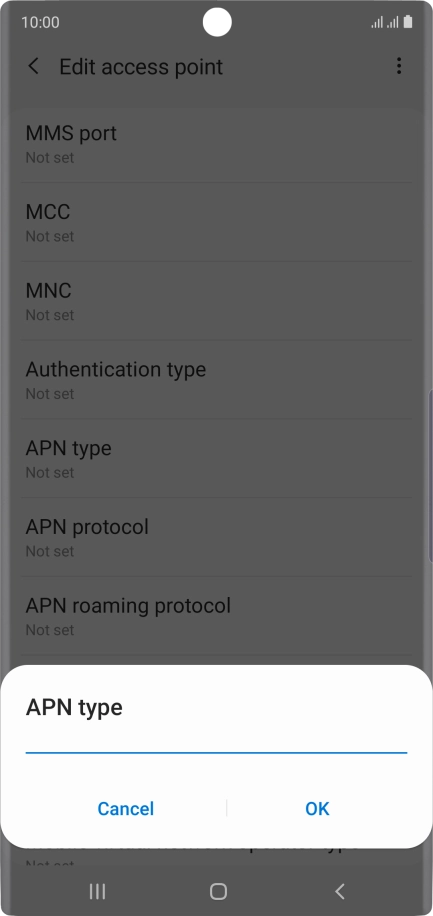

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-02efedee-b90b-4b67-9c7c-c7888cdd431e.png?width=216&height=456)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5073ded7-d5ea-490c-a8e0-53dcbc6ac96d.png?width=216&height=456)

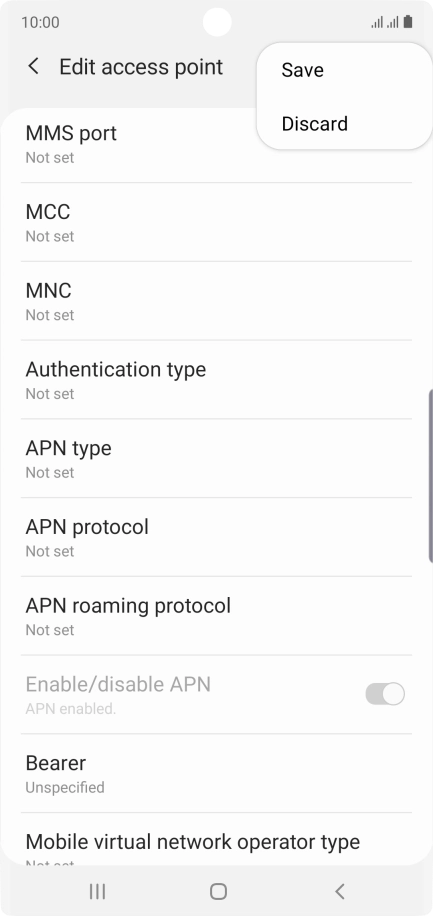

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3a335e81-2801-4ec4-b815-96510154536c.png?width=216&height=456)
12. Return to the home screen

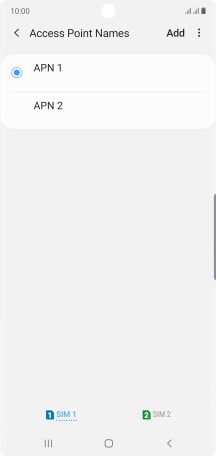

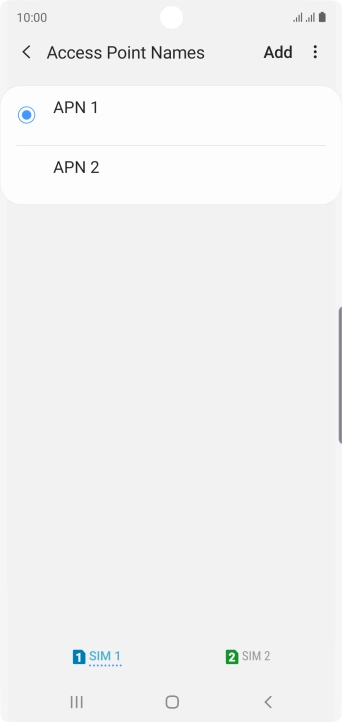

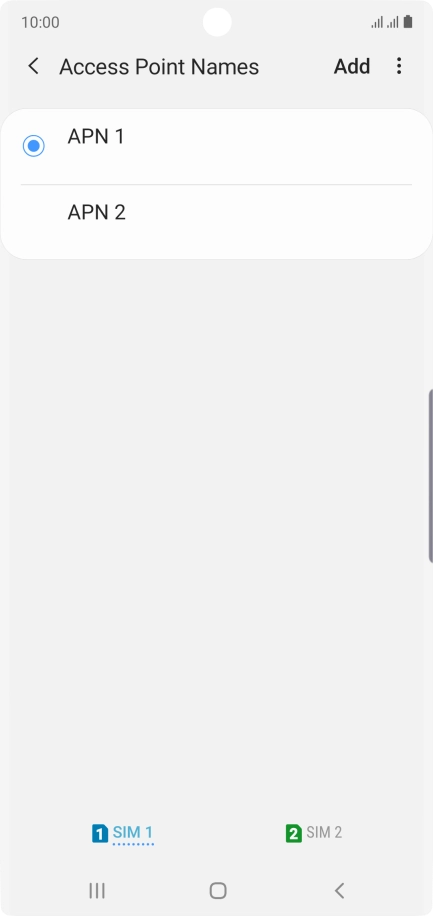

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-defae092-492f-4499-ac72-c47c97cf1d6b.png?width=216&height=456)
