Samsung Galaxy S10e

Samsung Galaxy S10e

Android 9.0

Set up your Samsung Galaxy S10e Android 9.0 for IMAP email

Read help info

You can set up your phone to send and receive email messages from your email accounts. Using IMAP, your email messages are kept on the server and are synchronised between all of your devices. You're then able to access your email messages from other devices. To set up your phone for IMAP email, you need to set up your phone for internet.

Step 1 of 44

1. Find "Accounts"

Slide your finger downwards starting from the top of the screen.

Step 2 of 44

1. Find "Accounts"

Press the settings icon.

Step 3 of 44

1. Find "Accounts"

Press Accounts and backup.

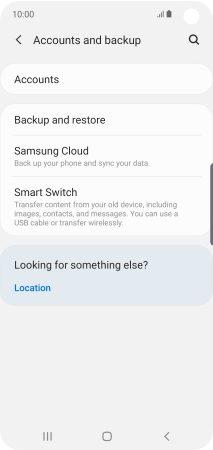

Step 4 of 44

1. Find "Accounts"

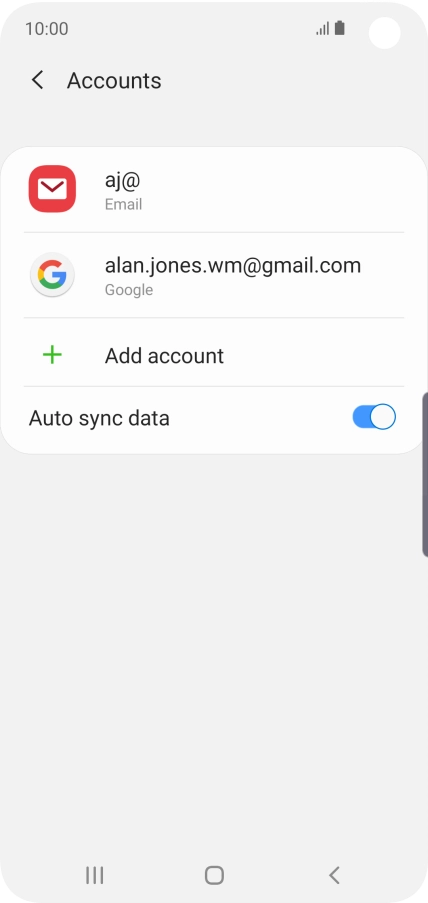

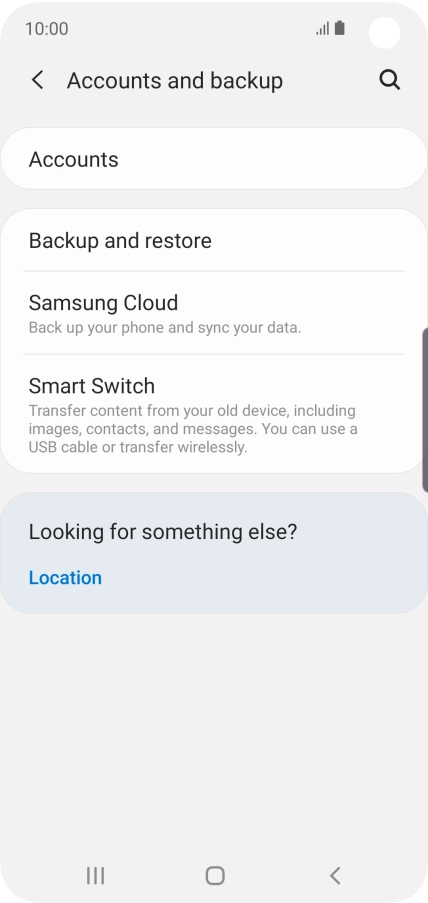

Press Accounts.

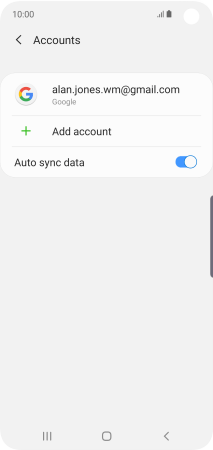

Step 5 of 44

2. Create new email account

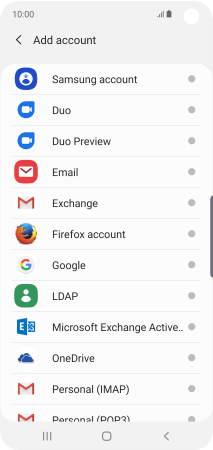

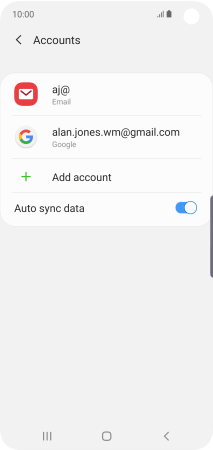

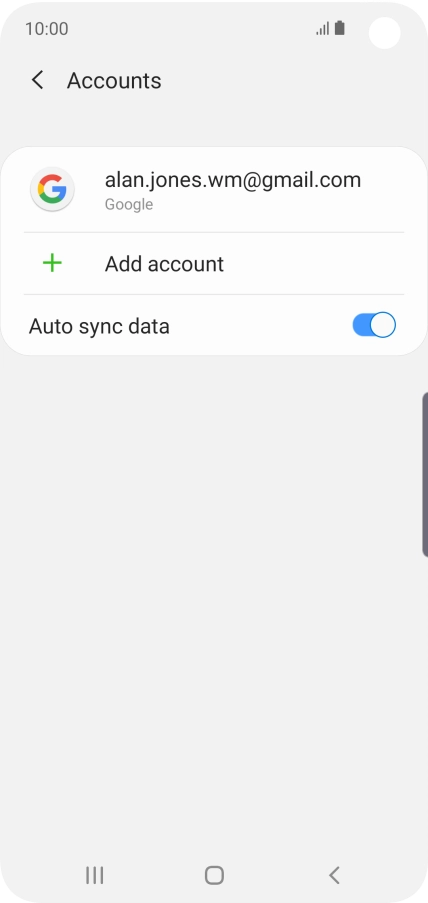

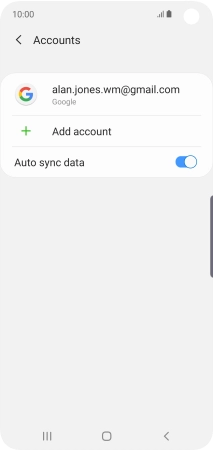

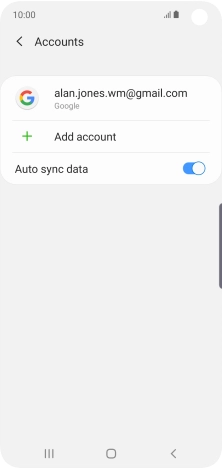

Press Add account.

Step 6 of 44

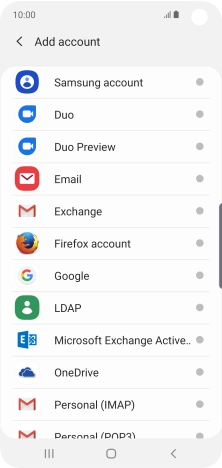

2. Create new email account

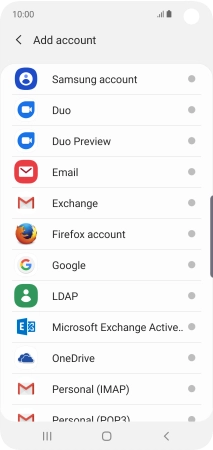

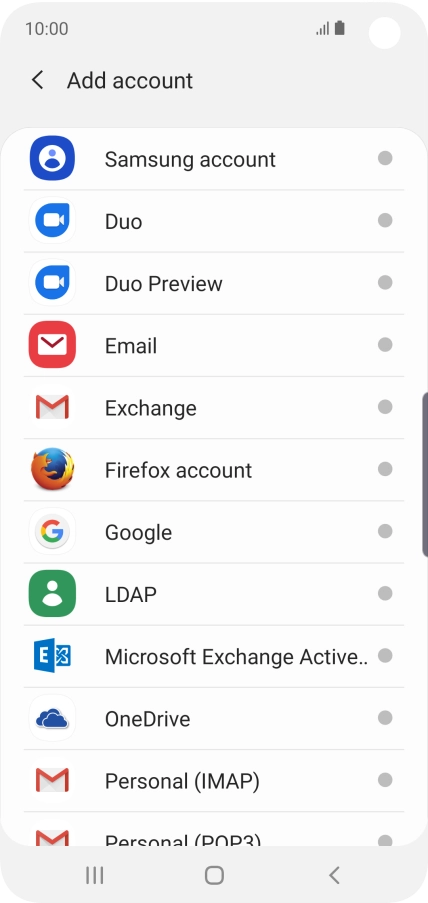

Press Email.

Step 7 of 44

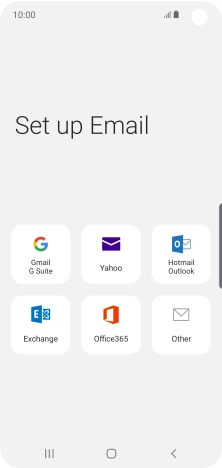

2. Create new email account

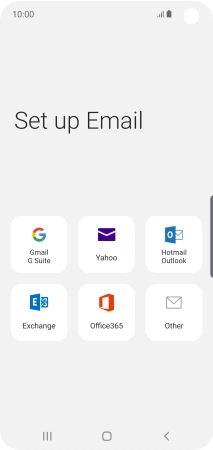

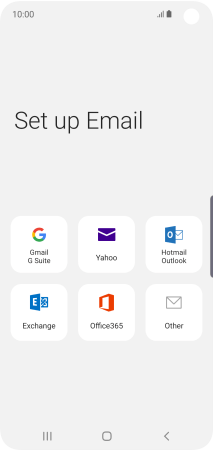

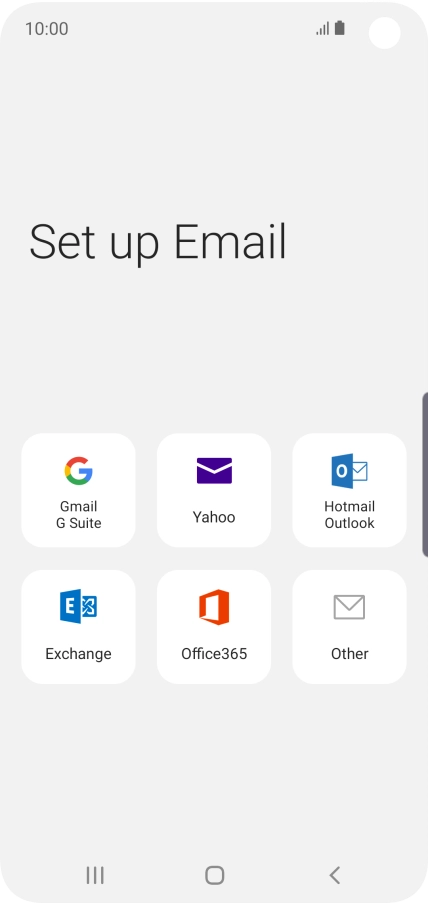

Press Other.

Step 8 of 44

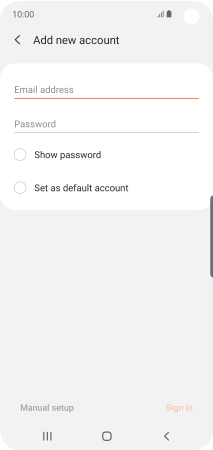

3. Enter email address

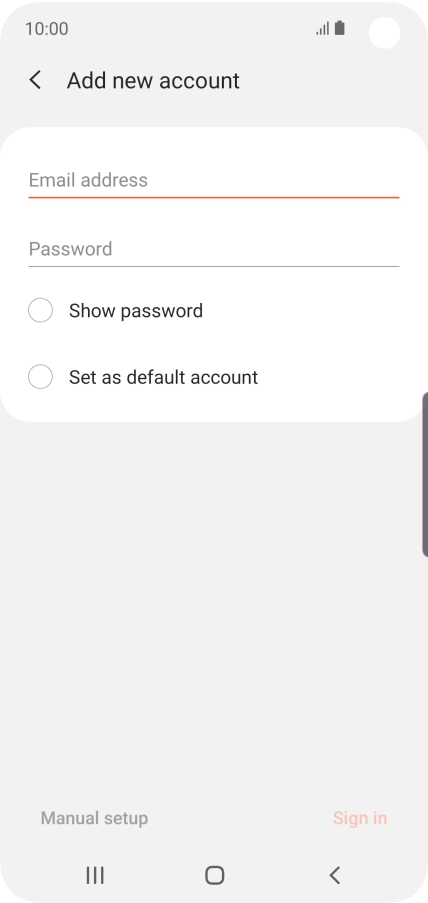

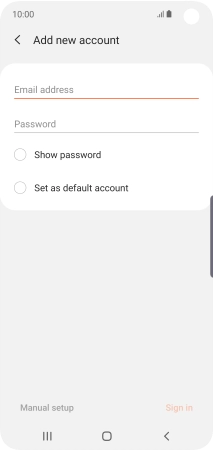

Press Email address and key in your email address.

Step 9 of 44

4. Enter password

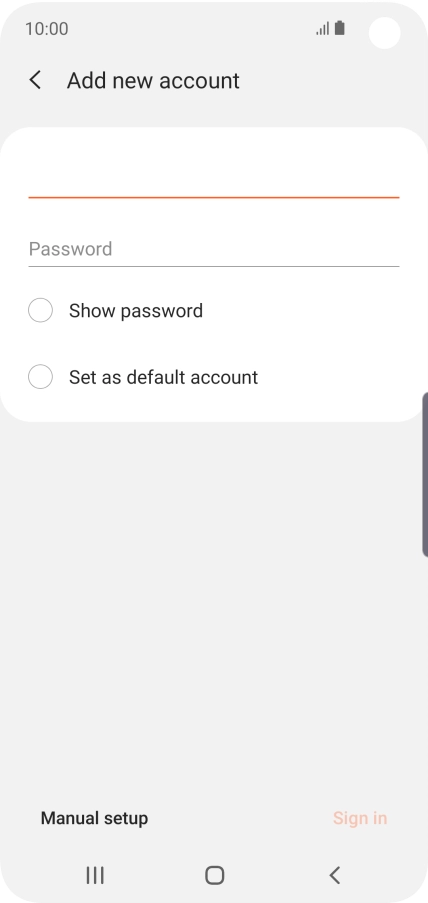

Press Password and key in the password for your email account.

Step 10 of 44

4. Enter password

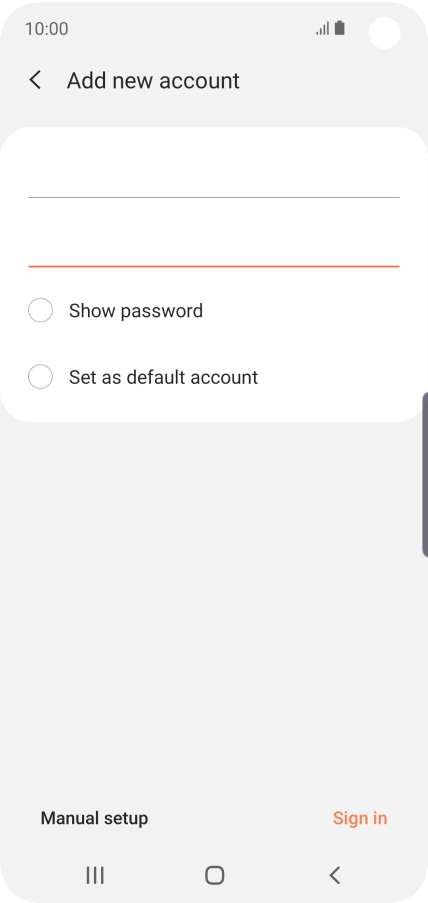

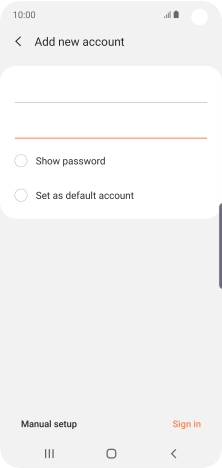

Press Sign in.

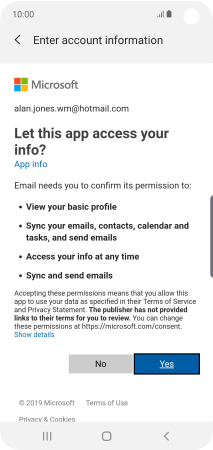

Step 11 of 44

4. Enter password

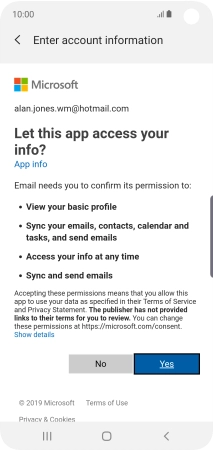

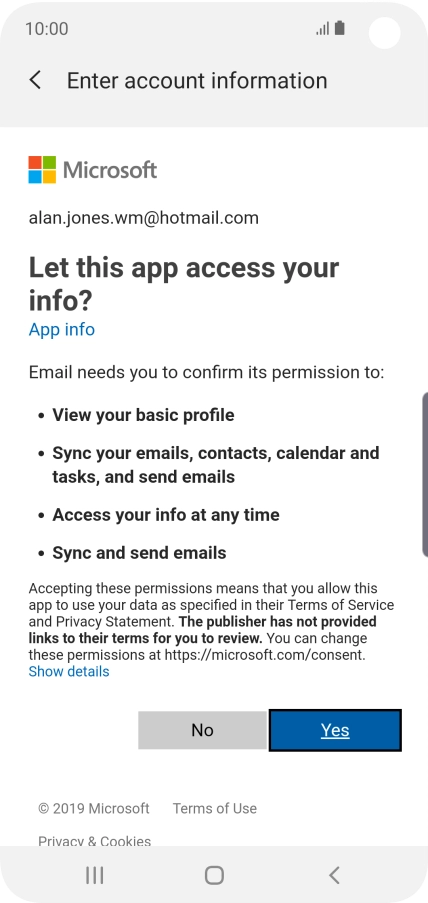

If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

Step 12 of 44

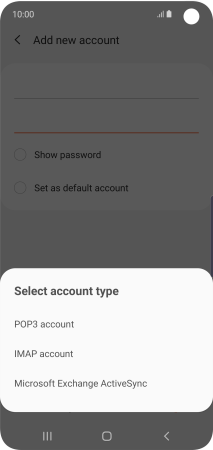

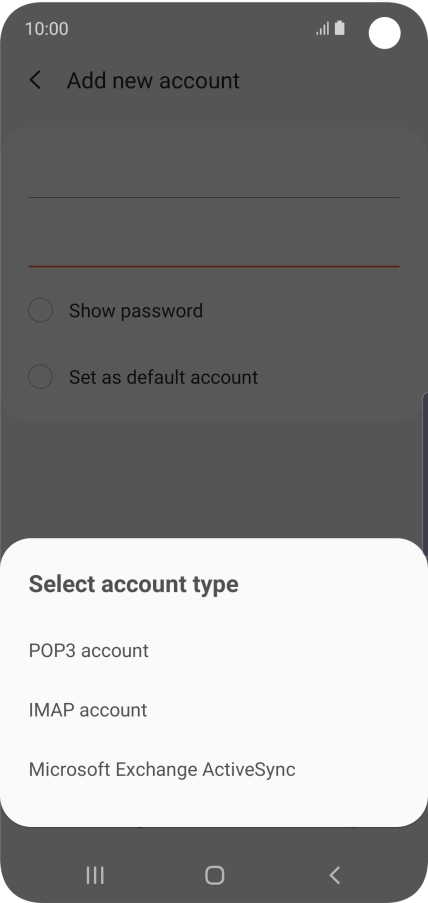

5. Select server type

Press IMAP account.

Step 13 of 44

6. Enter username

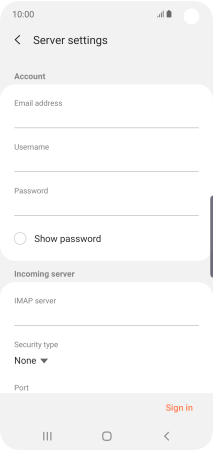

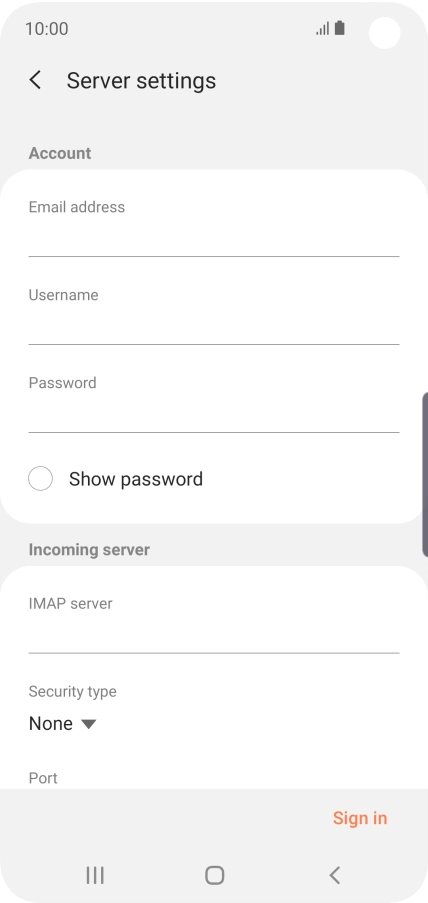

Press the field below "Username" and key in the username for your email account.

Step 14 of 44

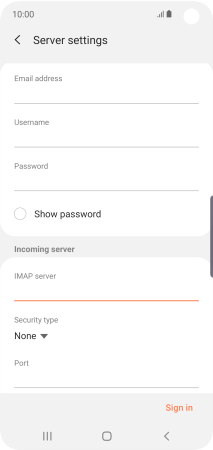

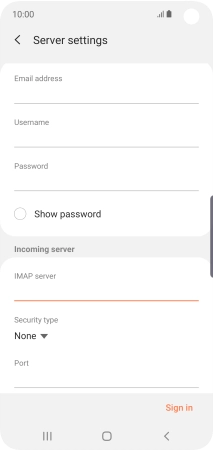

7. Enter incoming server

Press the field below "IMAP server" and key in the name of your email provider's incoming server.

Step 15 of 44

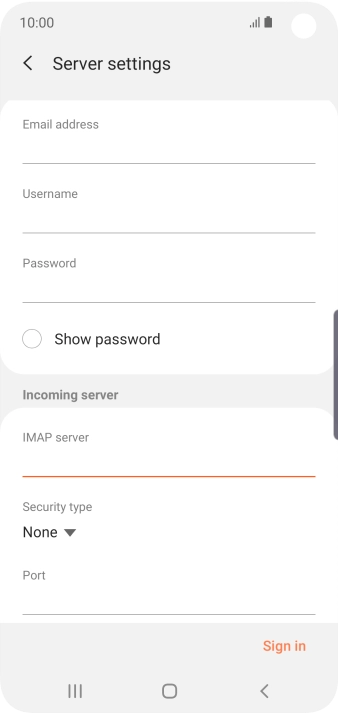

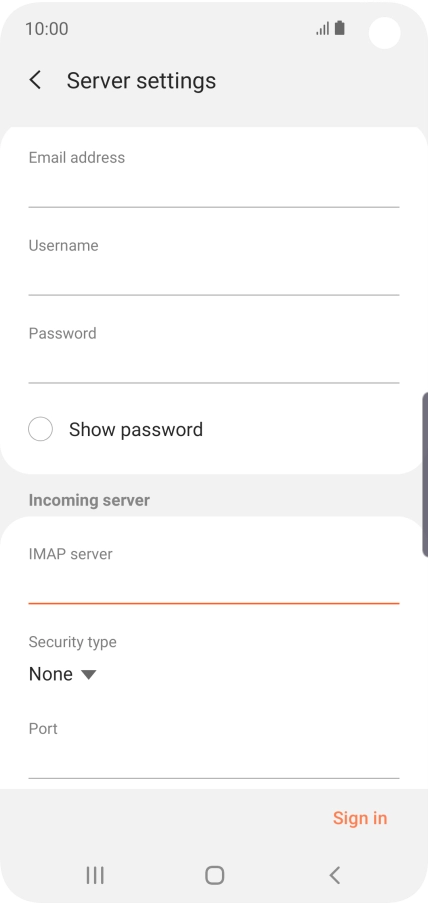

8. Turn off encryption of incoming email messages

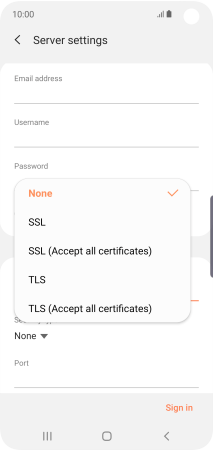

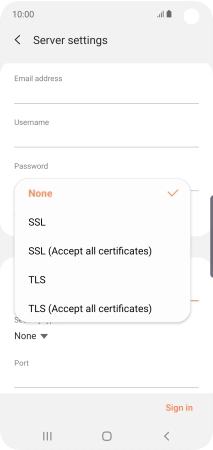

Press the drop down list below "Security type".

Step 16 of 44

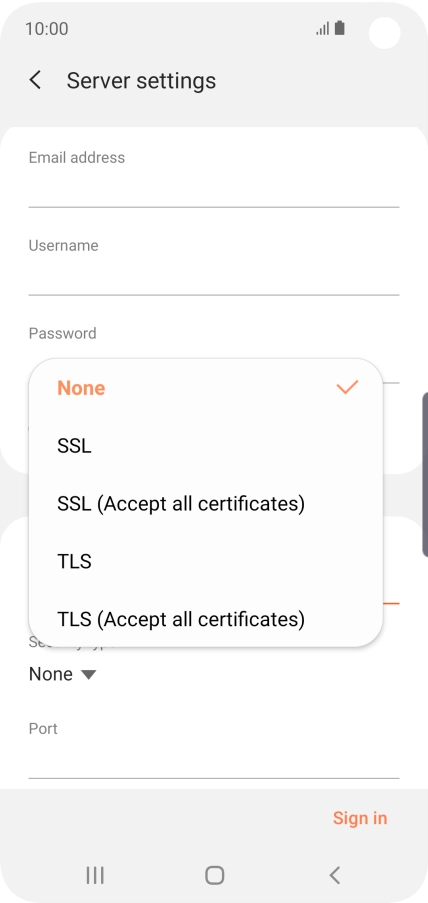

8. Turn off encryption of incoming email messages

Press None to turn off the function.

143
Step 17 of 44

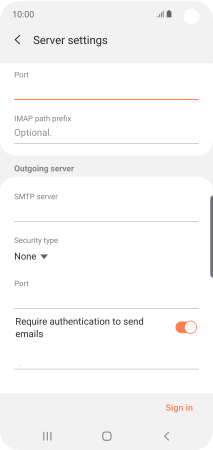

9. Enter incoming port

Press the field below "Port" and key in 143.

smtp.vodafone.net.au
Step 18 of 44

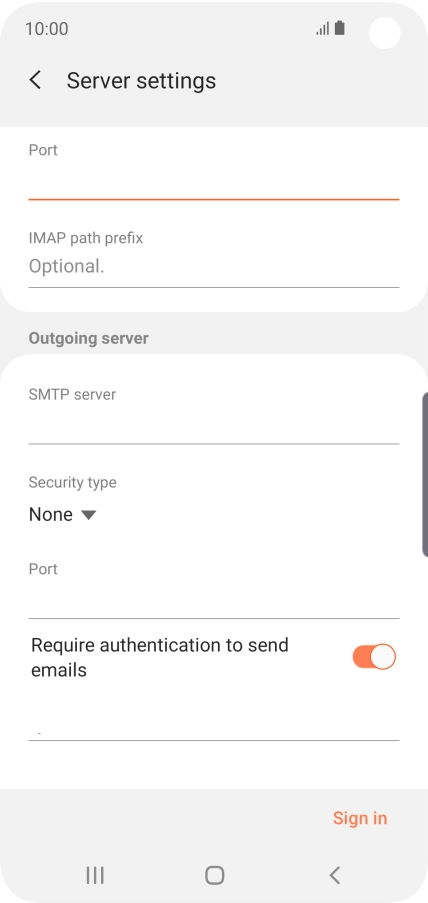

10. Enter outgoing server

Press the field below "SMTP server" and key in the name or IP address of your email provider's outgoing server. Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 19 of 44

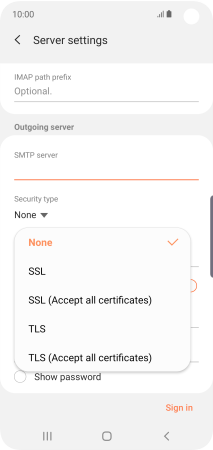

11. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".

Step 20 of 44

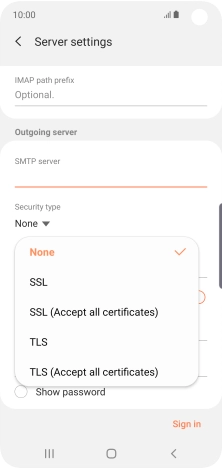

11. Turn off encryption of outgoing email messages

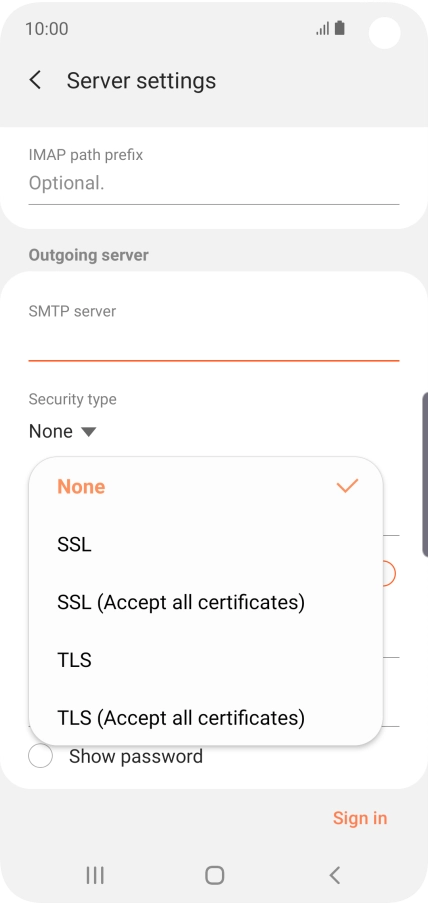

Press None to turn off the function.

25
Step 21 of 44

12. Enter outgoing port

Press the field below "Port" and key in 25.

Step 22 of 44

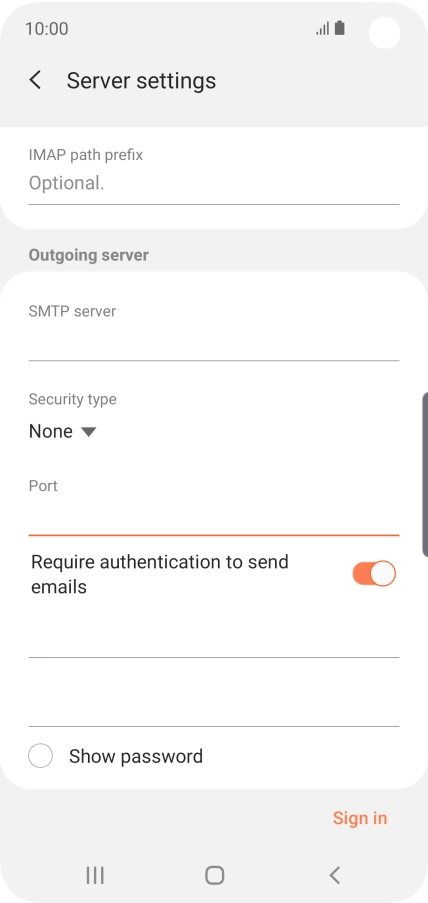

13. Turn SMTP authentication on or off

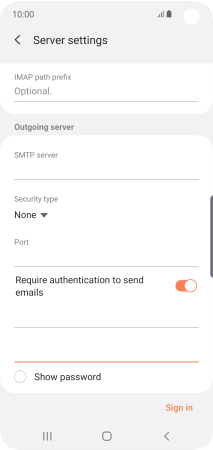

Press the indicator next to "Require authentication to send emails" to turn the function on or off. Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.

Step 23 of 44

13. Turn SMTP authentication on or off

Press the username field and key in the username for your email provider's outgoing server.

Step 24 of 44

13. Turn SMTP authentication on or off

Press the password field and key in the password for your email provider's outgoing server.

Step 25 of 44

13. Turn SMTP authentication on or off

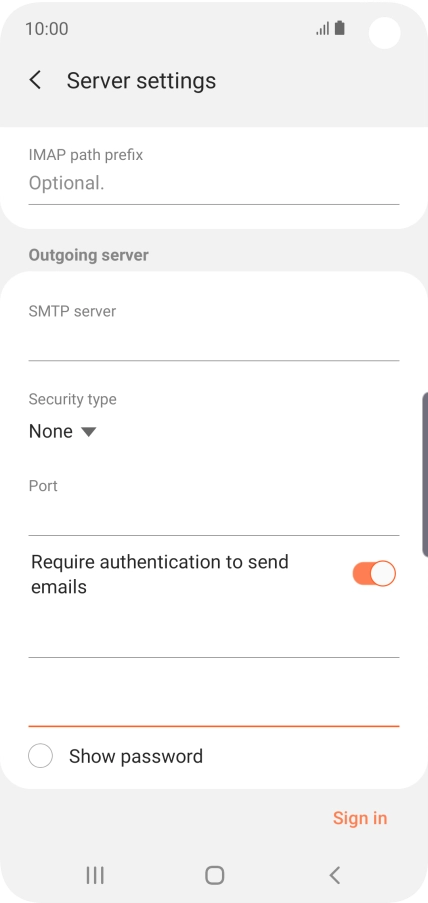

Press Sign in.

Step 26 of 44

14. Return to the home screen

Press the Home key to return to the home screen.

Step 27 of 44

15. Find "Email"

Slide your finger upwards on the screen.

Step 28 of 44

15. Find "Email"

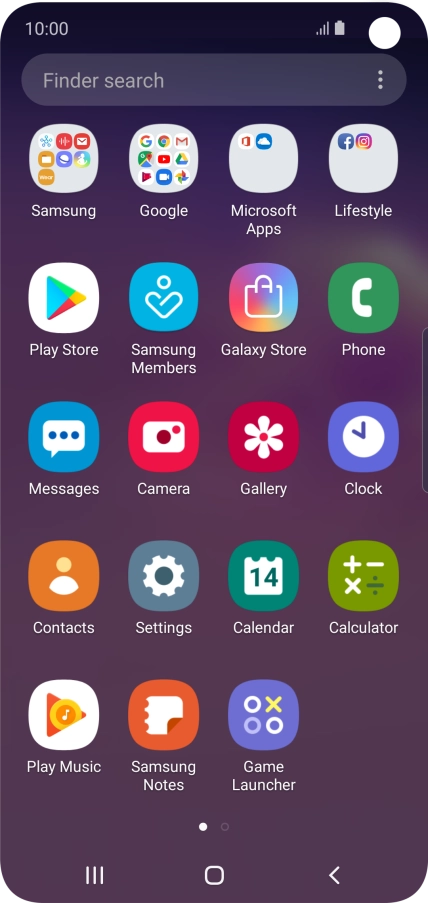

Press Samsung.

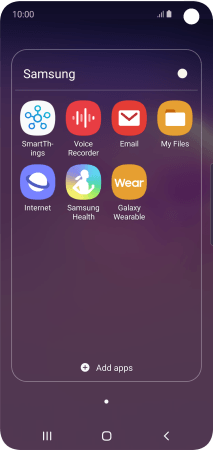

Step 29 of 44

15. Find "Email"

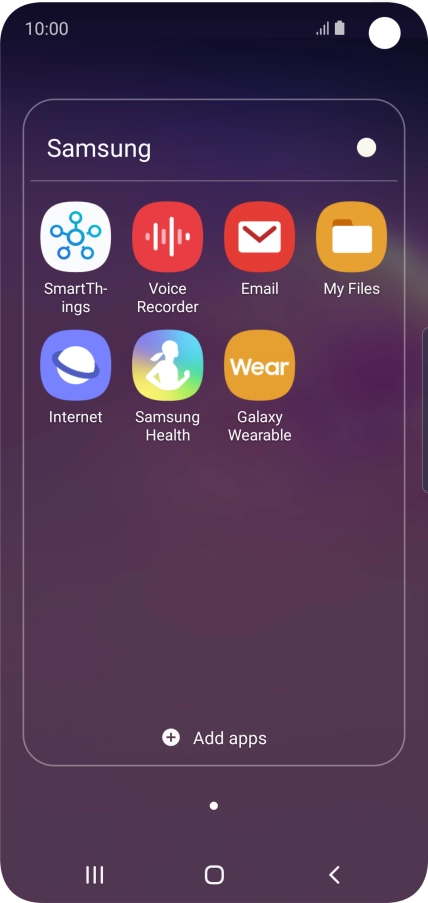

Press Email.

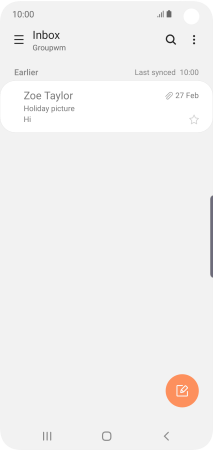

Step 30 of 44

16. Turn email message notifications on or off

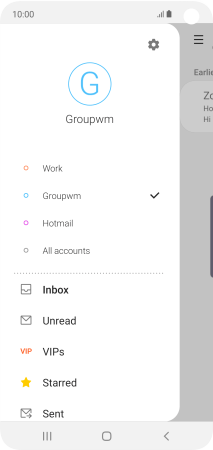

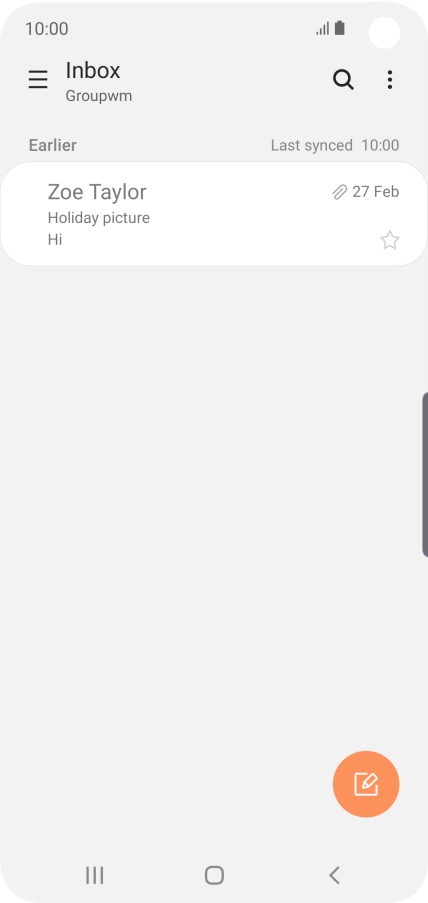

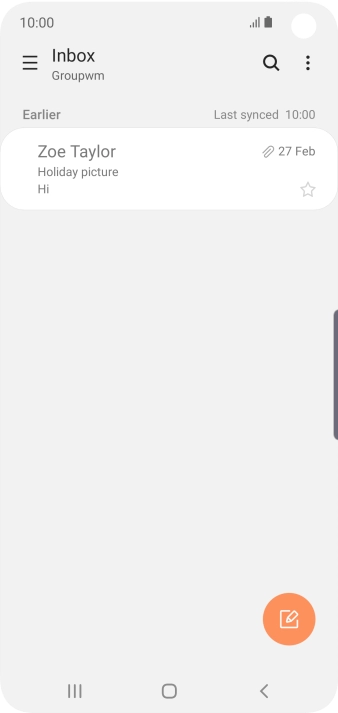

Slide your finger right starting from the left side of the screen.

Step 31 of 44

16. Turn email message notifications on or off

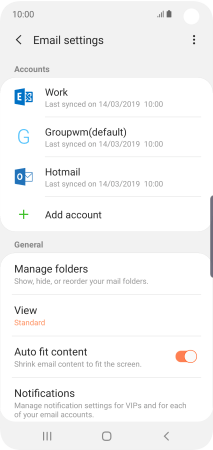

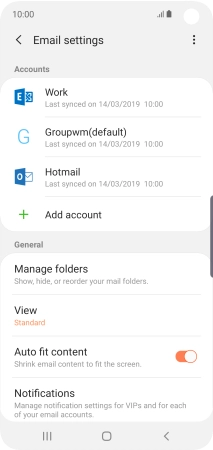

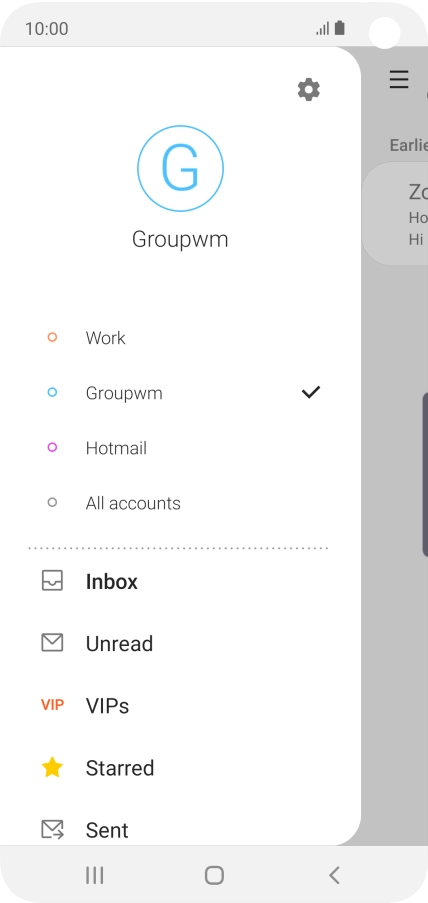

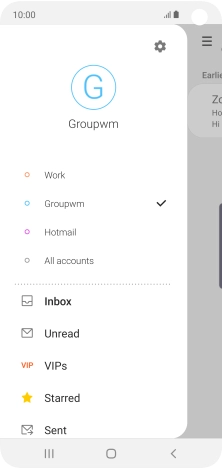

Press the settings icon.

Step 32 of 44

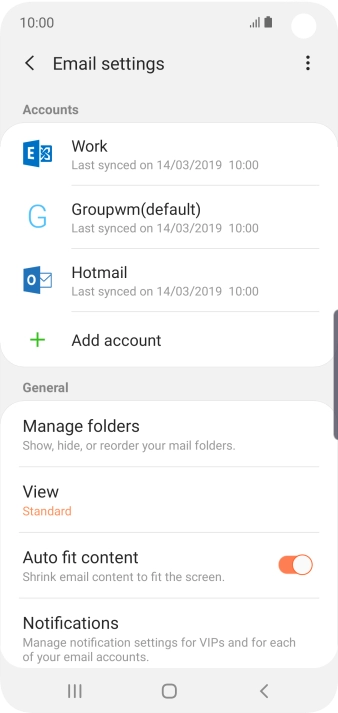

16. Turn email message notifications on or off

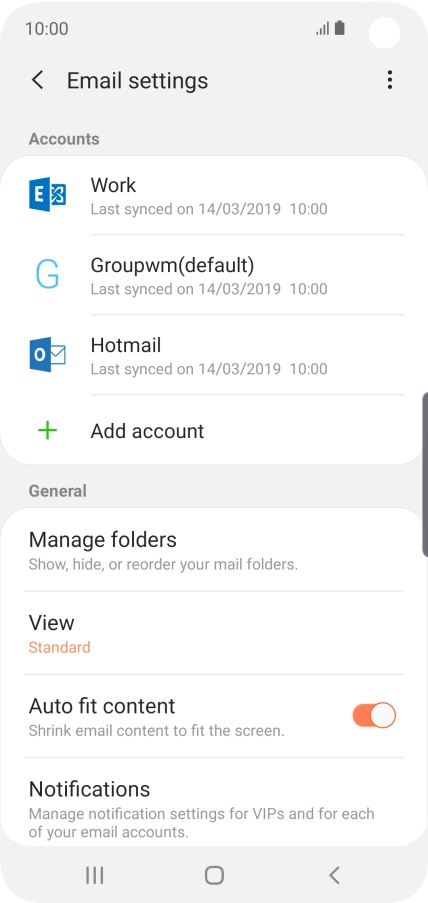

Press Notifications.

Step 33 of 44

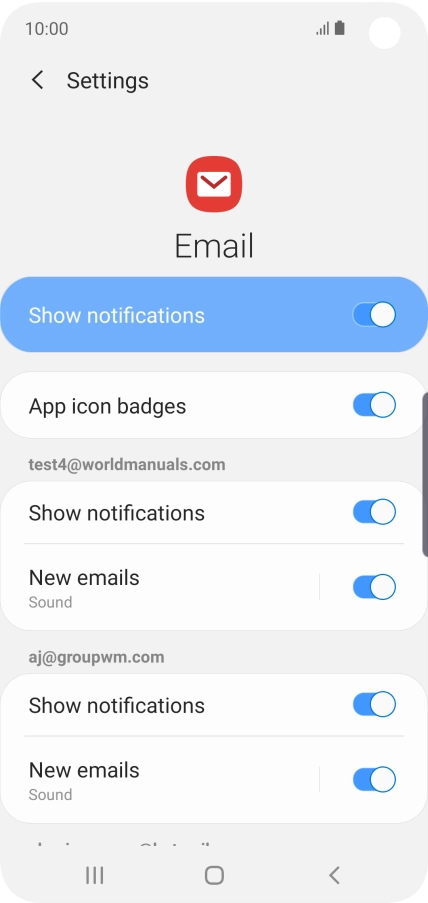

16. Turn email message notifications on or off

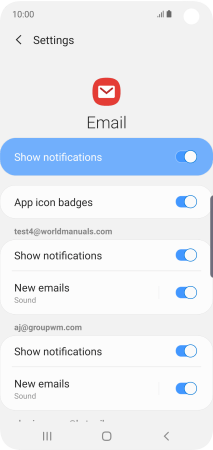

Press the indicator next to "Show notifications" below the required email account to turn the function on or off.

Step 34 of 44

16. Turn email message notifications on or off

Press the Return key.

Step 35 of 44

17. Turn on email message synchronisation

Press the required account.

Step 36 of 44

17. Turn on email message synchronisation

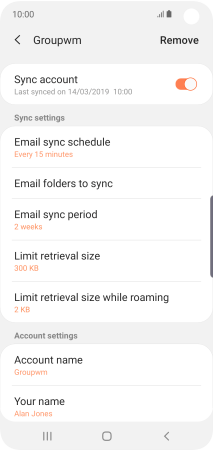

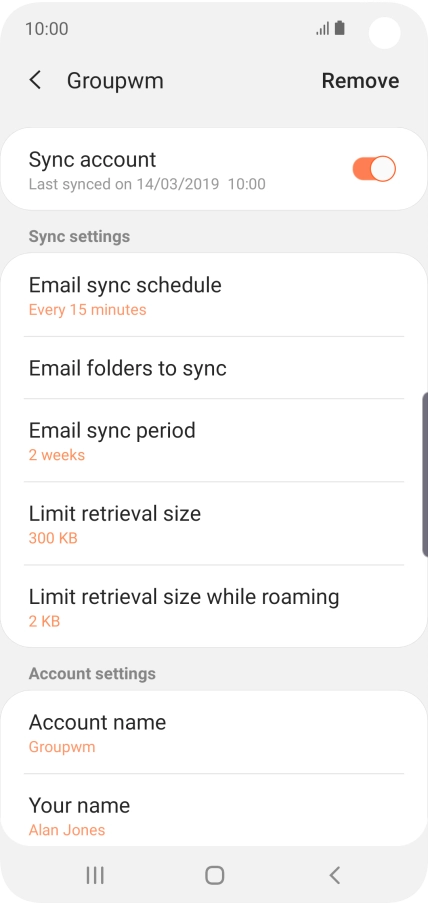

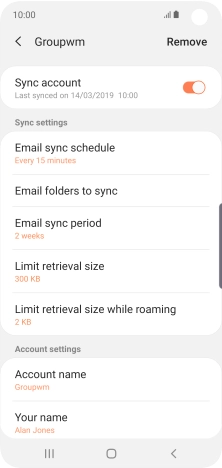

Press the indicator next to "Sync account" to turn on the function.

Step 37 of 44

18. Enter email account name

Press Account name.

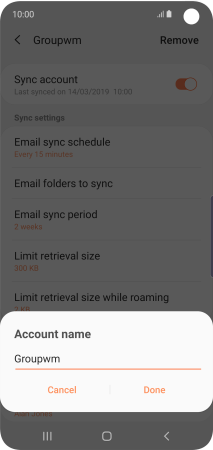

Step 38 of 44

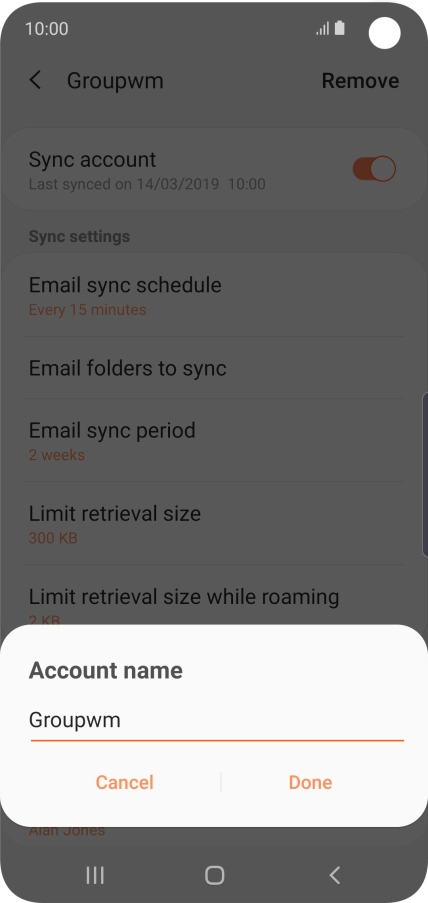

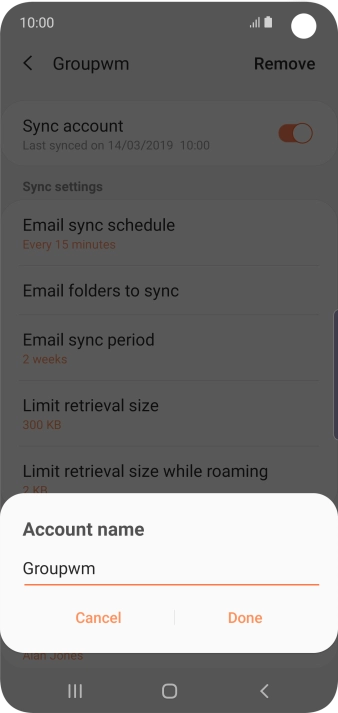

18. Enter email account name

Key in the required name for the email account and press Done.

Step 39 of 44

19. Enter sender name

Press Your name.

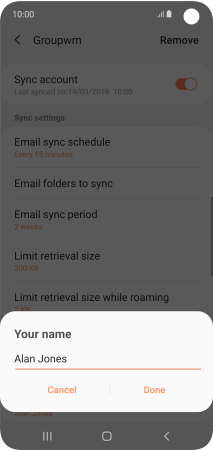

Step 40 of 44

19. Enter sender name

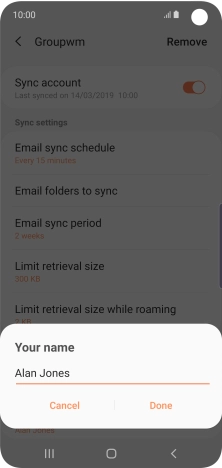

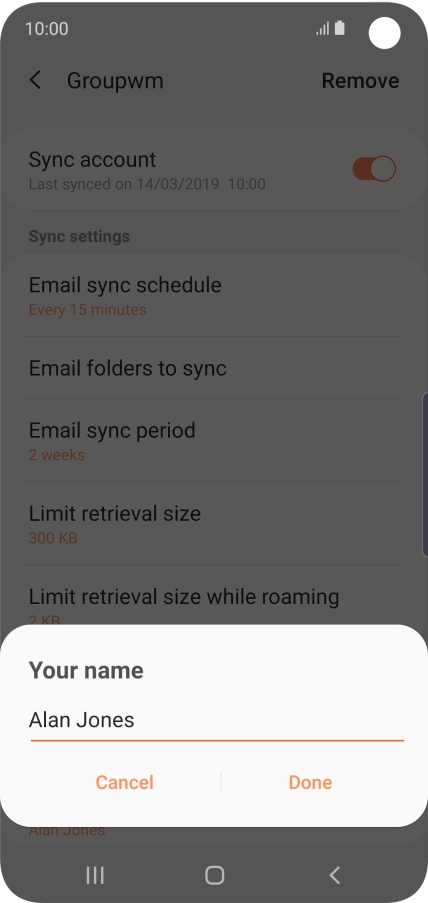

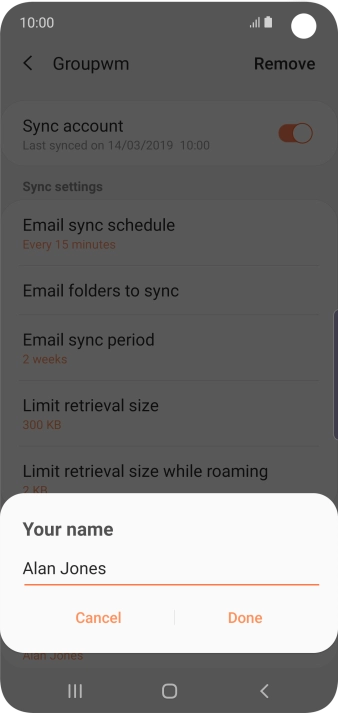

Key in the required sender name and press Done.

Step 41 of 44

20. Select settings for retrieval of new email messages

Press Email sync schedule.

Step 42 of 44

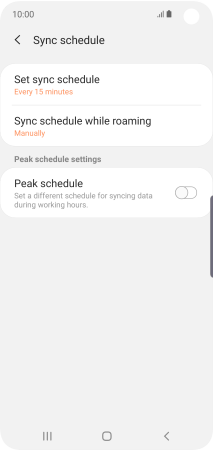

20. Select settings for retrieval of new email messages

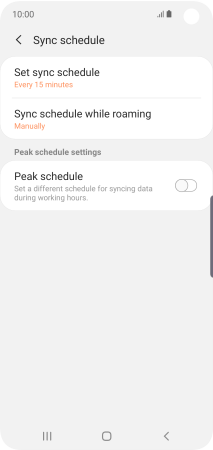

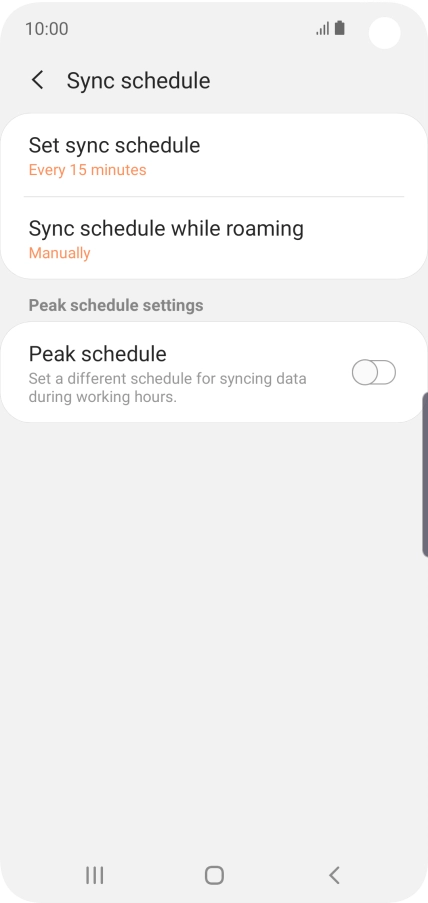

Press Set sync schedule.

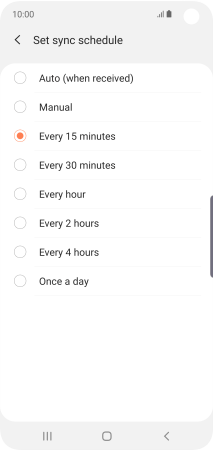

Step 43 of 44

20. Select settings for retrieval of new email messages

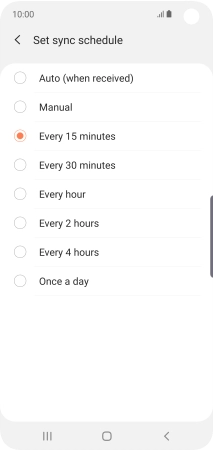

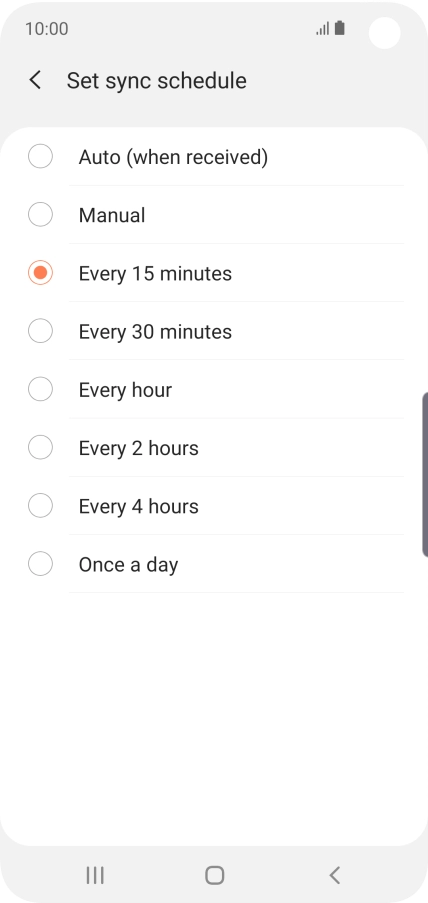

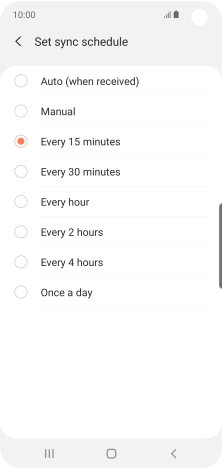

Press the required setting.

Step 44 of 44

21. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Accounts"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Accounts and backup.
Press Accounts.

2. Create new email account

Press Add account.
Press Email.
Press Other.

3. Enter email address

Press Email address and key in your email address.

4. Enter password

Press Password and key in the password for your email account.
Press Sign in.
If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

5. Select server type

Press IMAP account.

6. Enter username

Press the field below "Username" and key in the username for your email account.

7. Enter incoming server

Press the field below "IMAP server" and key in the name of your email provider's incoming server.

8. Turn off encryption of incoming email messages

Press the drop down list below "Security type".
Press None to turn off the function.

9. Enter incoming port

Press the field below "Port" and key in 143.
143

10. Enter outgoing server

Press the field below "SMTP server" and key in the name or IP address of your email provider's outgoing server. Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).
smtp.vodafone.net.au

11. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".
Press None to turn off the function.

12. Enter outgoing port

Press the field below "Port" and key in 25.
25

13. Turn SMTP authentication on or off

Press the indicator next to "Require authentication to send emails" to turn the function on or off. Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press the username field and key in the username for your email provider's outgoing server.
Press the password field and key in the password for your email provider's outgoing server.
Press Sign in.

14. Return to the home screen

Press the Home key to return to the home screen.

15. Find "Email"

Slide your finger upwards on the screen.
Press Samsung.
Press Email.

16. Turn email message notifications on or off

Slide your finger right starting from the left side of the screen.
Press the settings icon.
Press Notifications.
Press the indicator next to "Show notifications" below the required email account to turn the function on or off.
Press the Return key.

17. Turn on email message synchronisation

Press the required account.
Press the indicator next to "Sync account" to turn on the function.

18. Enter email account name

Press Account name.
Key in the required name for the email account and press Done.

19. Enter sender name

Press Your name.
Key in the required sender name and press Done.

20. Select settings for retrieval of new email messages

Press Email sync schedule.
Press Set sync schedule.
Press the required setting.

21. Return to the home screen

Press the Home key to return to the home screen.
