1. Find "Access Point Names"

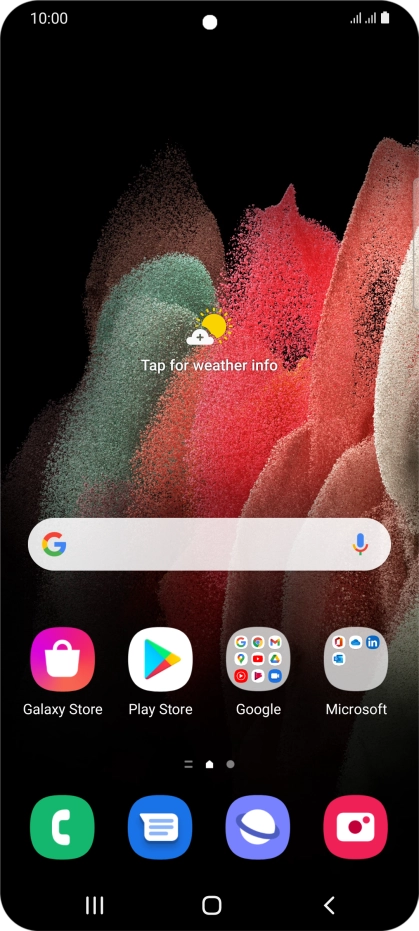

Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b046ae34-0c83-43a5-a7fe-d4a9539ce1cc.png?width=210&height=466)

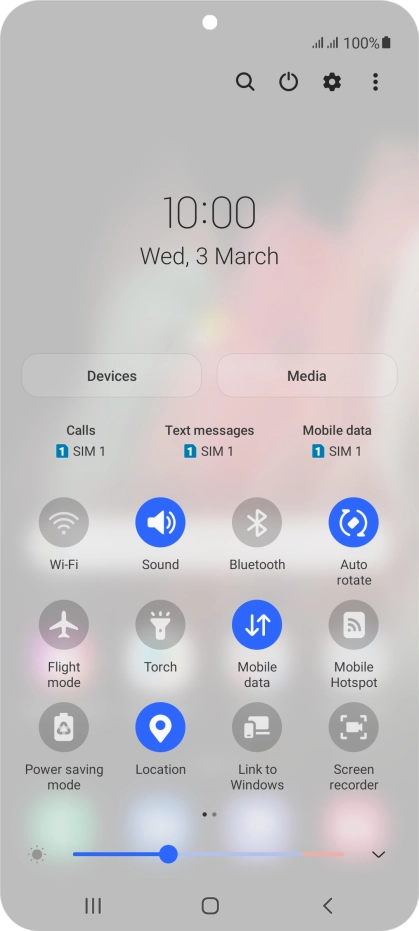

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3ac35714-e62f-4d66-837a-4ea3e6c9326f.png?width=210&height=466)

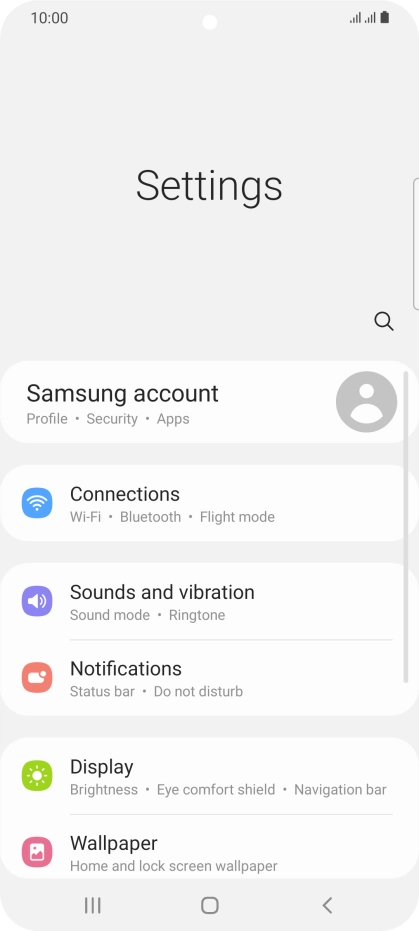

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8b8c163e-b3c2-49f0-ae42-f33f8069b5c2.png?width=210&height=466)

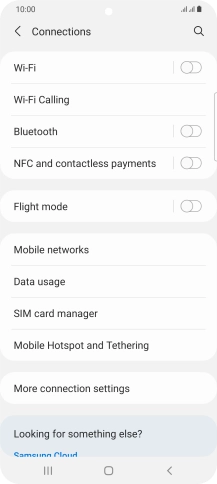

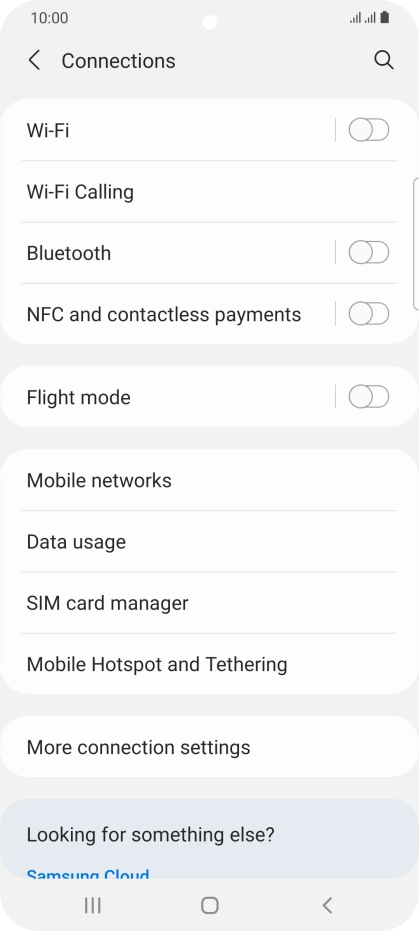

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-bdf734f9-504a-47e0-abfa-a8d45e93ca15.png?width=210&height=466)

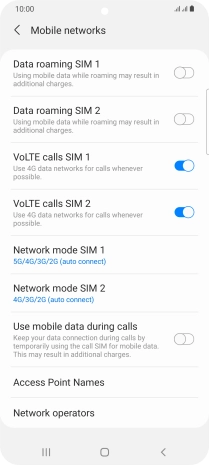

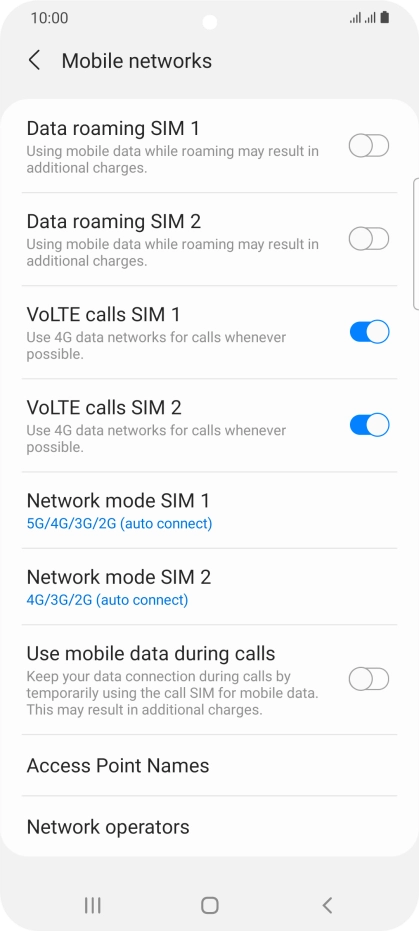

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-db2acb50-5397-43b6-a28c-b5a244f692a3.png?width=210&height=466)
2. Create new data connection

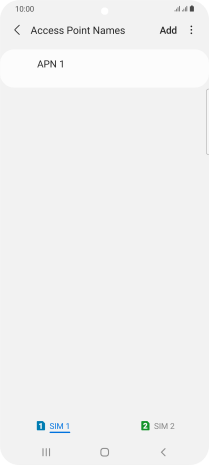

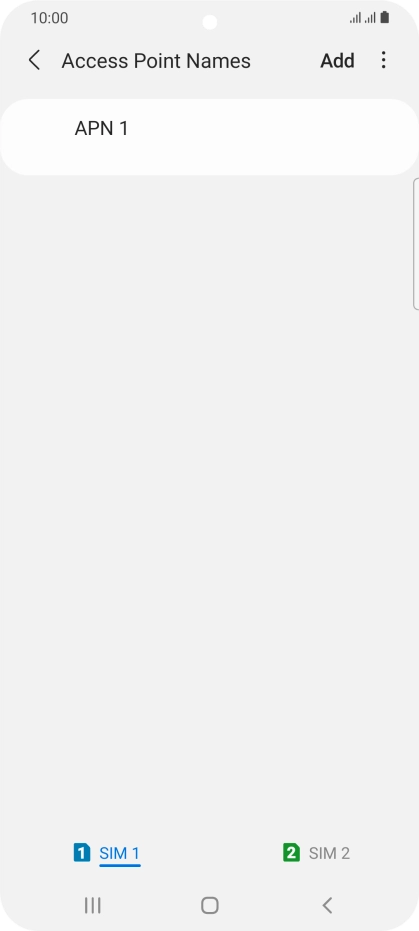

Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9c881d51-e23b-4267-8d8a-579e806059d4.png?width=210&height=466)
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9c881d51-e23b-4267-8d8a-579e806059d4.png?width=210&height=466)

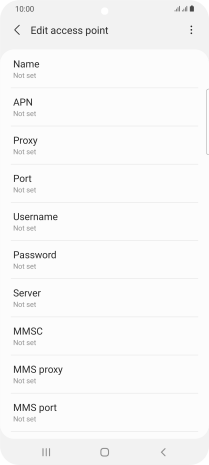

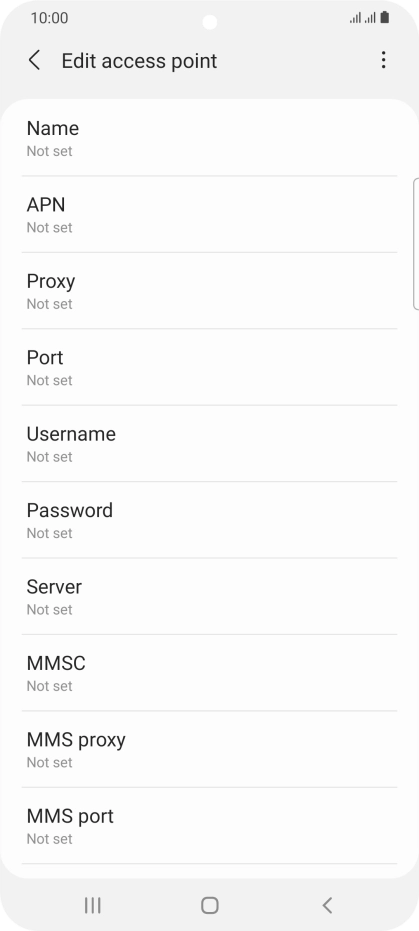

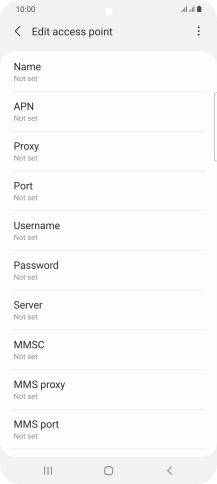

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7ac42f39-3354-4bec-936a-76b0c6cbd42d.png?width=210&height=466)

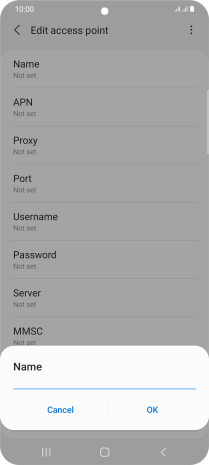

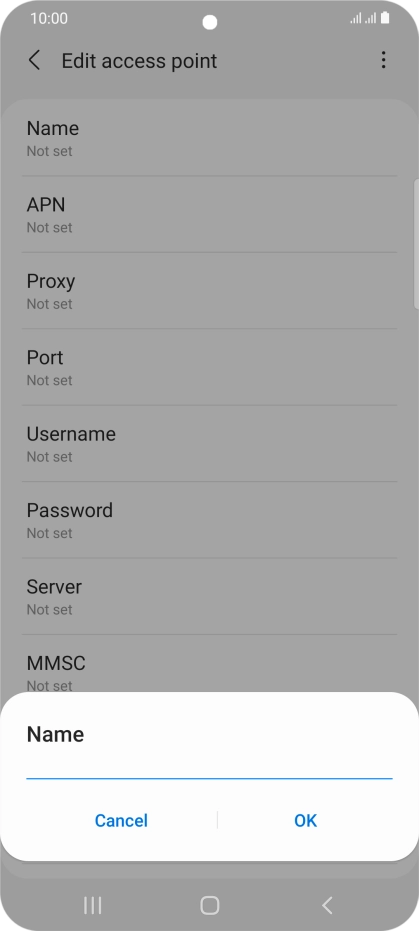

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-03404ccc-d951-4b3b-ab0a-23ef86892ae0.png?width=210&height=466)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7ac42f39-3354-4bec-936a-76b0c6cbd42d.png?width=210&height=466)

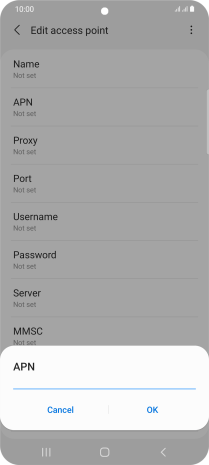

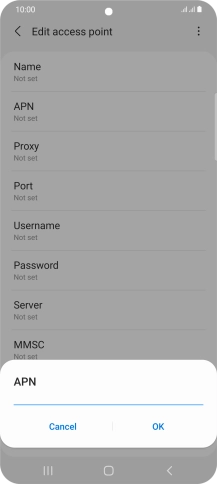

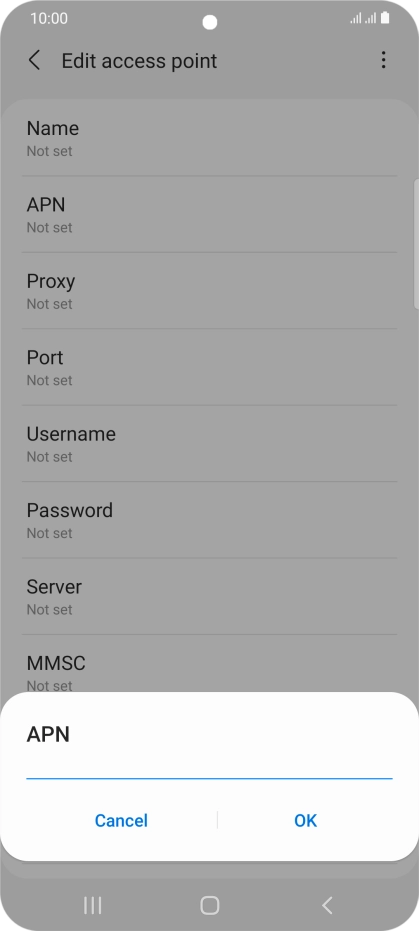

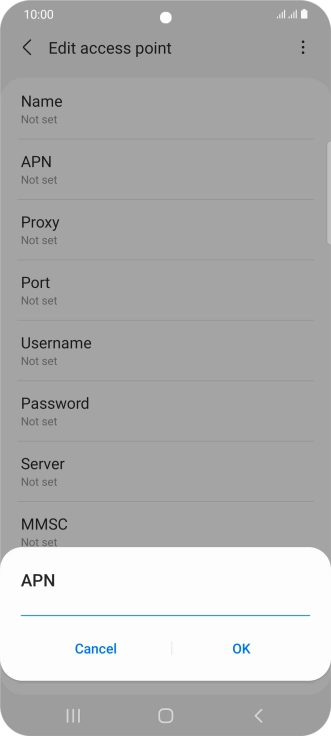

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-93a92baa-ecc9-4a62-b4e0-fb7e67d8250b.png?width=210&height=466)
live.vodafone.com
4. Enter country code

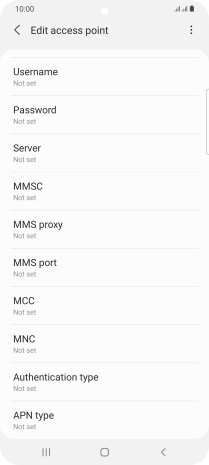

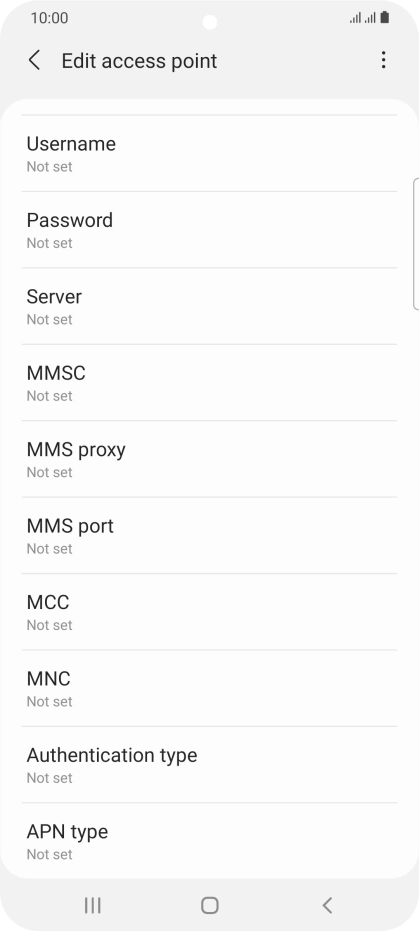

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6666a52e-5961-41c4-a38c-98372c8ff004.png?width=210&height=466)

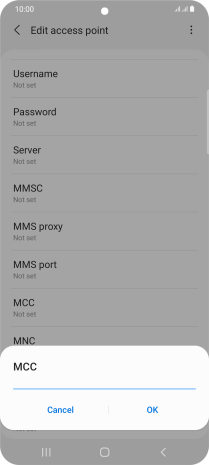

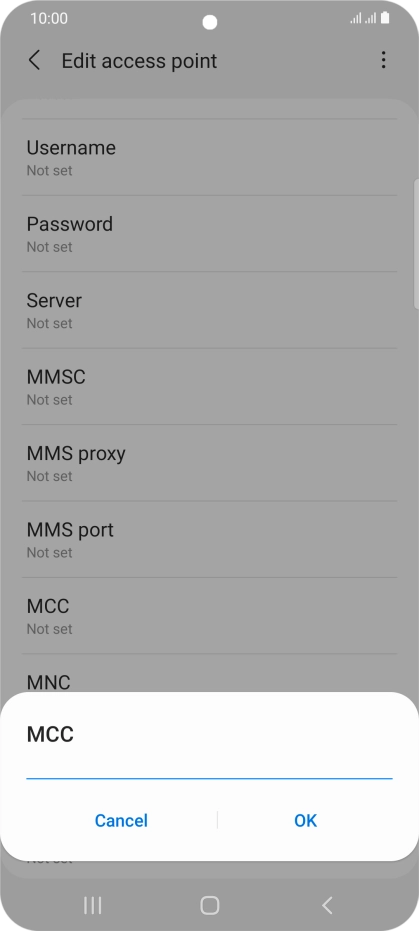

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c7fce54b-373e-4ff5-8522-047fc046ca15.png?width=210&height=466)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6666a52e-5961-41c4-a38c-98372c8ff004.png?width=210&height=466)

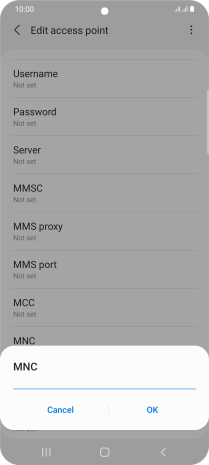

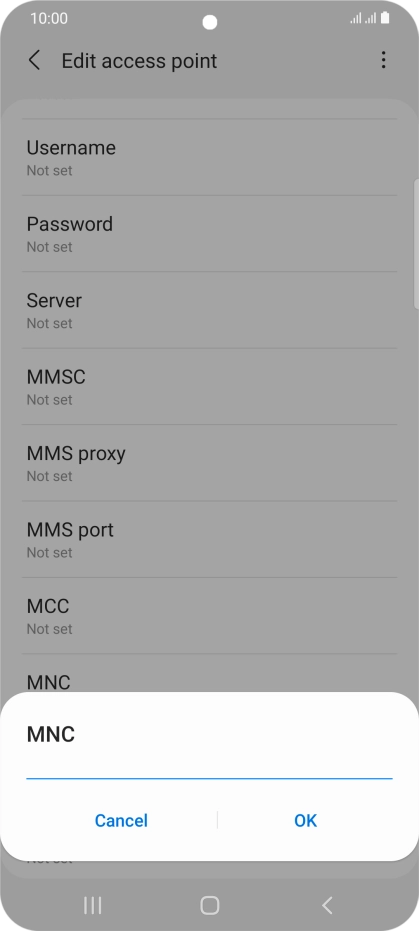

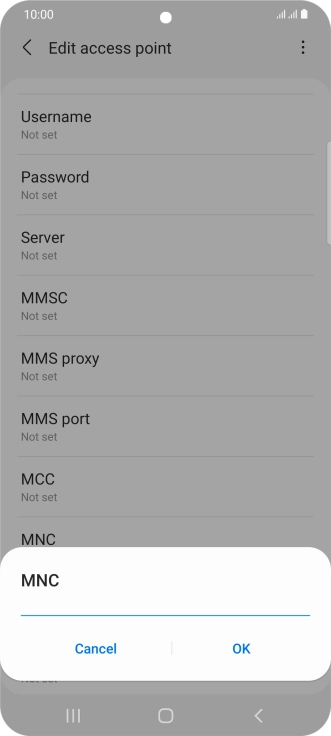

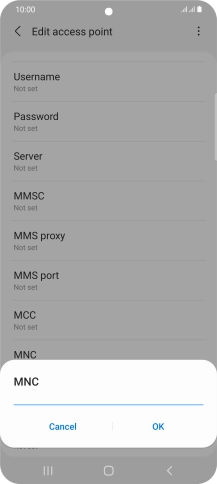

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f4586482-2380-4551-8b63-ac4c0d905dee.png?width=210&height=466)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6666a52e-5961-41c4-a38c-98372c8ff004.png?width=210&height=466)

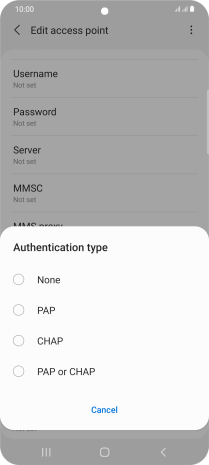

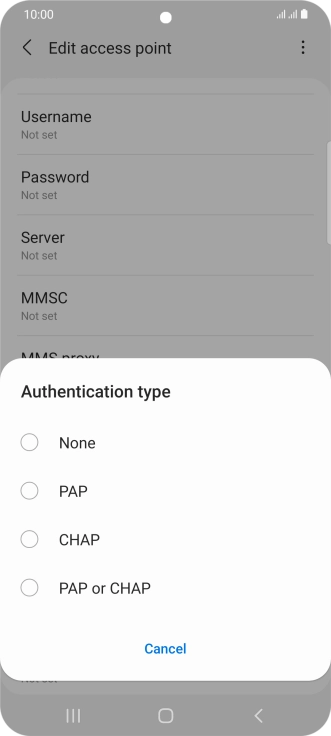

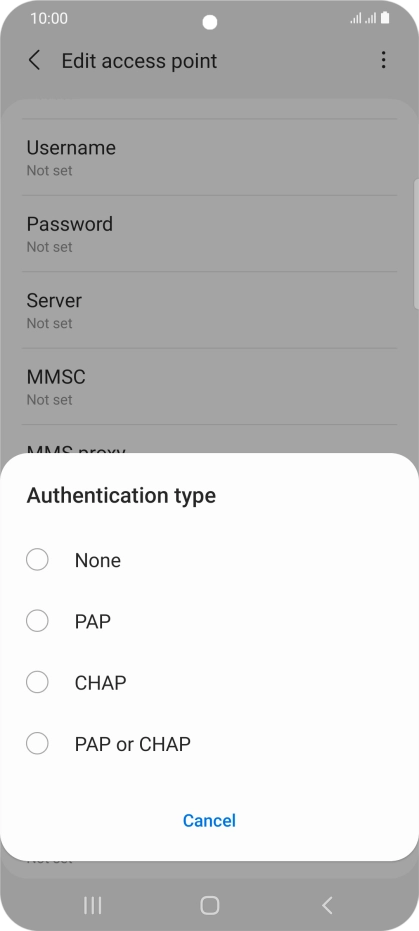

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7725d43c-72c1-460c-afaa-11d84485a358.png?width=210&height=466)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6666a52e-5961-41c4-a38c-98372c8ff004.png?width=210&height=466)

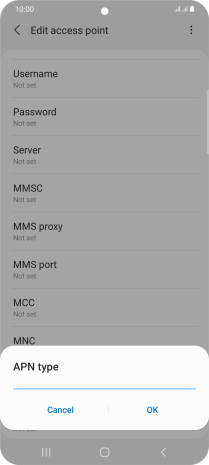

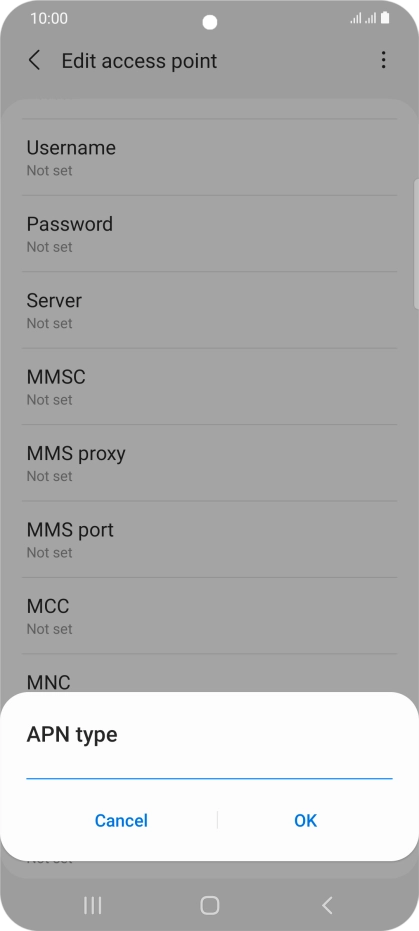

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d3cc824f-4c64-41e5-b5e6-52c3502bf351.png?width=210&height=466)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6666a52e-5961-41c4-a38c-98372c8ff004.png?width=210&height=466)

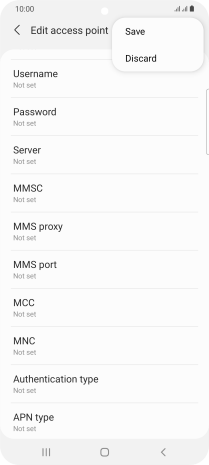

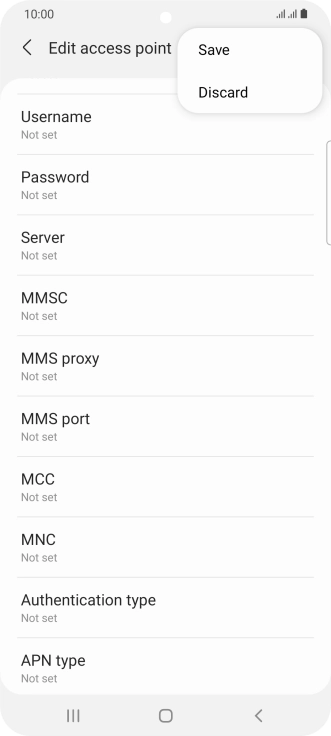

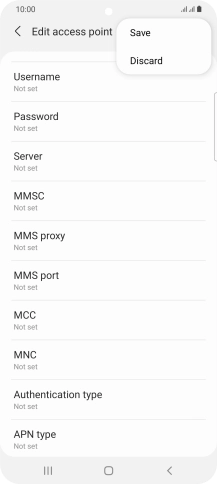

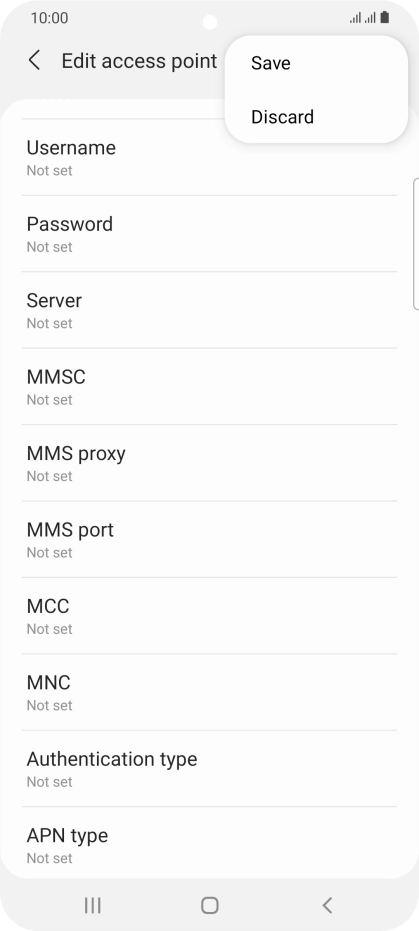

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a4ec0a72-dc97-4521-bd4c-9de7b5bf1368.png?width=210&height=466)

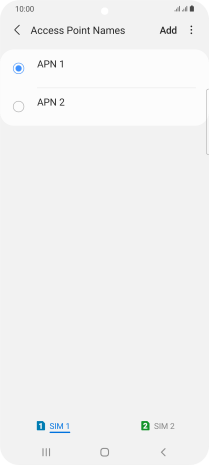

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ce46317d-4d31-42b9-8bb1-875d1b2c2559.png?width=210&height=466)
9. Return to the home screen

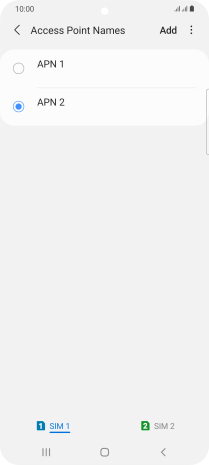

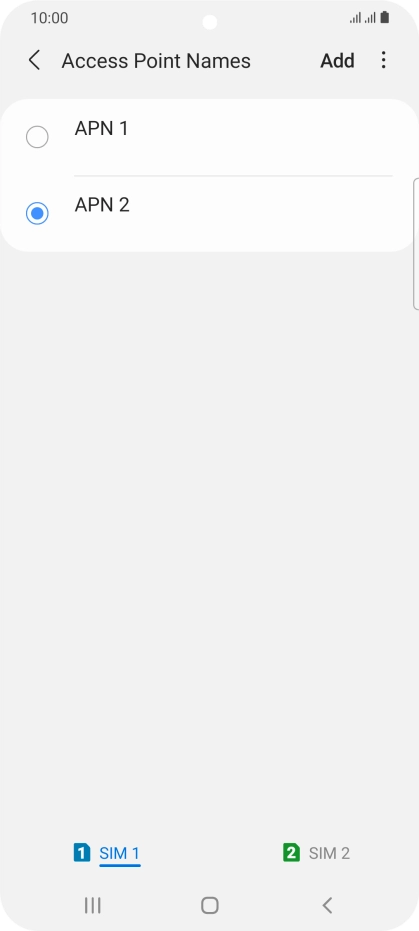

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d08546a0-65f8-4aa9-97bf-632db1c26ff6.png?width=210&height=466)
