Samsung Galaxy S21 Ultra 5G

Samsung Galaxy S21 Ultra 5G

Android 11.0

Set up your Samsung Galaxy S21 Ultra 5G Android 11.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 28

1. Find "Access Point Names"

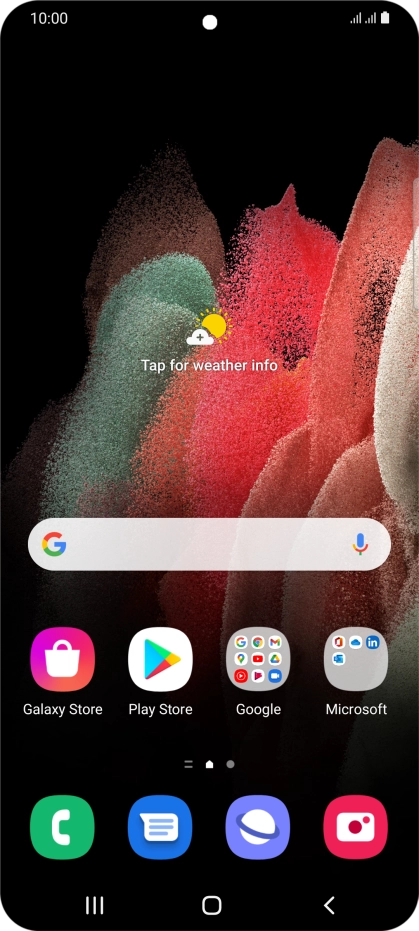

Slide two fingers downwards starting from the top of the screen.

Step 2 of 28

1. Find "Access Point Names"

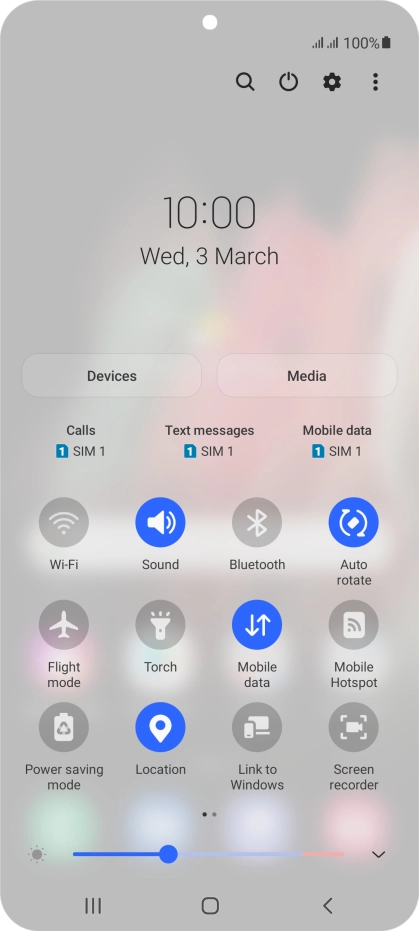

Press the settings icon.

Step 3 of 28

1. Find "Access Point Names"

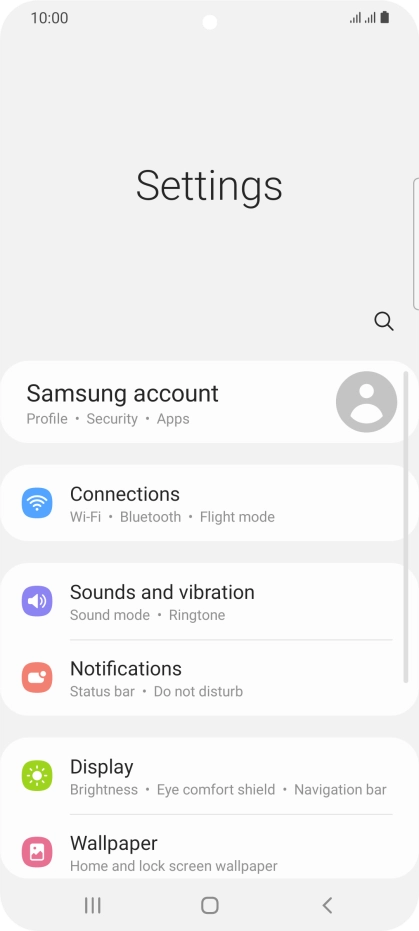

Press Connections.

Step 4 of 28

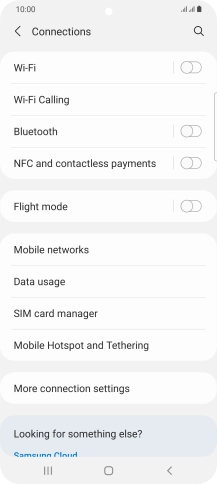

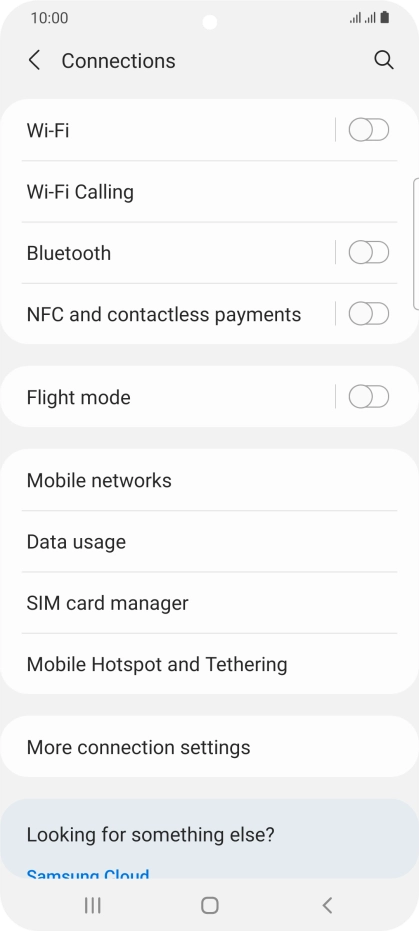

1. Find "Access Point Names"

Press Mobile networks.

Step 5 of 28

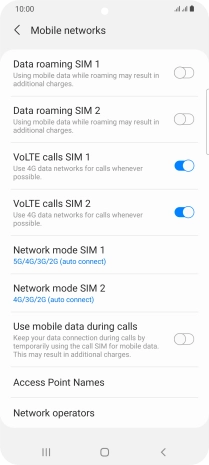

1. Find "Access Point Names"

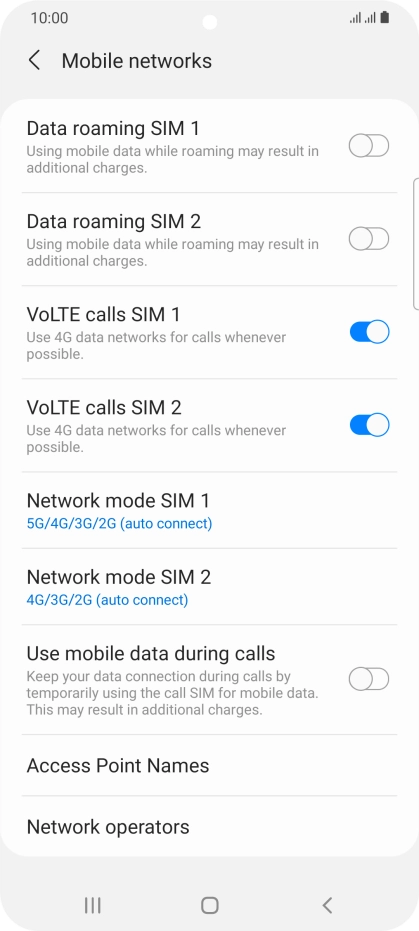

Press Access Point Names.

Step 6 of 28

2. Create new data connection

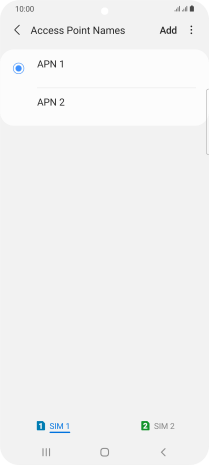

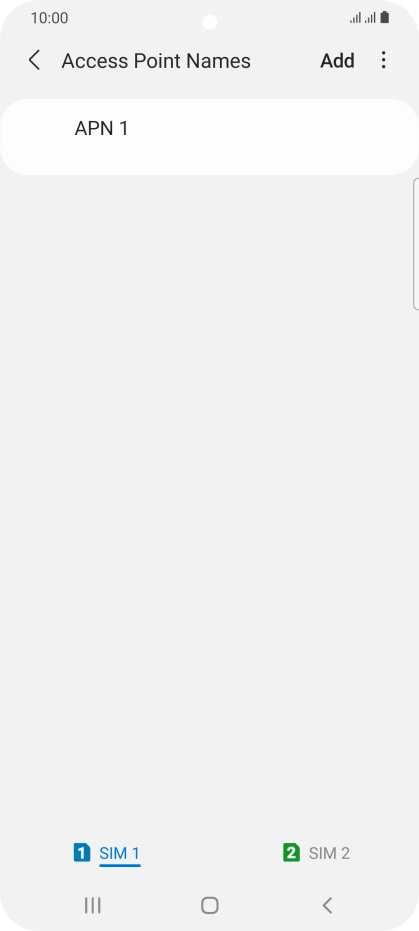

Press the name of the SIM.

Step 7 of 28

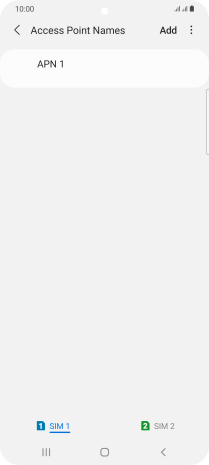

2. Create new data connection

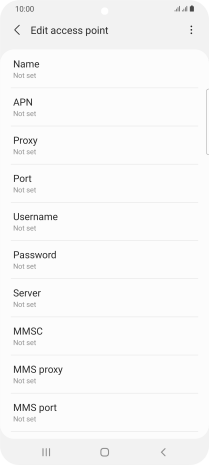

Press Add.

Step 8 of 28

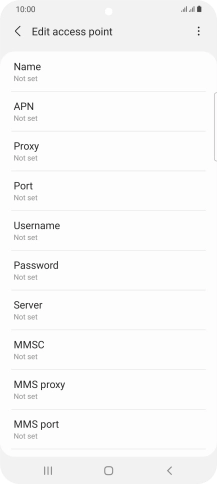

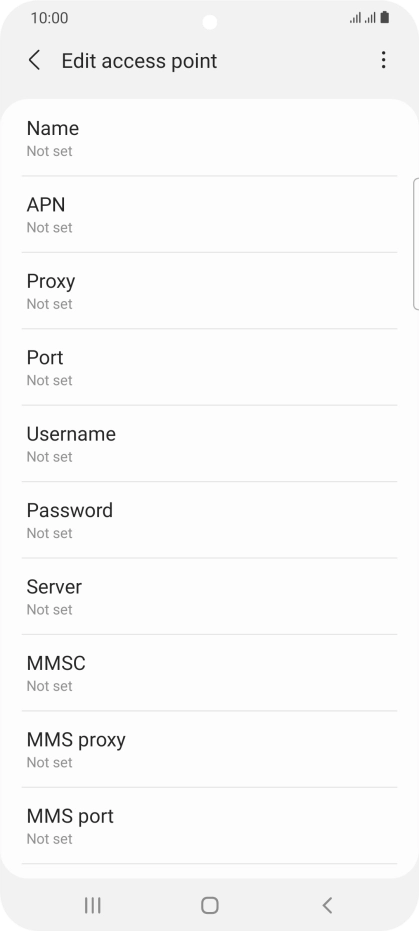

3. Enter a name for the connection

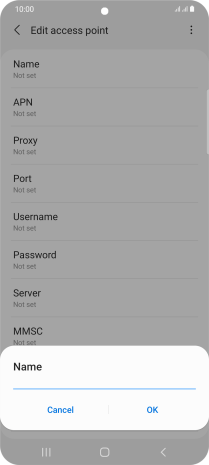

Press Name.

Vodafone MMS
Step 9 of 28

3. Enter a name for the connection

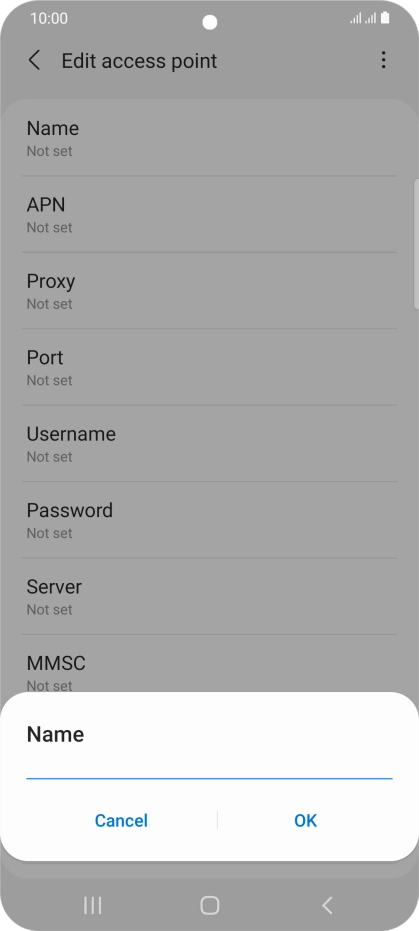

Key in Vodafone MMS and press OK.

Step 10 of 28

4. Enter APN

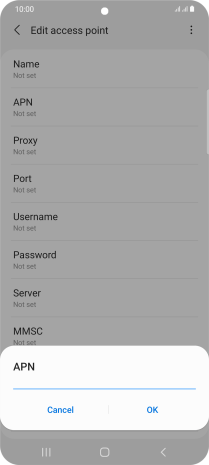

Press APN.

live.vodafone.com
Step 11 of 28

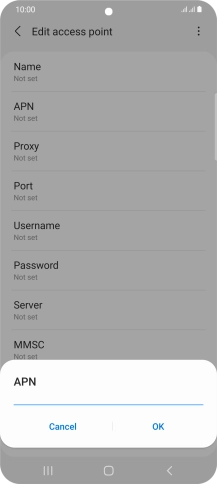

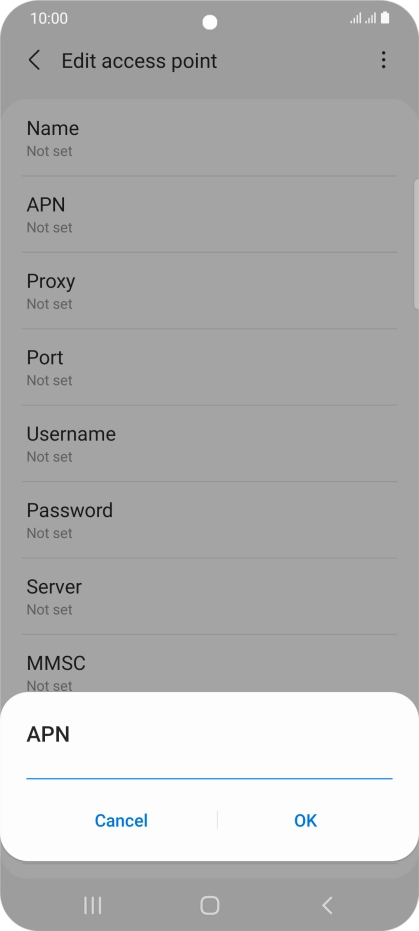

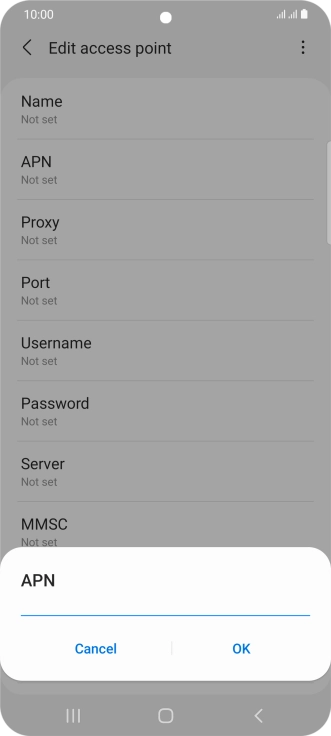

4. Enter APN

Key in live.vodafone.com and press OK.

Step 12 of 28

5. Enter MMSC

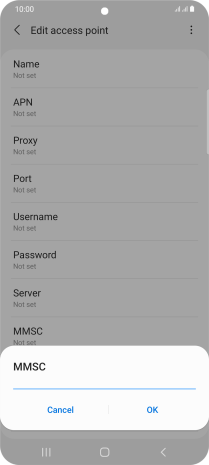

Press MMSC.

http://pxt.vodafone.net.au/pxtsend
Step 13 of 28

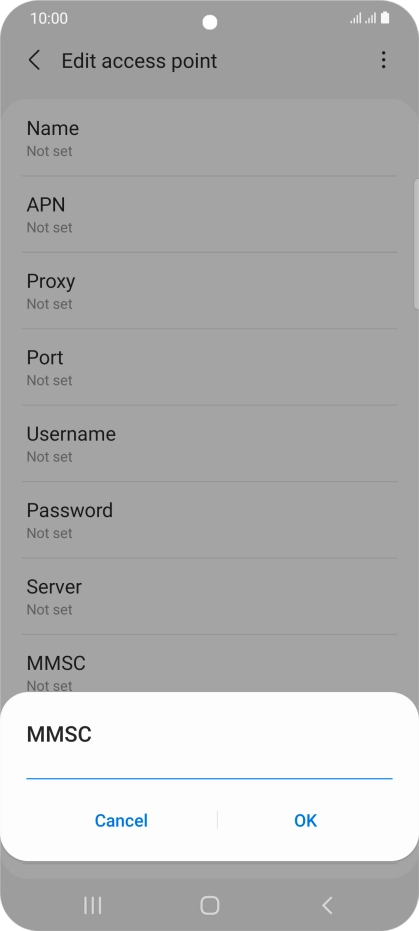

5. Enter MMSC

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 14 of 28

6. Enter IP address

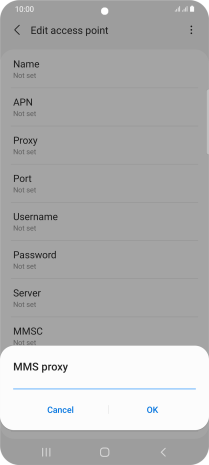

Press MMS proxy.

10.202.002.060
Step 15 of 28

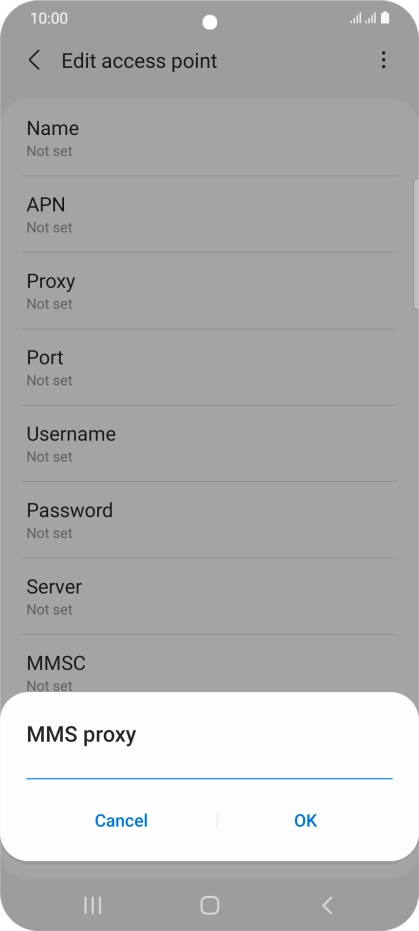

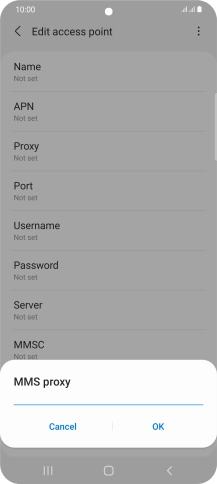

6. Enter IP address

Key in 10.202.002.060 and press OK.

Step 16 of 28

7. Enter port number

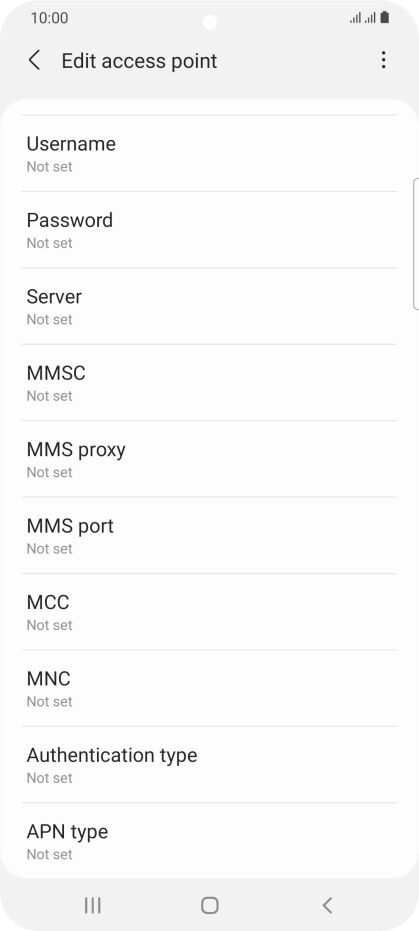

Press MMS port.

8080
Step 17 of 28

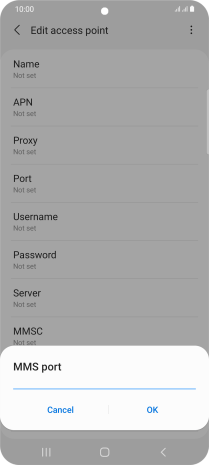

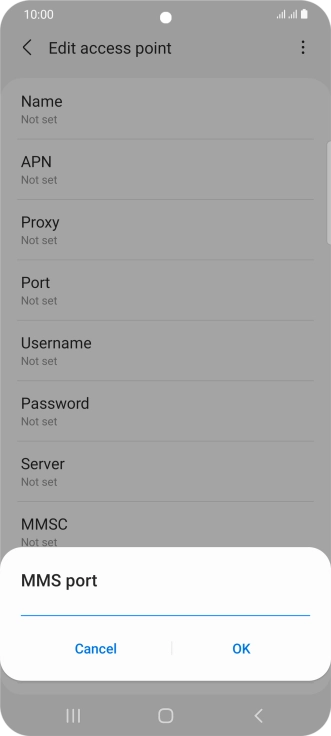

7. Enter port number

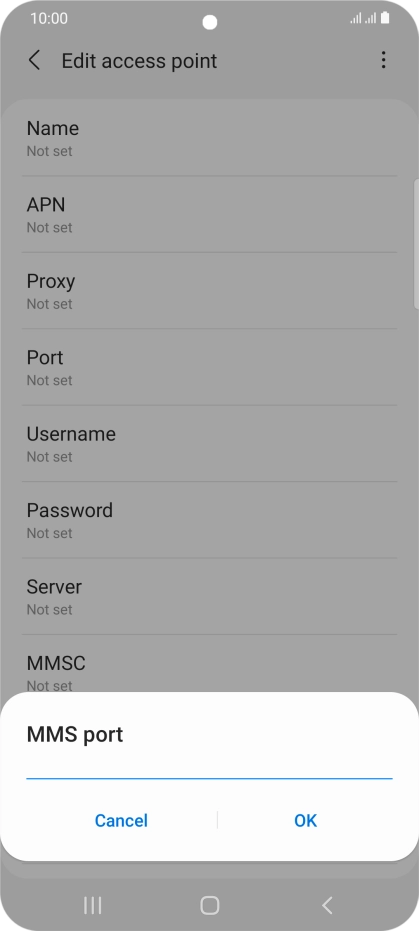

Key in 8080 and press OK.

Step 18 of 28

8. Enter country code

Press MCC.

505
Step 19 of 28

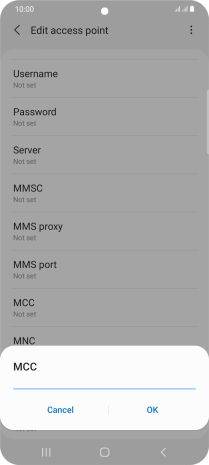

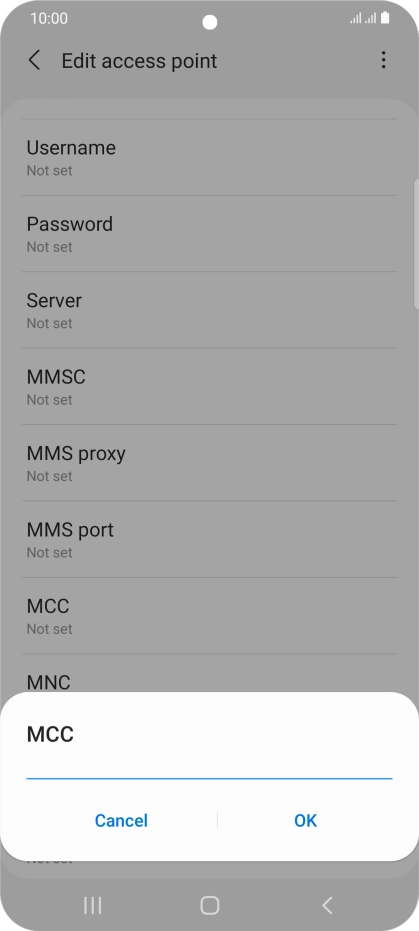

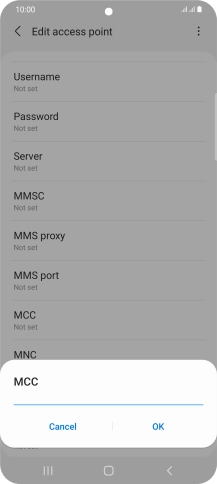

8. Enter country code

Key in 505 and press OK.

Step 20 of 28

9. Enter network code

Press MNC.

03
Step 21 of 28

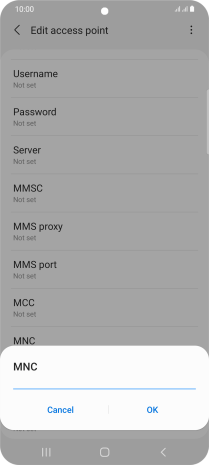

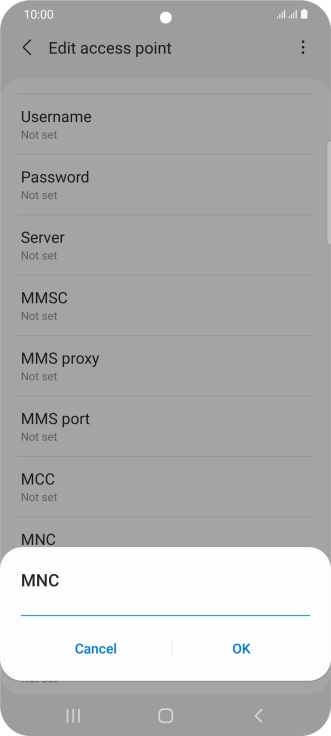

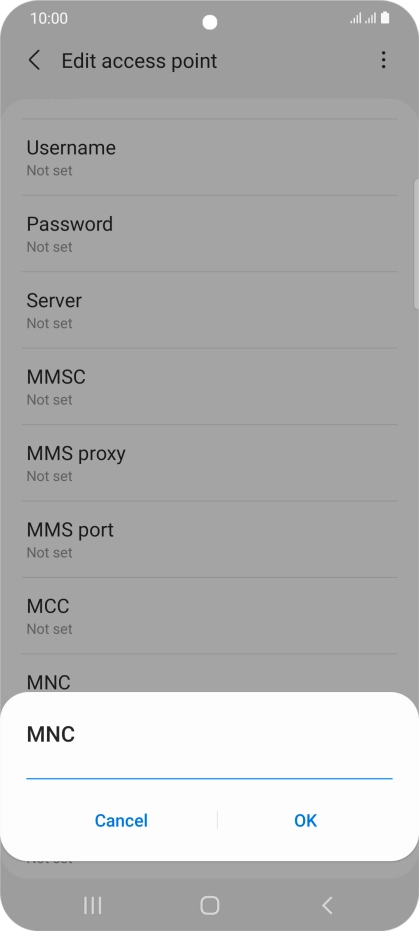

9. Enter network code

Key in 03 and press OK.

Step 22 of 28

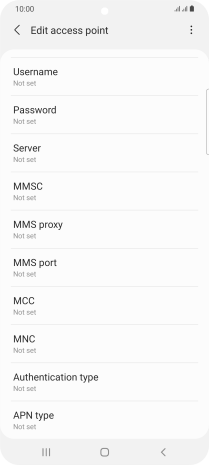

10. Select authentication type

Press Authentication type.

Step 23 of 28

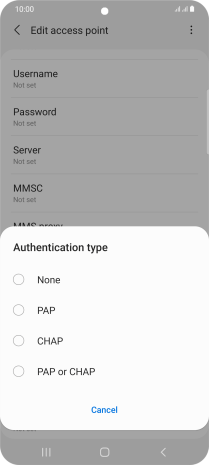

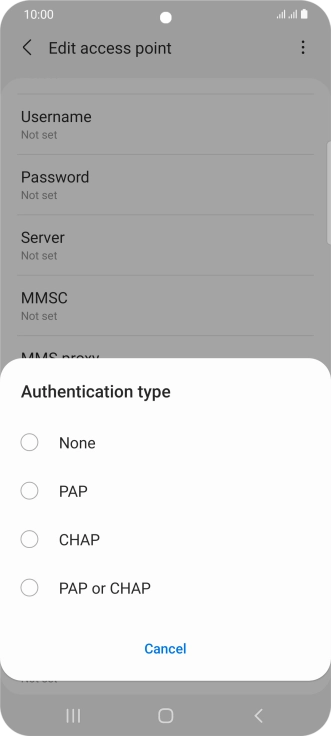

10. Select authentication type

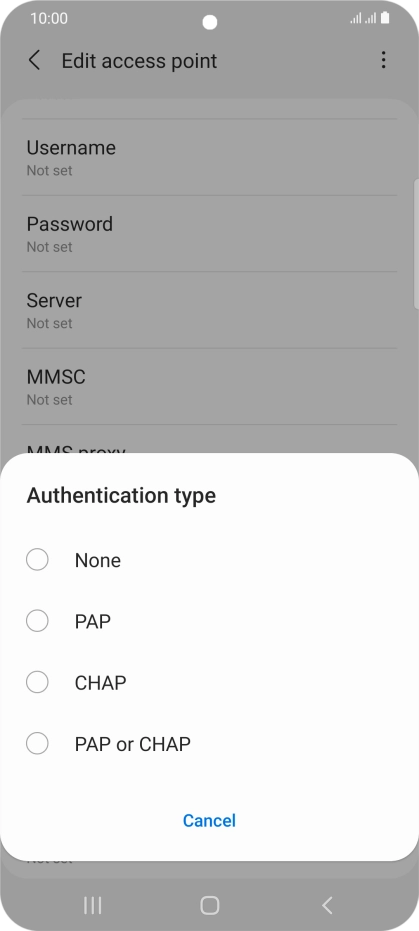

Press PAP.

Step 24 of 28

11. Enter APN type

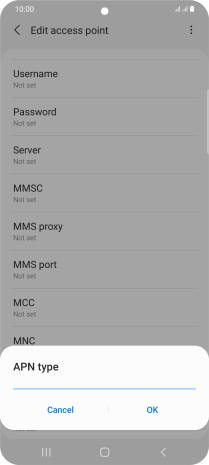

Press APN type.

mms
Step 25 of 28

11. Enter APN type

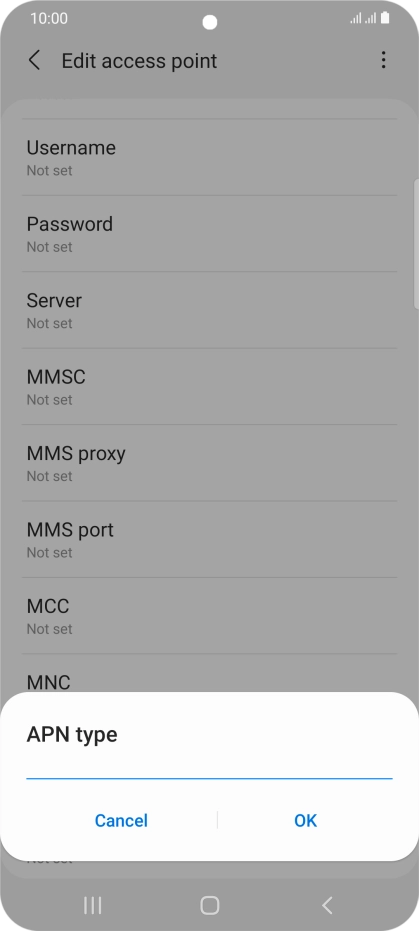

Key in mms and press OK.

Step 26 of 28

12. Save data connection

Press the menu icon.

Step 27 of 28

12. Save data connection

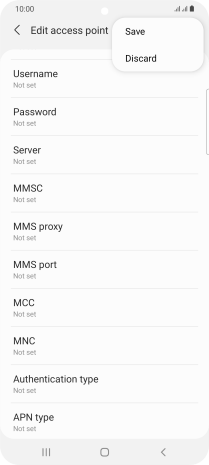

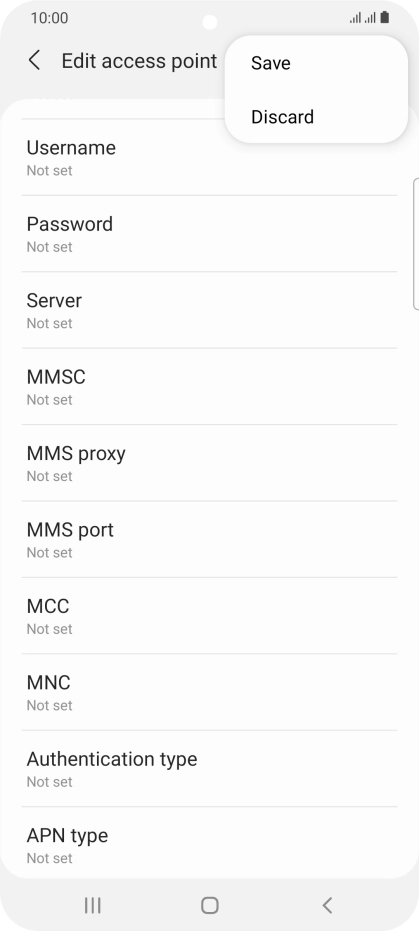

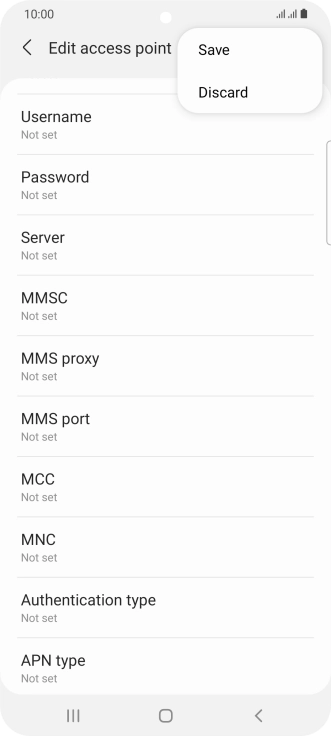

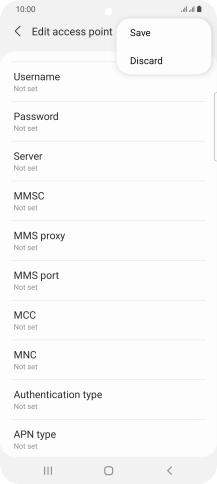

Press Save.

Step 28 of 28

13. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Connections.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press the name of the SIM.
Press Add.

3. Enter a name for the connection

Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

4. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

5. Enter MMSC

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
http://pxt.vodafone.net.au/pxtsend

6. Enter IP address

Press MMS proxy.
Key in 10.202.002.060 and press OK.
10.202.002.060

7. Enter port number

Press MMS port.
Key in 8080 and press OK.
8080

8. Enter country code

Press MCC.
Key in 505 and press OK.
505

9. Enter network code

Press MNC.
Key in 03 and press OK.
03

10. Select authentication type

Press Authentication type.
Press PAP.

11. Enter APN type

Press APN type.
Key in mms and press OK.
mms

12. Save data connection

Press the menu icon.
Press Save.

13. Return to the home screen

Press the Home key to return to the home screen.
