1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
1. Find "Access Point Names"
Press the settings icon.
1. Find "Access Point Names"
Press Connections.
1. Find "Access Point Names"
Press Mobile networks.
1. Find "Access Point Names"

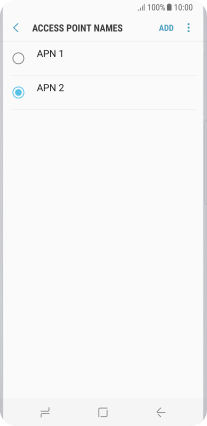

Press Access Point Names.
2. Create new data connection

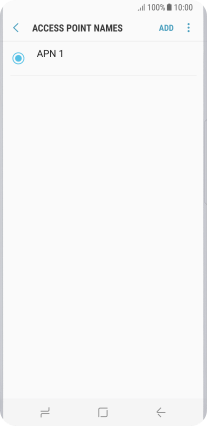

Press ADD.
2. Create new data connection

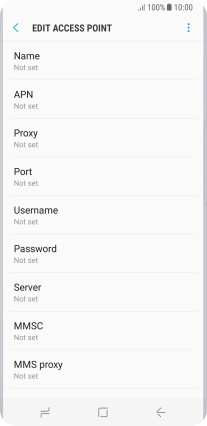

Press Name.
2. Create new data connection
Key in Vodafone Internet and press OK.
3. Enter APN
Press APN.
3. Enter APN
Key in live.vodafone.com and press OK.
4. Enter IP address
Press Proxy.
4. Enter IP address

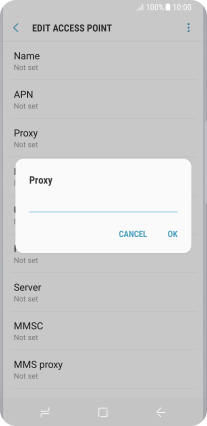

Key in 10.202.2.60 and press OK.
5. Enter port number
Press Port.
5. Enter port number

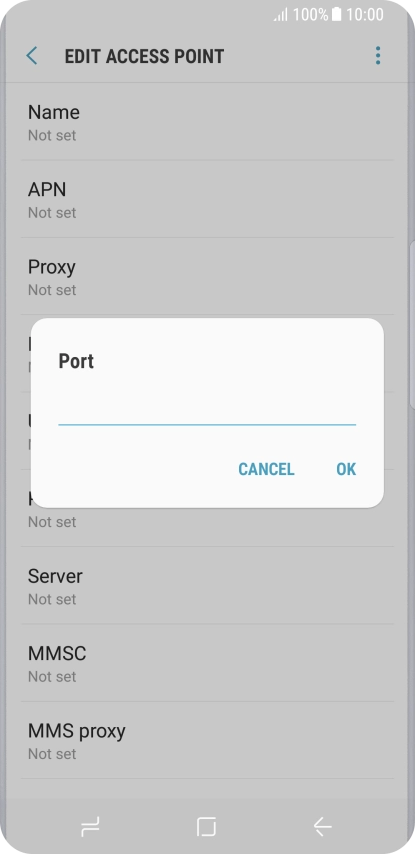

Key in 8080 and press OK.
6. Enter country code

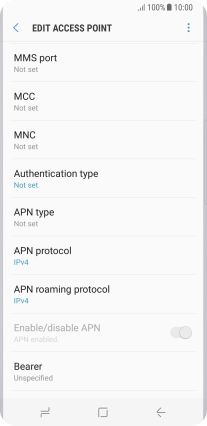

Press MCC.
6. Enter country code
Key in 505 and press OK.
7. Enter network code
Press MNC.
7. Enter network code

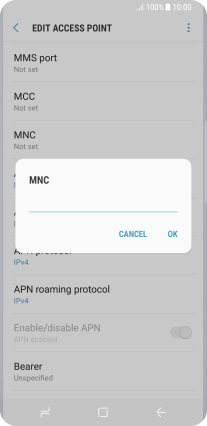

Key in 03 and press OK.
8. Select authentication type
Press Authentication type.
8. Select authentication type

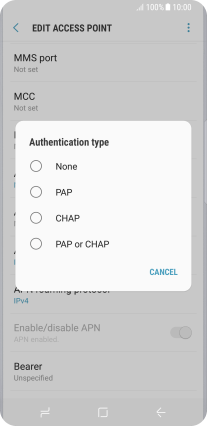

Press PAP.
9. Select APN type
Press APN type.
9. Select APN type

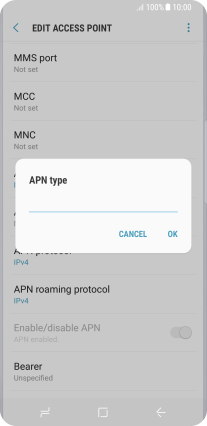

Key in default and press OK.
10. Save data connection

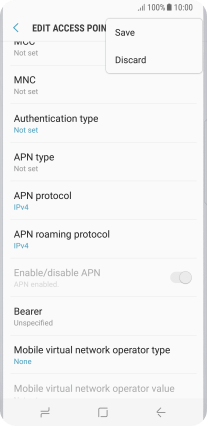

Press the menu icon.
10. Save data connection
Press Save.
10. Save data connection

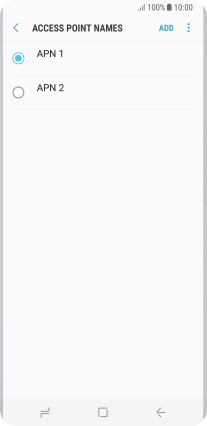

Press the field next to the data connection to activate it.
11. Return to the home screen

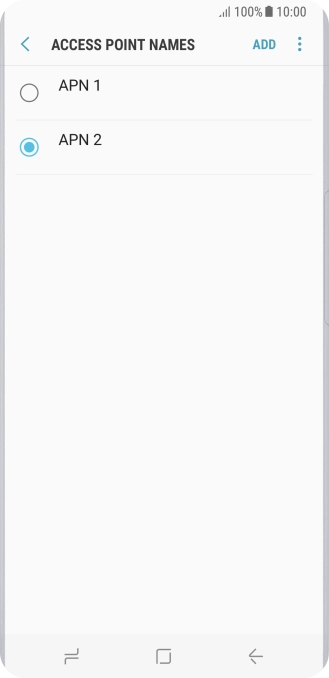

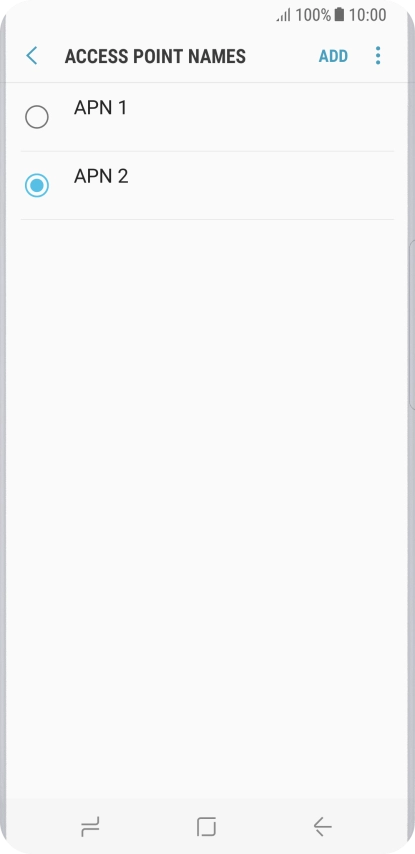

Press the Home key to return to the home screen.
