Set up your Samsung Galaxy S8 Android 7.0 for IMAP email

Read help info

You can set up your phone to send and receive email messages from your email accounts. Using IMAP, your email messages are kept on the server and are synchronised between all of your devices. You're then able to access your email messages from other devices. To set up your phone for IMAP email, you need to set up your phone for internet.

Step 1 of 43

1. Find "Accounts"

Slide your finger downwards starting from the top of the screen.

Step 2 of 43

1. Find "Accounts"

Press the settings icon.

Step 3 of 43

1. Find "Accounts"

Press Cloud and accounts.

Step 4 of 43

1. Find "Accounts"

Press Accounts.

Step 5 of 43

2. Create new email account

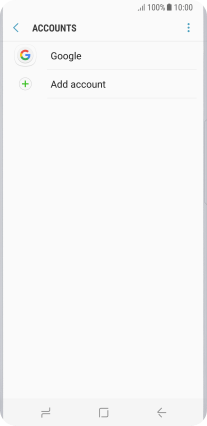

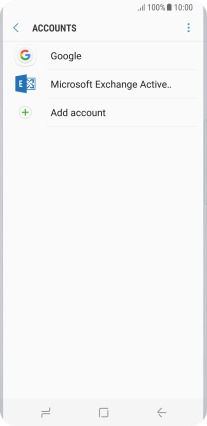

Press Add account.

Step 6 of 43

2. Create new email account

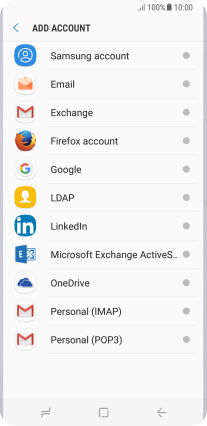

Press Email.

Step 7 of 43

3. Enter email address

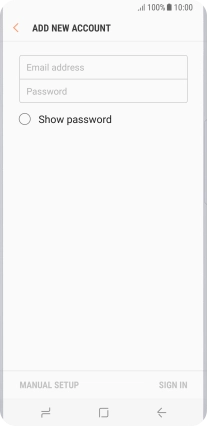

Press Email address and key in your email address.

Step 8 of 43

4. Enter password

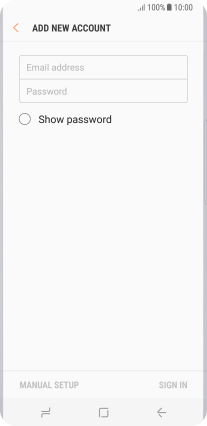

Press Password and key in the password for your email account.

Step 9 of 43

4. Enter password

Press SIGN IN.

Step 10 of 43

4. Enter password

If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

Step 11 of 43

5. Select server type

Press IMAP account.

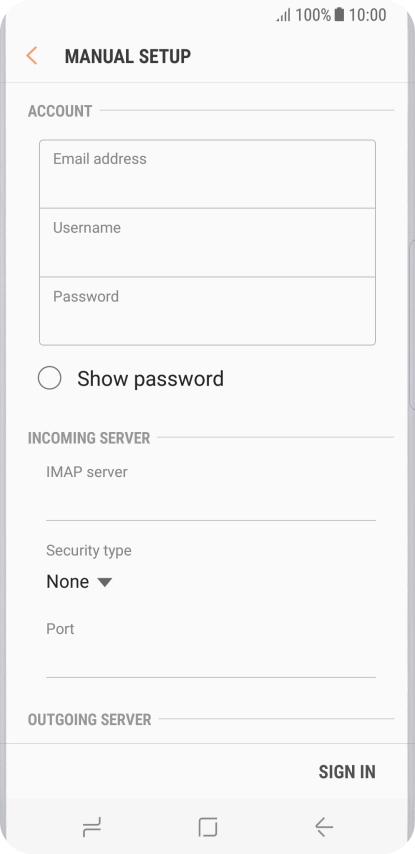

Step 12 of 43

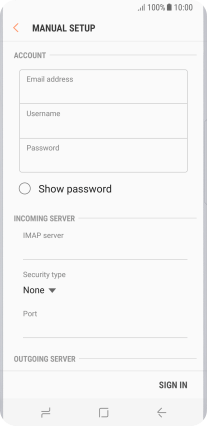

6. Enter username

Press the field below "Username" and key in the username for your email account.

Step 13 of 43

7. Enter incoming server

Press the field below "IMAP server" and key in the name of your email provider's incoming server.

Step 14 of 43

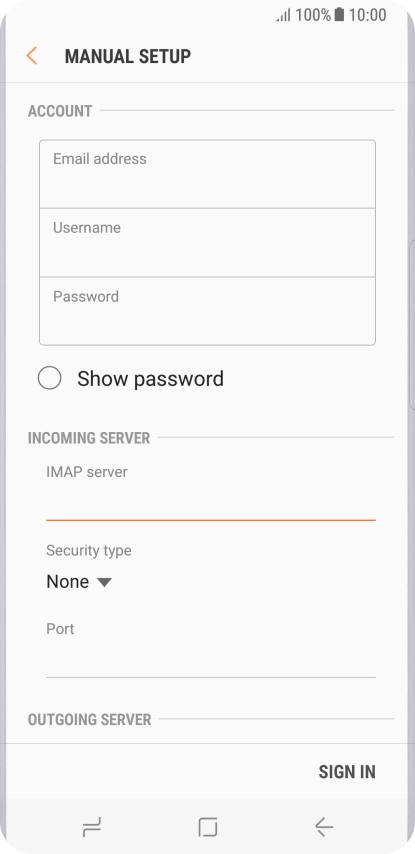

8. Turn off encryption of incoming email messages

Press the drop down list below "Security type".

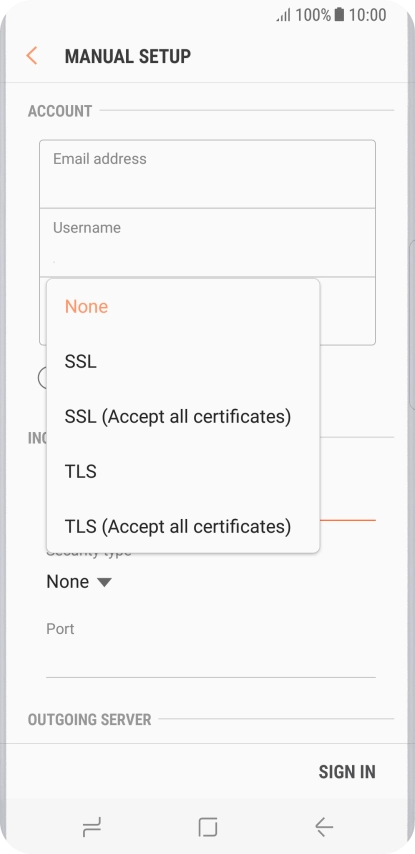

Step 15 of 43

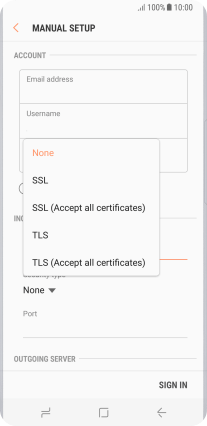

8. Turn off encryption of incoming email messages

Press None to turn off the function.

143
Step 16 of 43

9. Enter incoming port

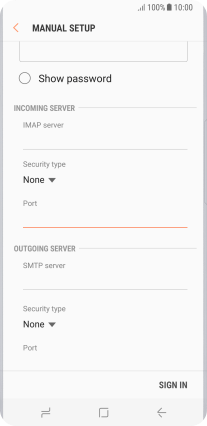

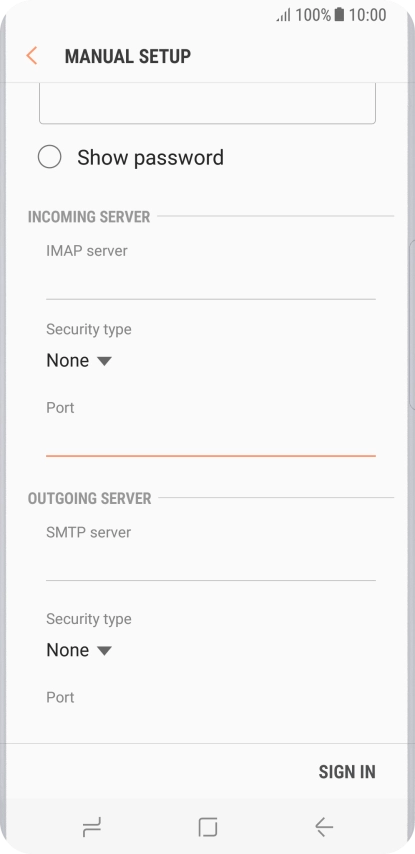

Press the field below "Port" and key in 143.

smtp.vodafone.net.au
Step 17 of 43

10. Enter outgoing server

Press the field below "SMTP server" and key in the name of your email provider's outgoing server. Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 18 of 43

11. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".

Step 19 of 43

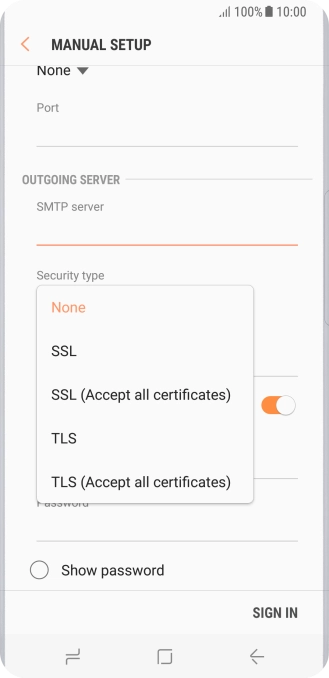

11. Turn off encryption of outgoing email messages

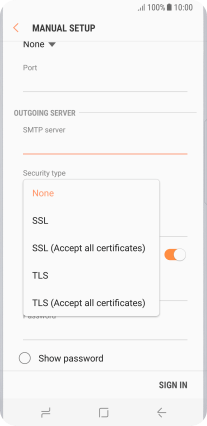

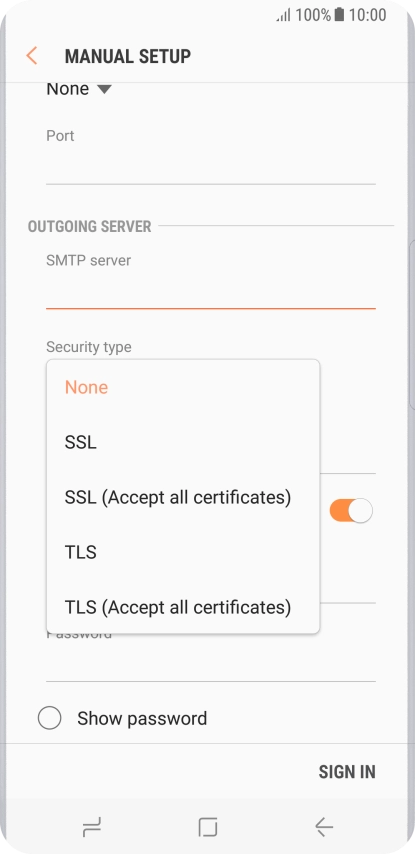

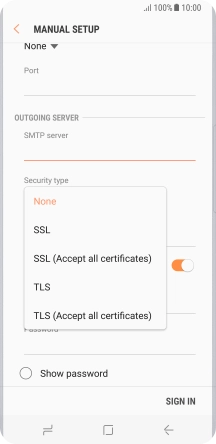

Press None to turn off the function.

25
Step 20 of 43

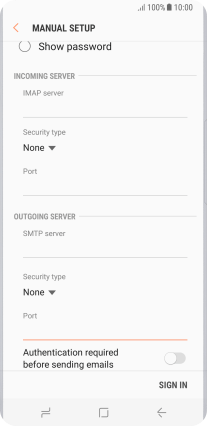

12. Enter outgoing port

Press the field below "Port" and key in 25.

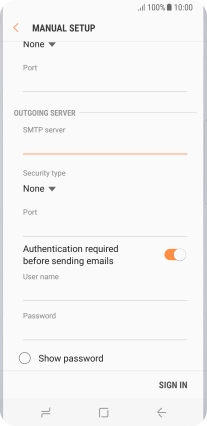

Step 21 of 43

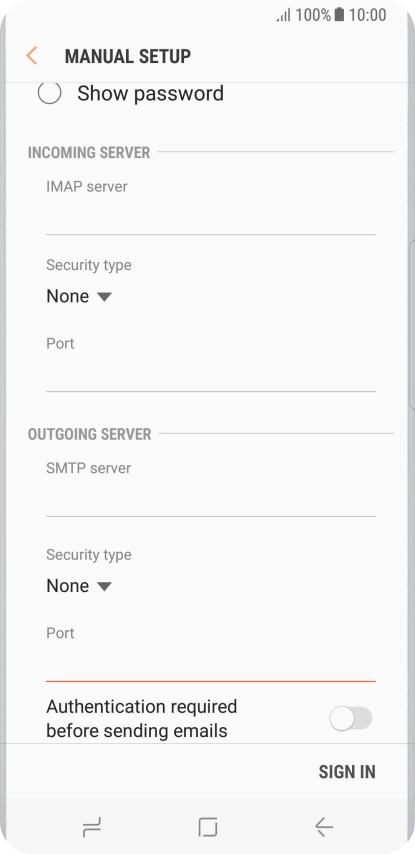

13. Turn SMTP authentication on or off

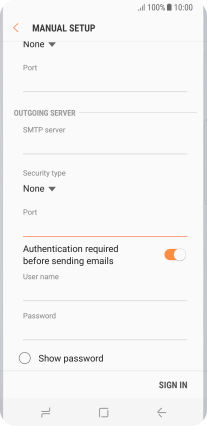

Press the indicator next to "Authentication required before sending emails" to turn the function on or off. Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.

Step 22 of 43

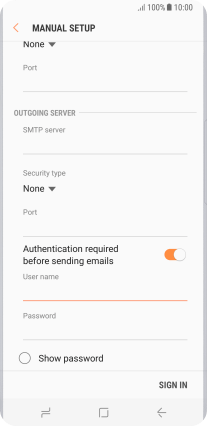

13. Turn SMTP authentication on or off

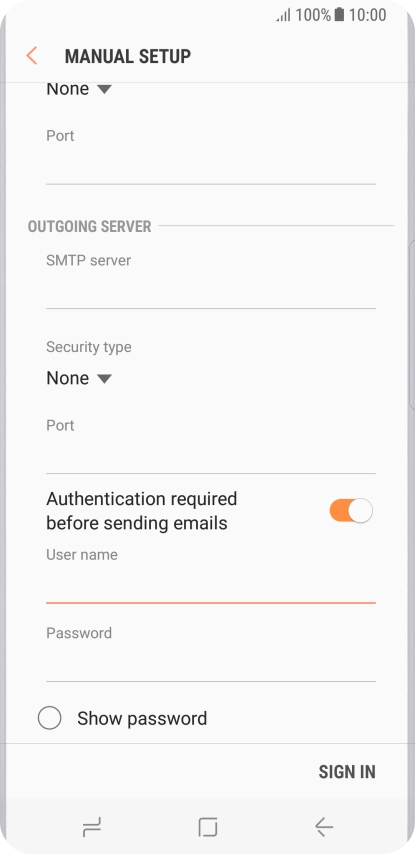

If you turn on SMTP authentication, press the field below "User name" and key in the username for your email provider's outgoing server.

Step 23 of 43

13. Turn SMTP authentication on or off

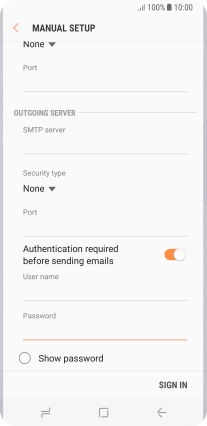

If you turn on SMTP authentication, press the field below "Password" and key in the password for your email provider's outgoing server.

Step 24 of 43

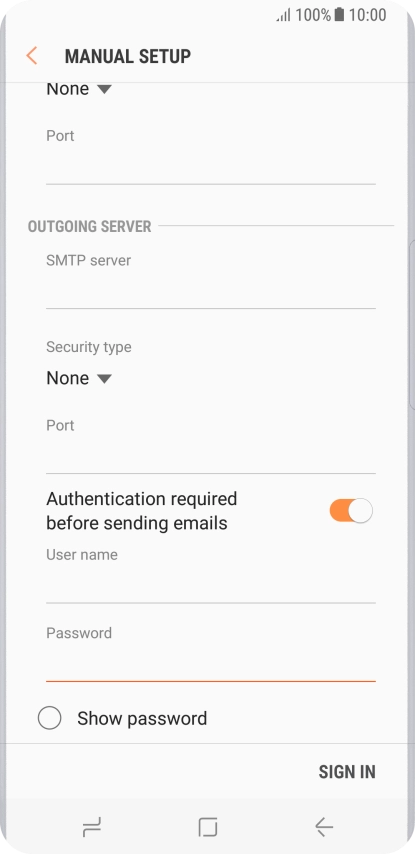

13. Turn SMTP authentication on or off

Press SIGN IN.

Step 25 of 43

14. Return to the home screen

Press the Home key to return to the home screen.

Step 26 of 43

15. Find "Email"

Slide your finger upwards on the screen.

Step 27 of 43

15. Find "Email"

Press Samsung.

Step 28 of 43

15. Find "Email"

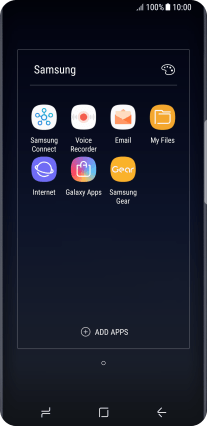

Press Email.

Step 29 of 43

16. Turn email message notifications on or off

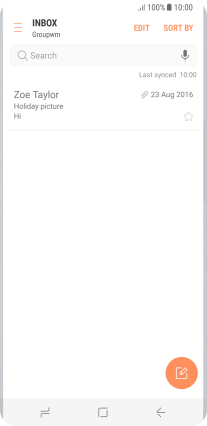

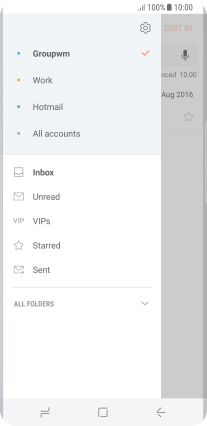

Slide your finger right starting from the left side of the screen.

Step 30 of 43

16. Turn email message notifications on or off

Press the settings icon.

Step 31 of 43

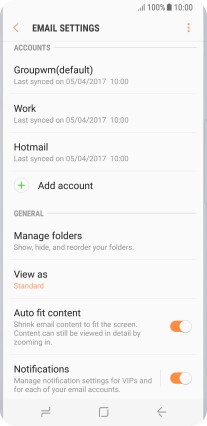

16. Turn email message notifications on or off

Press Notifications.

Step 32 of 43

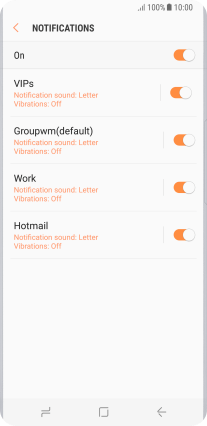

16. Turn email message notifications on or off

Press the indicator next to the required email account to turn the function on or off.

Step 33 of 43

16. Turn email message notifications on or off

Press the Return key.

Step 34 of 43

17. Turn on email message synchronisation

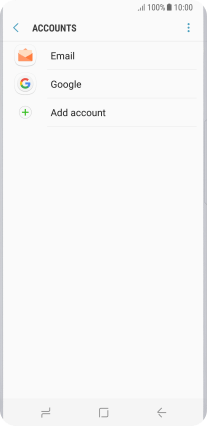

Press the required account.

Step 35 of 43

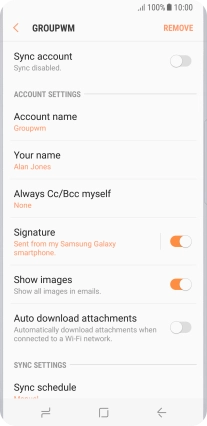

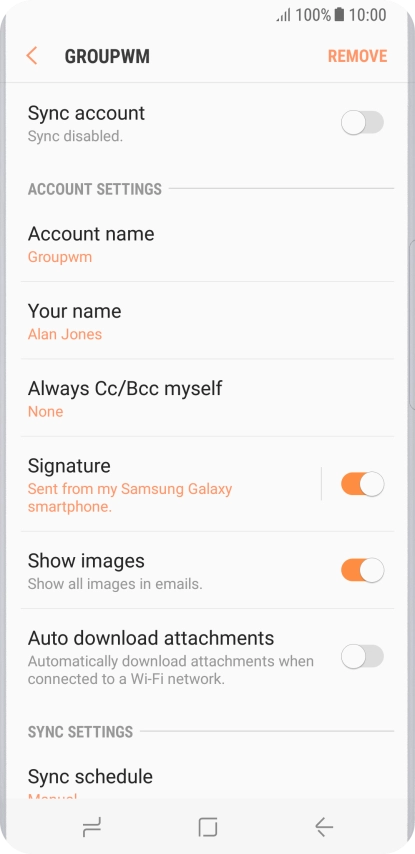

17. Turn on email message synchronisation

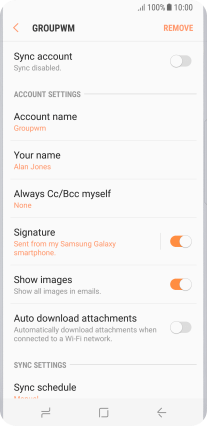

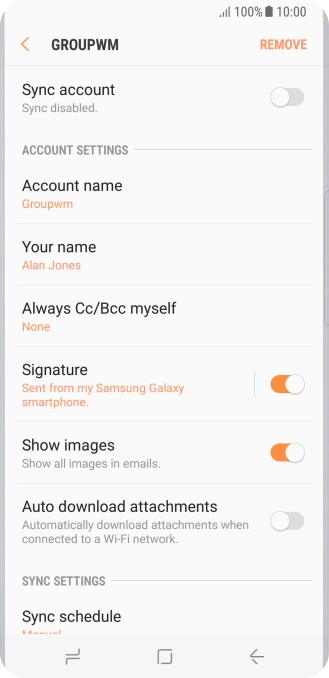

Press the indicator next to "Sync account" to turn on the function.

Step 36 of 43

18. Enter email account name

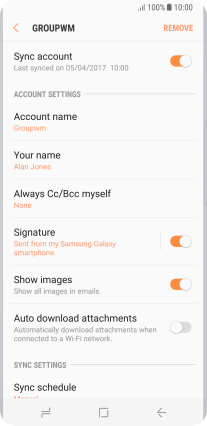

Press Account name.

Step 37 of 43

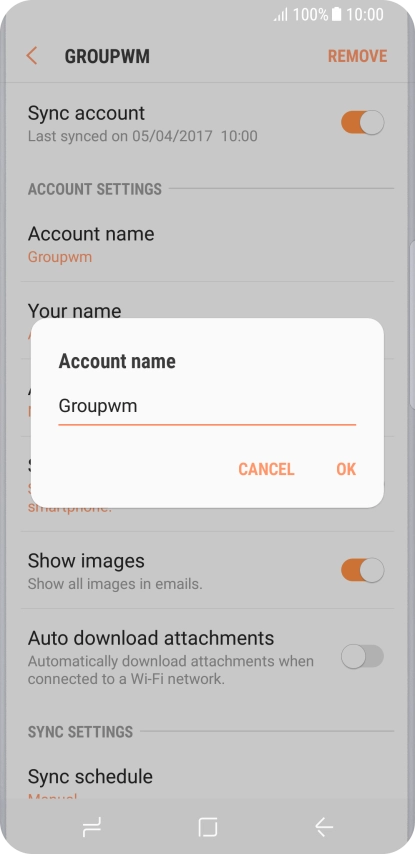

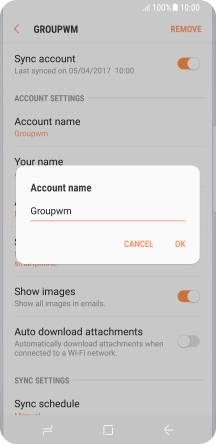

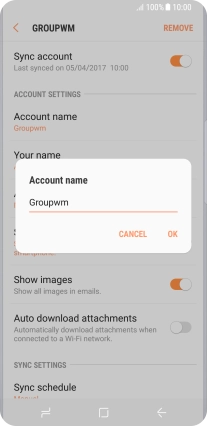

18. Enter email account name

Key in the required name for the email account and press OK.

Step 38 of 43

19. Enter sender name

Press Your name.

Step 39 of 43

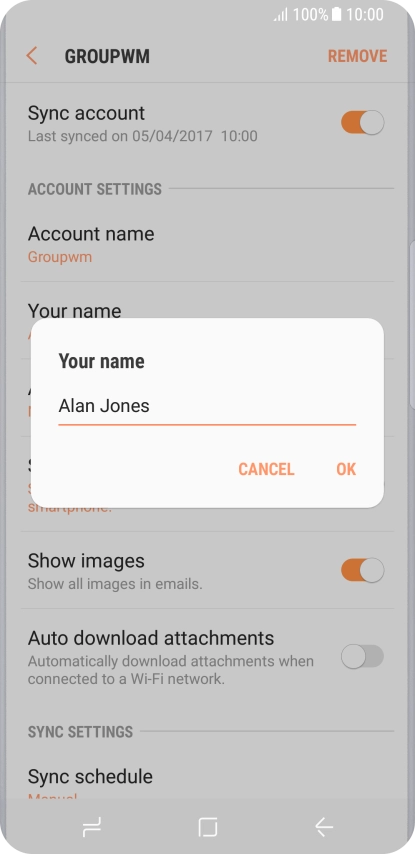

19. Enter sender name

Key in the required sender name and press OK.

Step 40 of 43

20. Select settings for retrieval of new email messages

Press Sync schedule.

Step 41 of 43

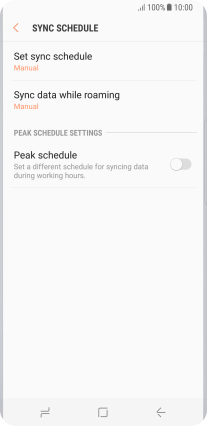

20. Select settings for retrieval of new email messages

Press Set sync schedule.

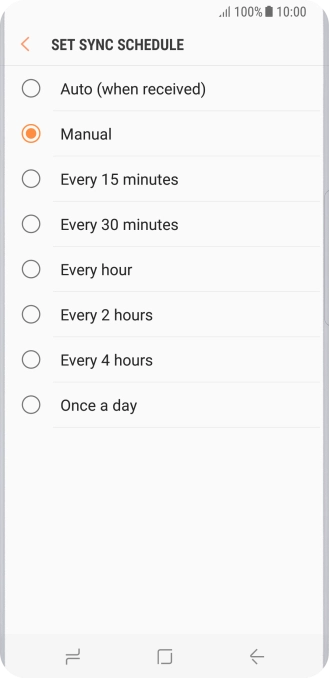

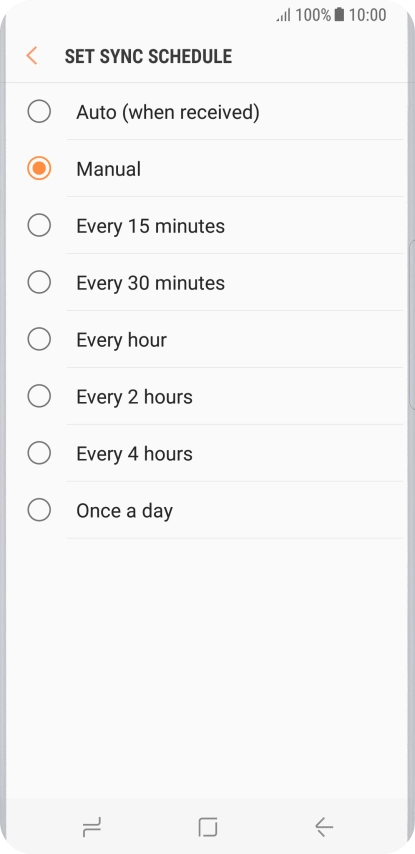

Step 42 of 43

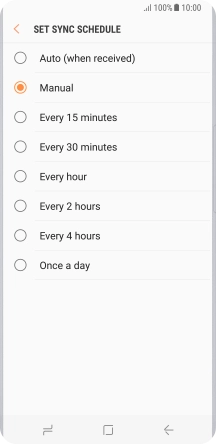

20. Select settings for retrieval of new email messages

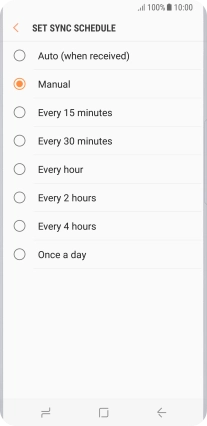

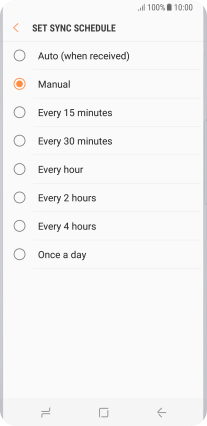

Press the required setting.

Step 43 of 43

21. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Accounts"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Cloud and accounts.
Press Accounts.

2. Create new email account

Press Add account.
Press Email.

3. Enter email address

Press Email address and key in your email address.

4. Enter password

Press Password and key in the password for your email account.
Press SIGN IN.
If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

5. Select server type

Press IMAP account.

6. Enter username

Press the field below "Username" and key in the username for your email account.

7. Enter incoming server

Press the field below "IMAP server" and key in the name of your email provider's incoming server.

8. Turn off encryption of incoming email messages

Press the drop down list below "Security type".
Press None to turn off the function.

9. Enter incoming port

Press the field below "Port" and key in 143.
143

10. Enter outgoing server

Press the field below "SMTP server" and key in the name of your email provider's outgoing server. Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).
smtp.vodafone.net.au

11. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".
Press None to turn off the function.

12. Enter outgoing port

Press the field below "Port" and key in 25.
25

13. Turn SMTP authentication on or off

Press the indicator next to "Authentication required before sending emails" to turn the function on or off. Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
If you turn on SMTP authentication, press the field below "User name" and key in the username for your email provider's outgoing server.
If you turn on SMTP authentication, press the field below "Password" and key in the password for your email provider's outgoing server.
Press SIGN IN.

14. Return to the home screen

Press the Home key to return to the home screen.

15. Find "Email"

Slide your finger upwards on the screen.
Press Samsung.
Press Email.

16. Turn email message notifications on or off

Slide your finger right starting from the left side of the screen.
Press the settings icon.
Press Notifications.
Press the indicator next to the required email account to turn the function on or off.
Press the Return key.

17. Turn on email message synchronisation

Press the required account.
Press the indicator next to "Sync account" to turn on the function.

18. Enter email account name

Press Account name.
Key in the required name for the email account and press OK.

19. Enter sender name

Press Your name.
Key in the required sender name and press OK.

20. Select settings for retrieval of new email messages

Press Sync schedule.
Press Set sync schedule.
Press the required setting.

21. Return to the home screen

Press the Home key to return to the home screen.
