1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f3f1c5c2-0b7c-420e-b35f-30c56d2f5863.png?width=212&height=434)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-00ed165e-6505-48dd-af4c-070fc489ed1f.png?width=212&height=434)

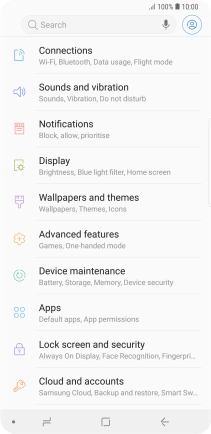

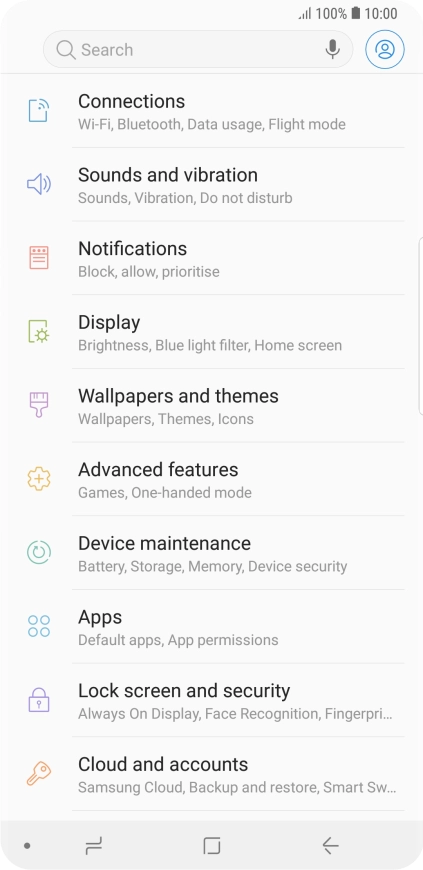

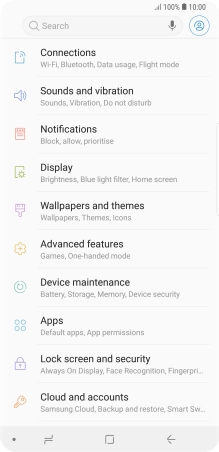

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4d88bad1-8172-4ff1-94fd-8a0e039481c9.png?width=212&height=434)

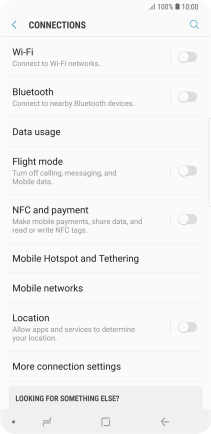

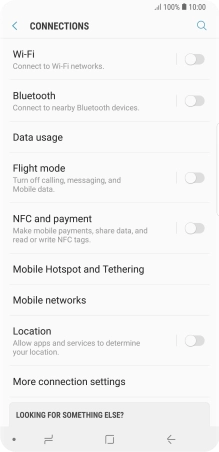

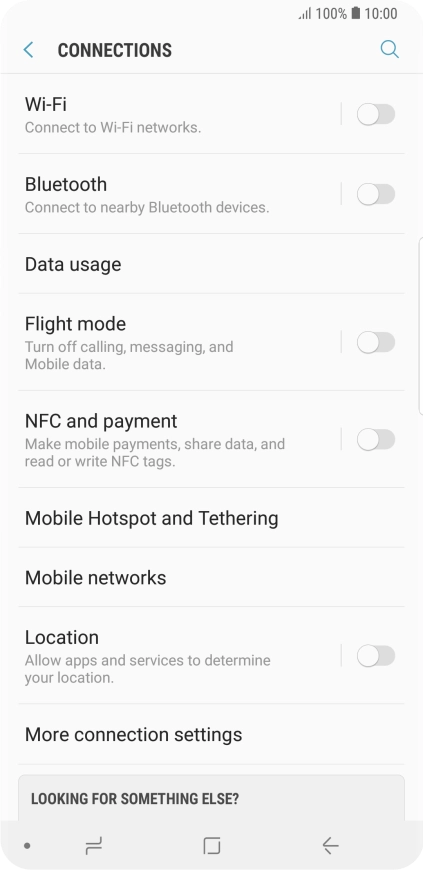

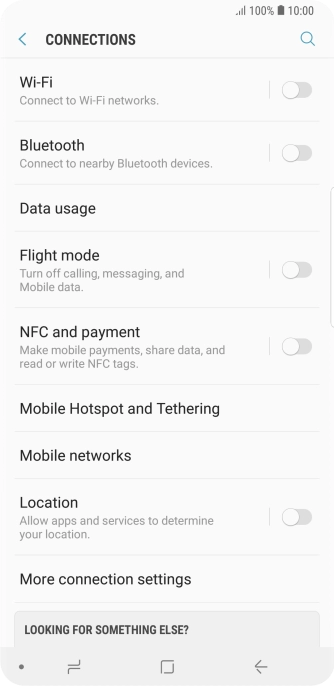

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-102e0548-0c0b-4bd3-af98-453e424efff2.png?width=212&height=434)

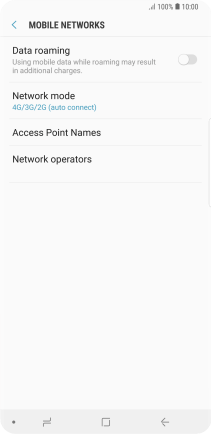

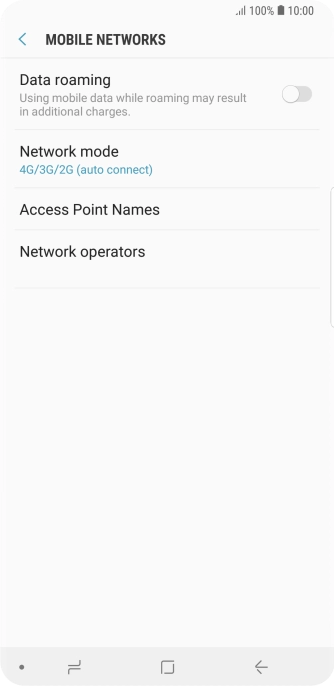

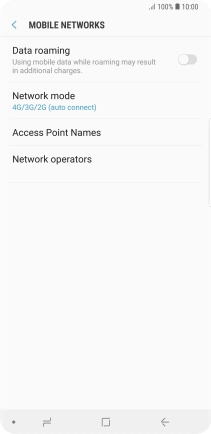

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c1c4f6d1-53b0-4774-92e0-4da4bb56d1bb.png?width=212&height=434)
2. Create new data connection

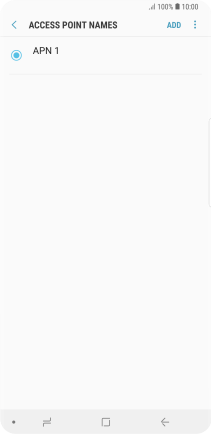

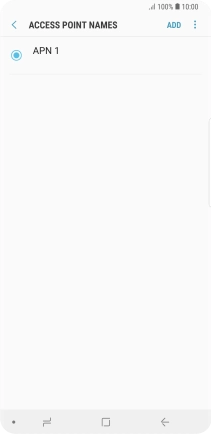

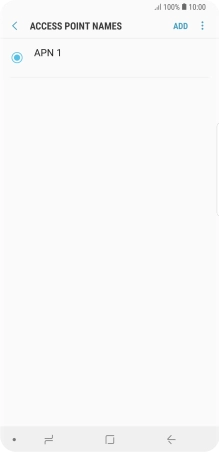

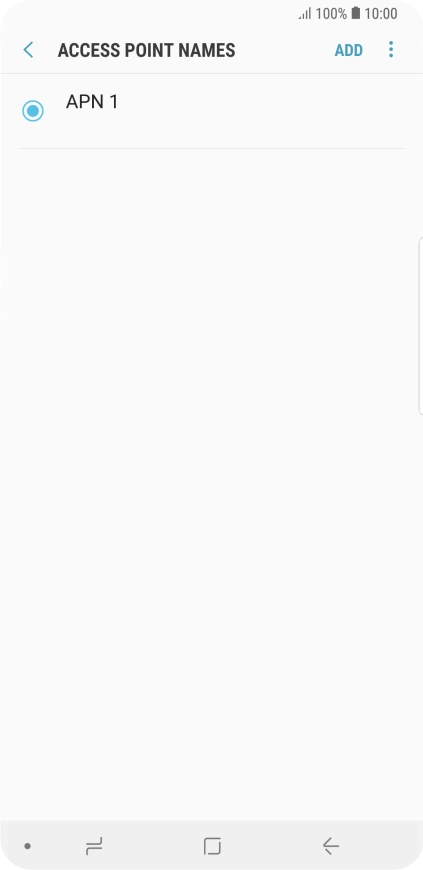

Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-af328e35-42d9-40c3-988a-19ecabfb1330.png?width=212&height=434)

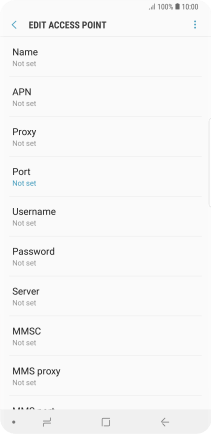

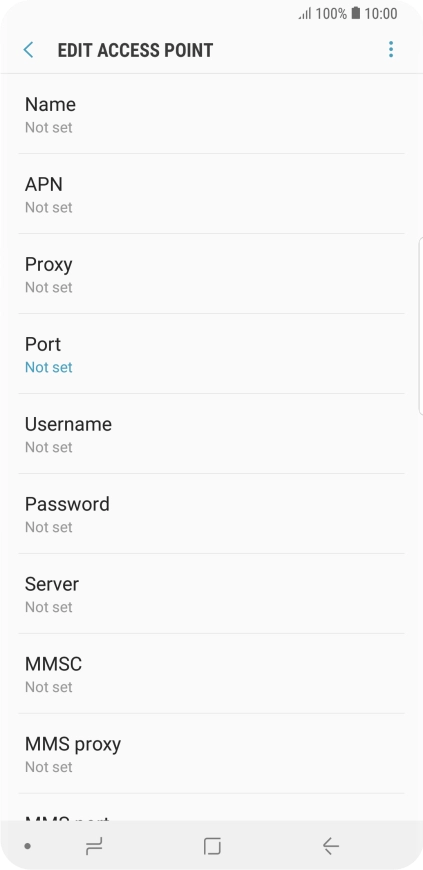

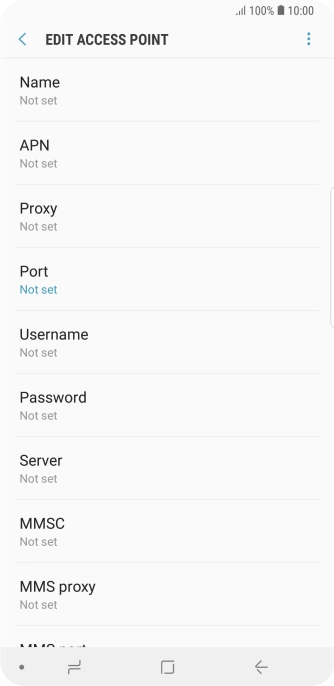

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ce638487-a94c-4716-9af5-26bba6f72164.png?width=212&height=434)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-efa65624-2cdd-452c-b1a5-76615a01efd8.png?width=212&height=434)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ce638487-a94c-4716-9af5-26bba6f72164.png?width=212&height=434)

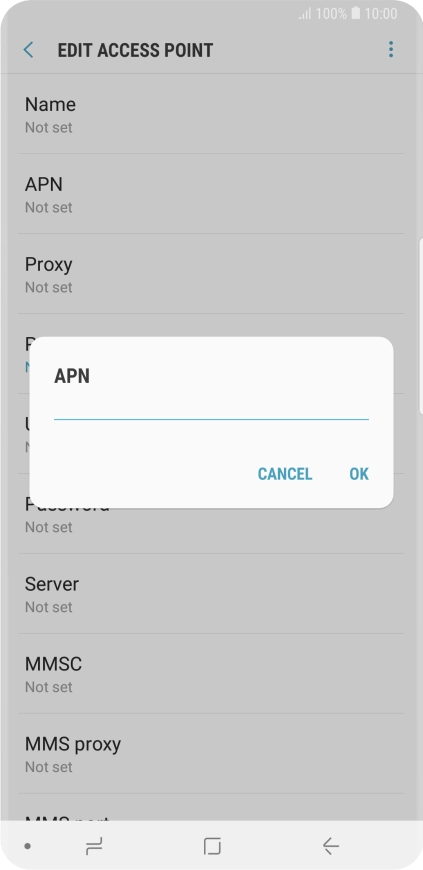

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2b0a612f-2146-40a0-b34f-68b9f3ccbb84.png?width=212&height=434)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ce638487-a94c-4716-9af5-26bba6f72164.png?width=212&height=434)

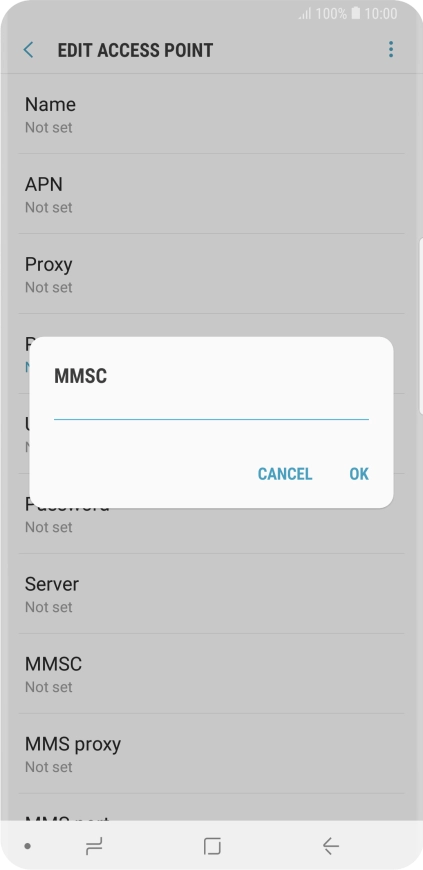

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d1c92ac9-0556-4f35-ae70-ce6be9bc5419.png?width=212&height=434)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ce638487-a94c-4716-9af5-26bba6f72164.png?width=212&height=434)

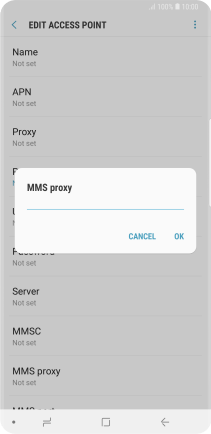

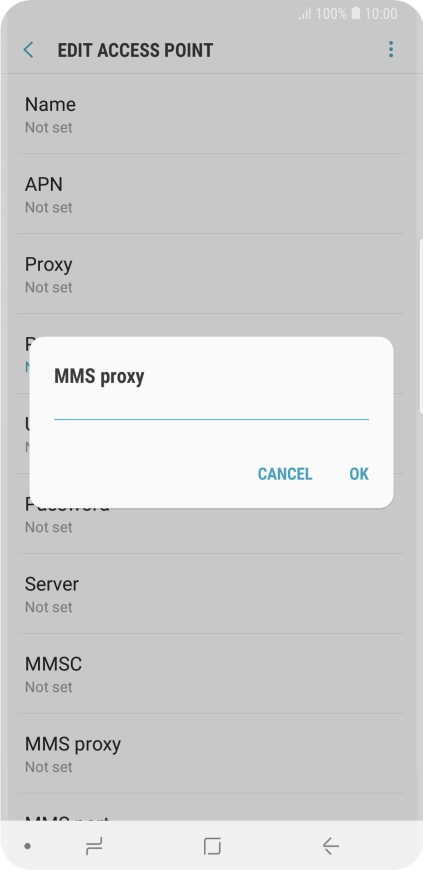

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-de09c323-9e29-404a-8d6d-0ce49fdd2eba.png?width=212&height=434)
10.202.002.060
6. Enter port number

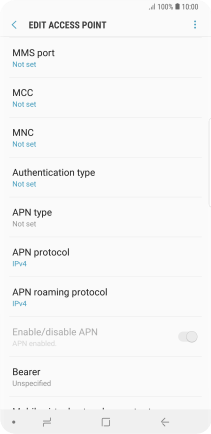

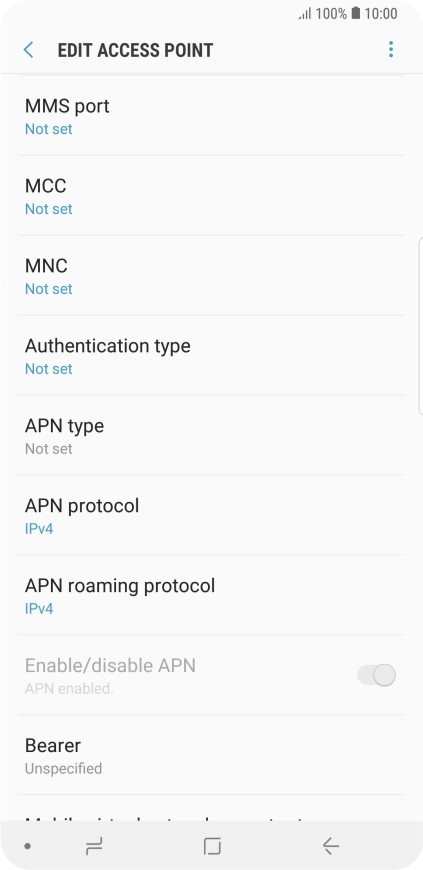

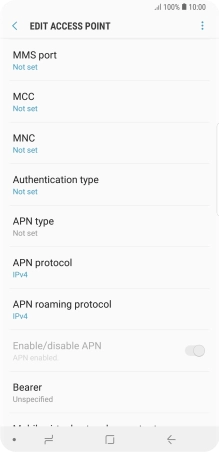

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dee03afd-3a5b-4fa3-82e5-40f89582b694.png?width=212&height=434)
Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d0a9c908-513f-47ca-a428-78b2eb21e3b4.png?width=212&height=434)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dee03afd-3a5b-4fa3-82e5-40f89582b694.png?width=212&height=434)

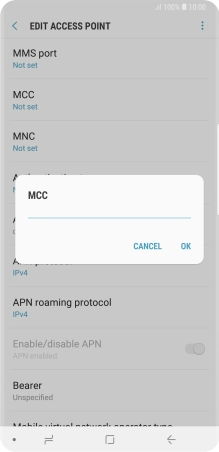

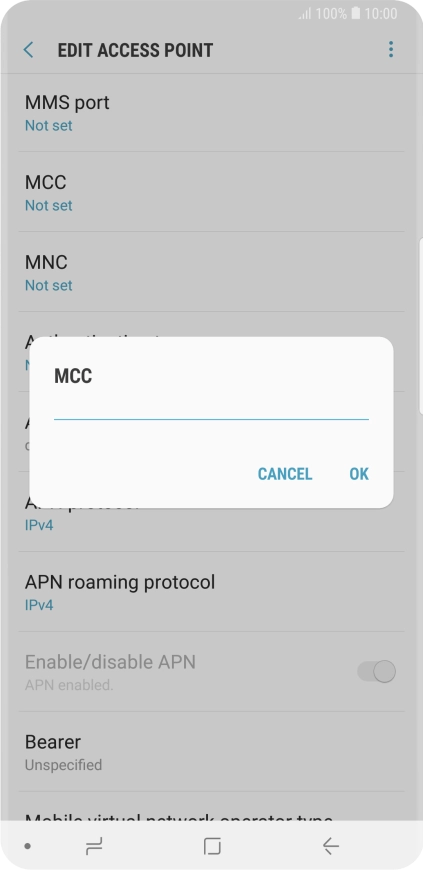

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1e4f3273-01e8-4191-8c6b-4547f1047f49.png?width=212&height=434)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dee03afd-3a5b-4fa3-82e5-40f89582b694.png?width=212&height=434)

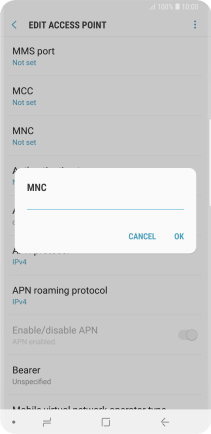

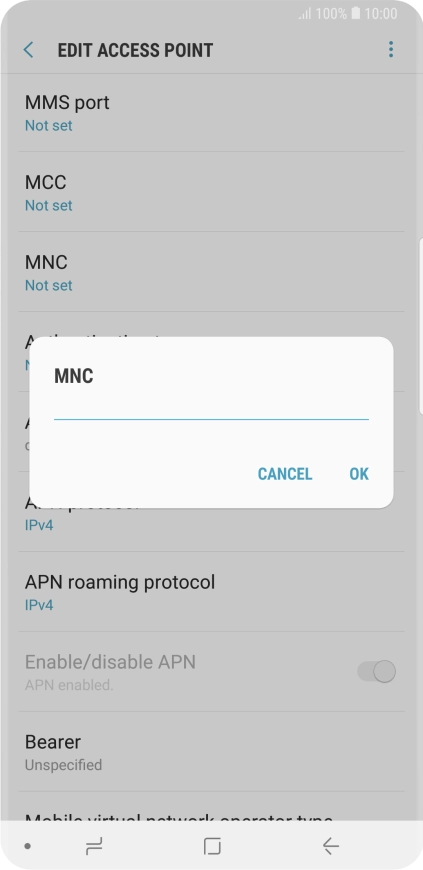

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-55cf33d5-2331-4c99-9d11-3f563ed52711.png?width=212&height=434)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dee03afd-3a5b-4fa3-82e5-40f89582b694.png?width=212&height=434)

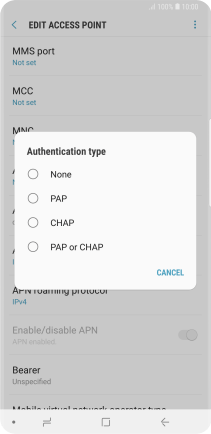

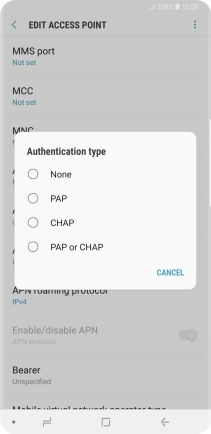

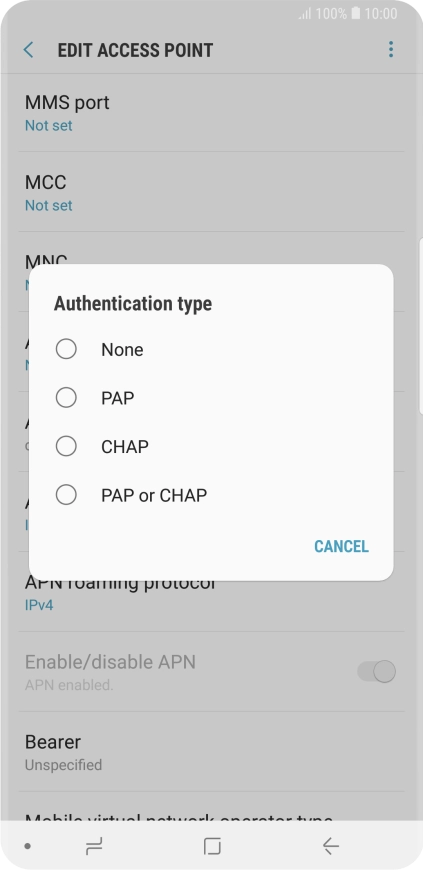

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-29017d65-d5f9-4fc8-9afb-89be4dc0f893.png?width=212&height=434)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dee03afd-3a5b-4fa3-82e5-40f89582b694.png?width=212&height=434)

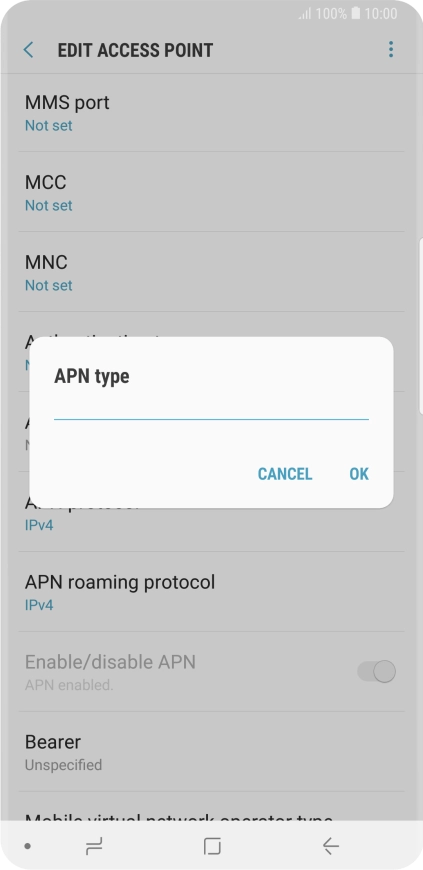

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cb8ac5e8-c48f-4b61-a7af-f8f301a13148.png?width=212&height=434)
mms
11. Save data connection

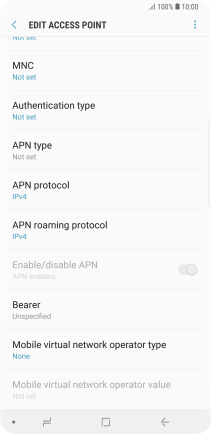

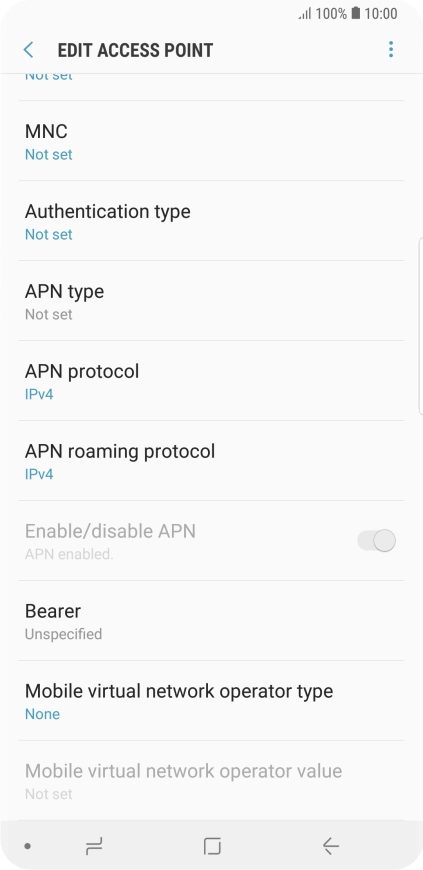

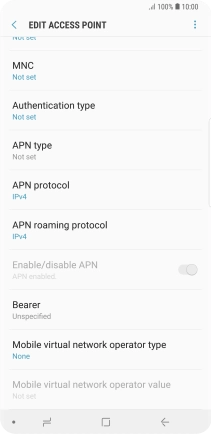

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5b966f75-13e4-4e38-921a-5d7b8cd5f260.png?width=212&height=434)

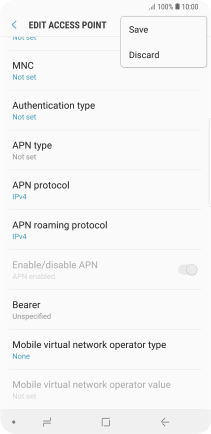

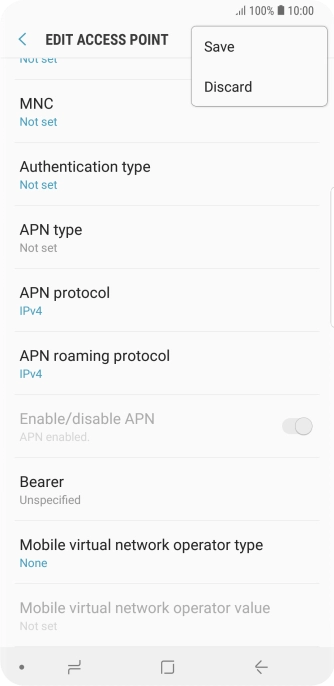

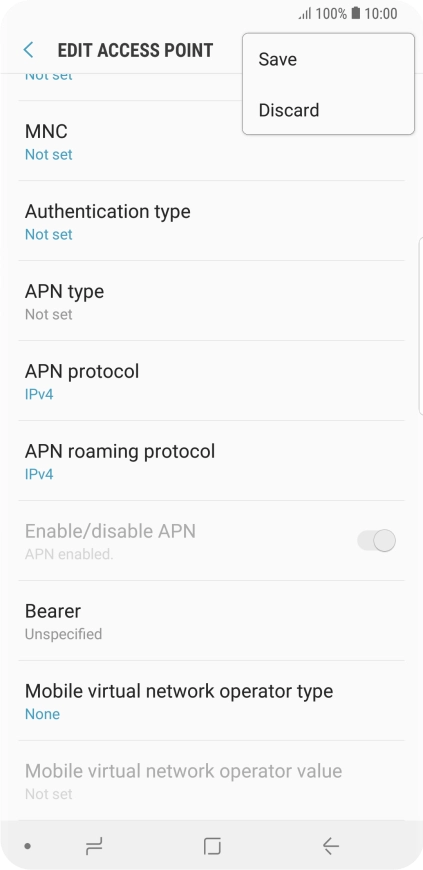

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c26a955b-5b46-4f5d-a967-7a16878ba6c5.png?width=212&height=434)
12. Return to the home screen

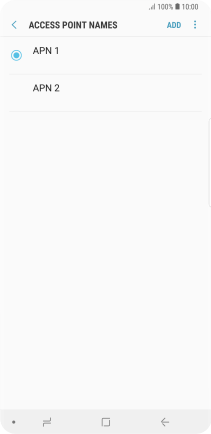

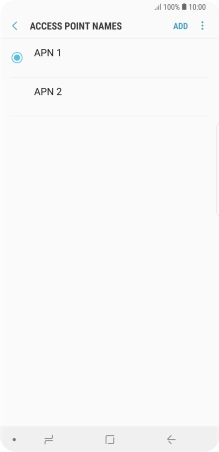

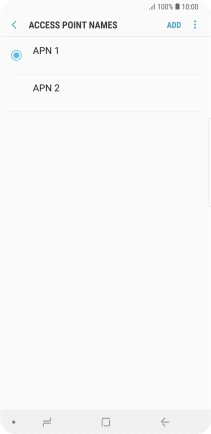

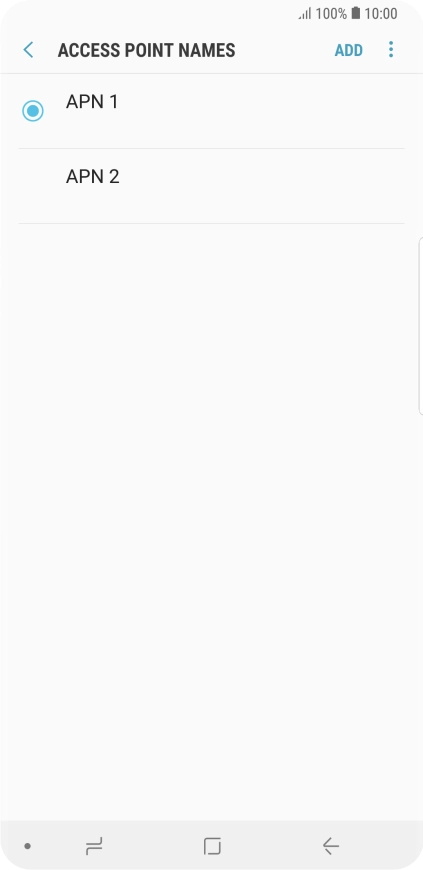

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7067b281-7d78-4c9c-a008-75103a548c7e.png?width=212&height=434)
