1. Find "Access Point Names"

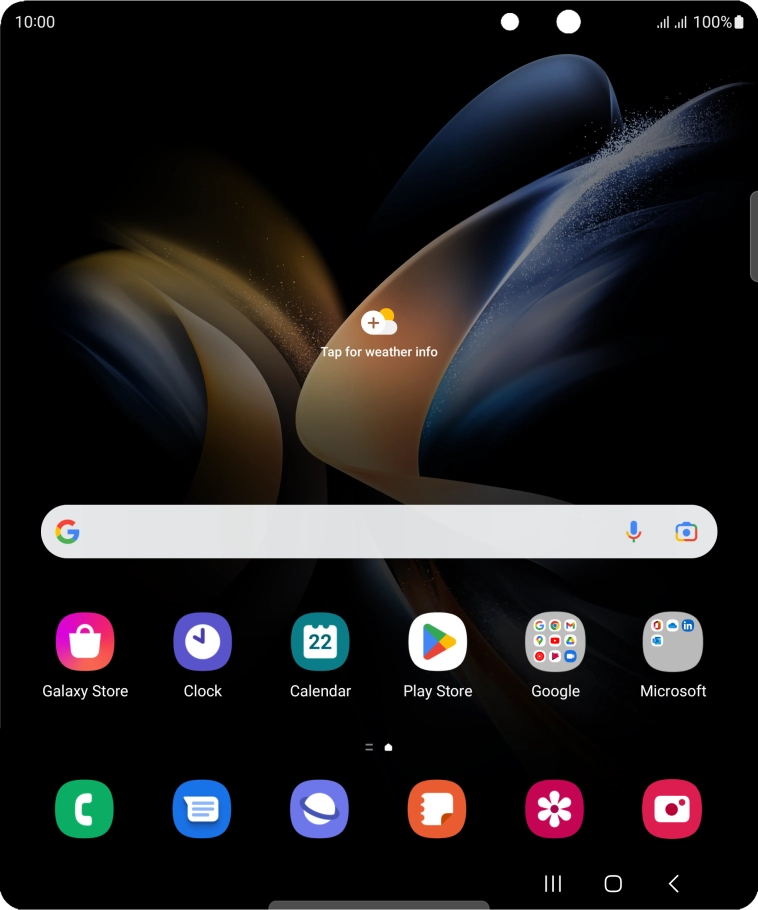

Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-3c58a191-ef36-44df-ac40-5e762f4e7176.png?width=378&height=456)

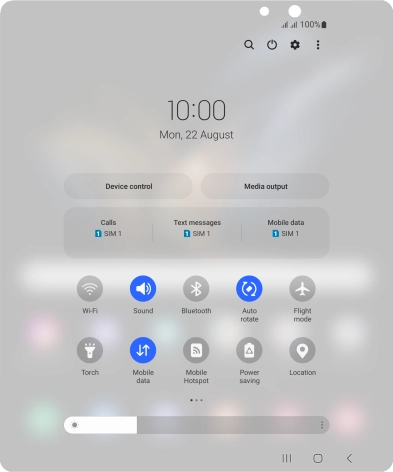

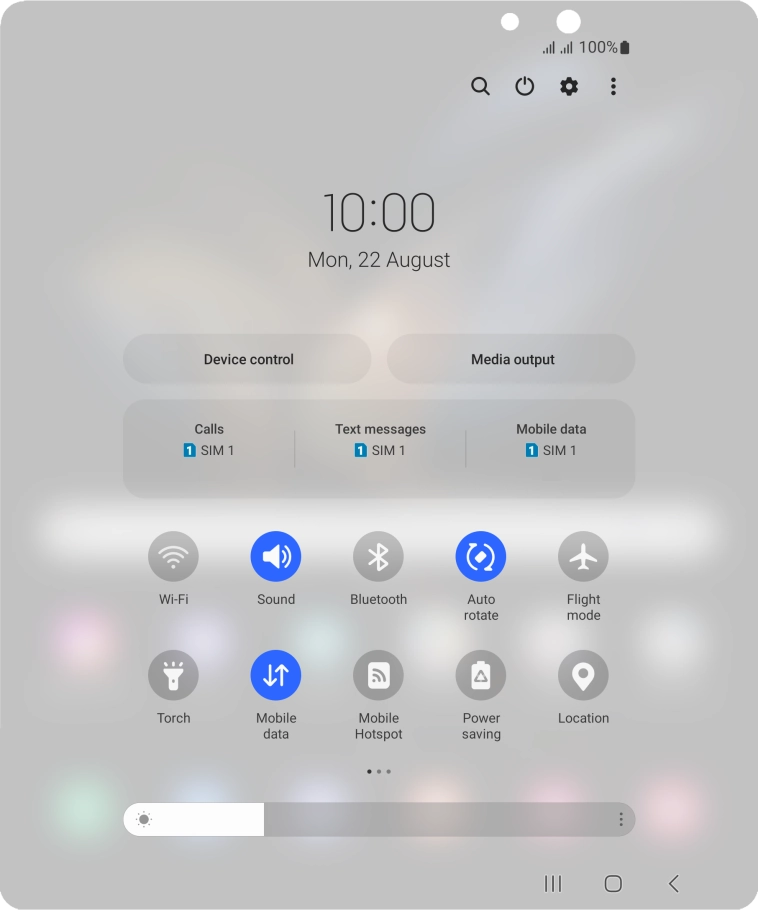

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-33e80bb5-24d6-4987-b372-9ae8f266ee47.png?width=378&height=456)

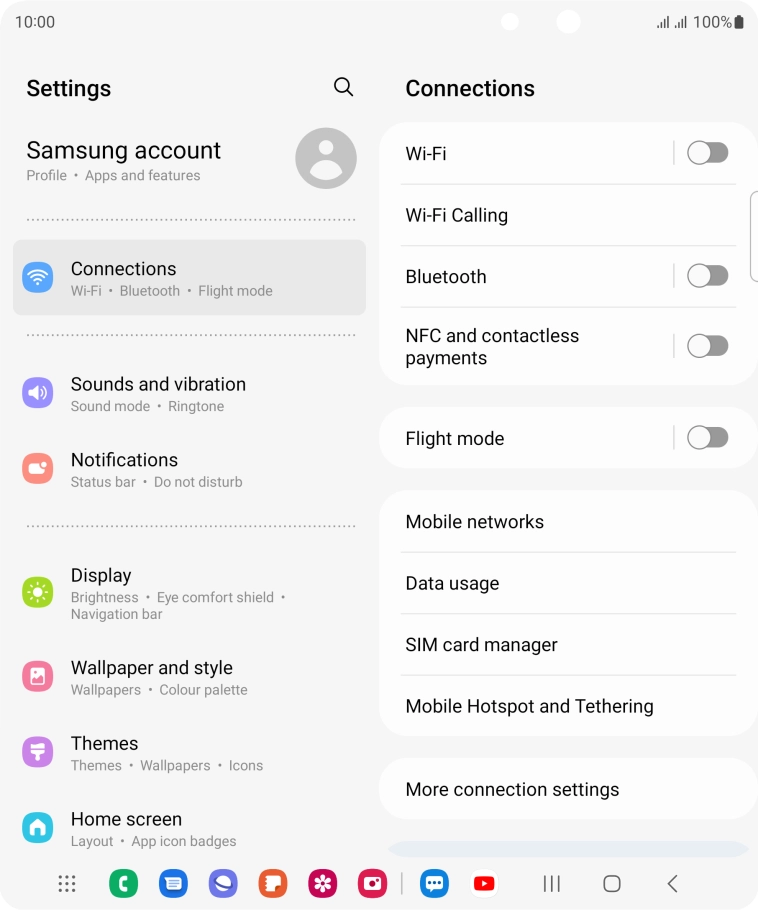

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-45b836f3-ce5c-4888-97bd-f689f68d6679.png?width=378&height=456)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-805659ee-acab-49d3-8929-fad3b1044635.png?width=378&height=456)

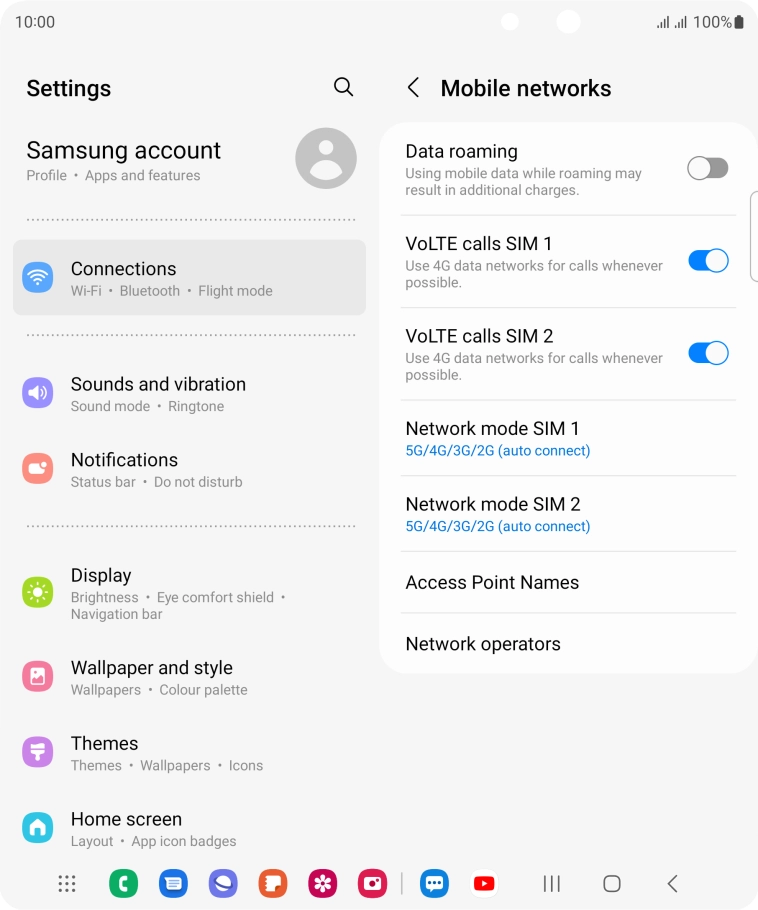

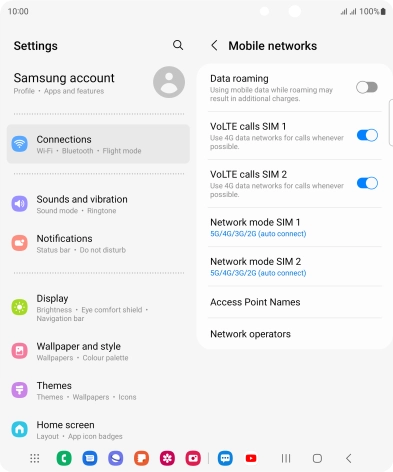

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-c0bda580-f038-4871-ae5a-22779a80bb3d.png?width=378&height=456)
2. Create new data connection

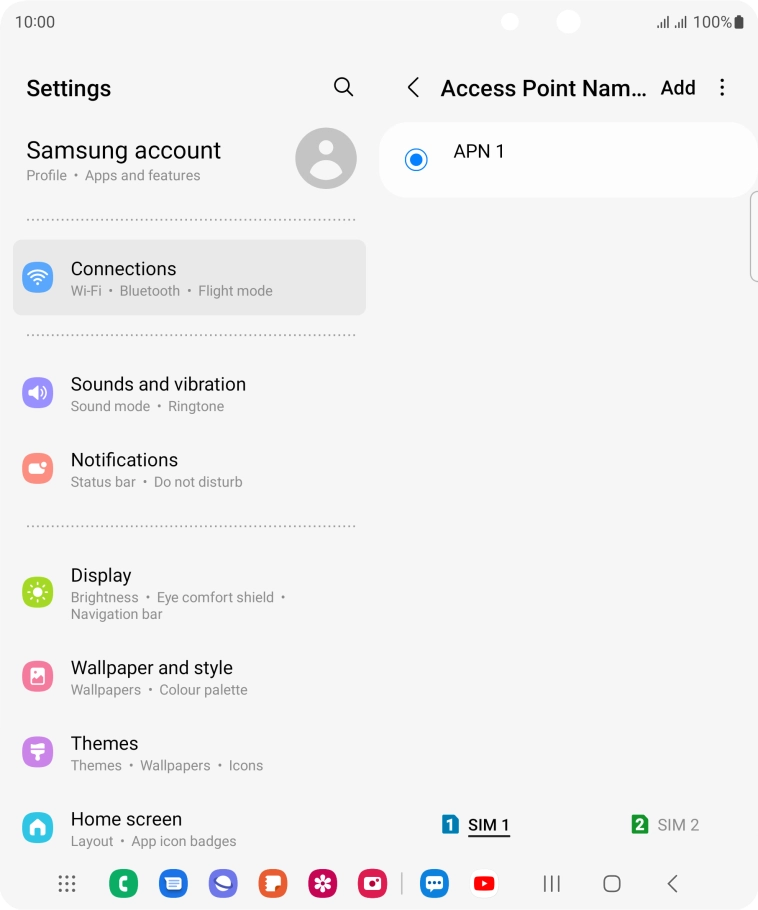

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-88b27c7c-1396-46c6-b870-a793ab6cdffd.png?width=378&height=456)

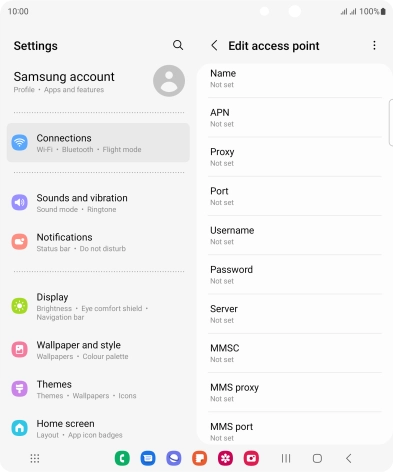

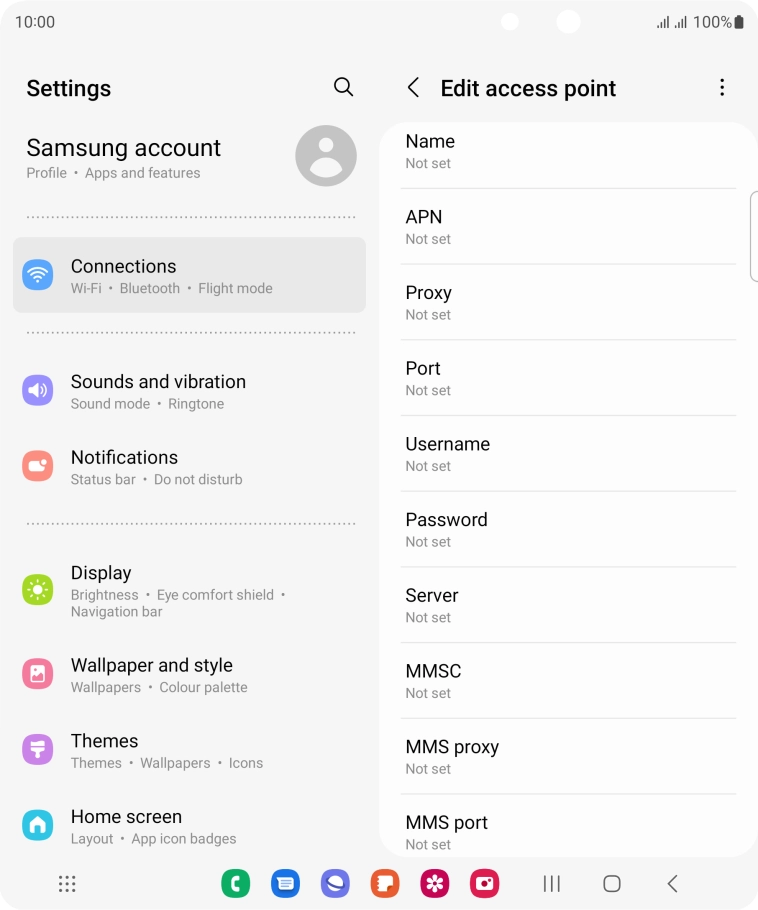

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-96e9101c-5edf-4cf4-a6a8-a4115c9aedd9.png?width=378&height=456)

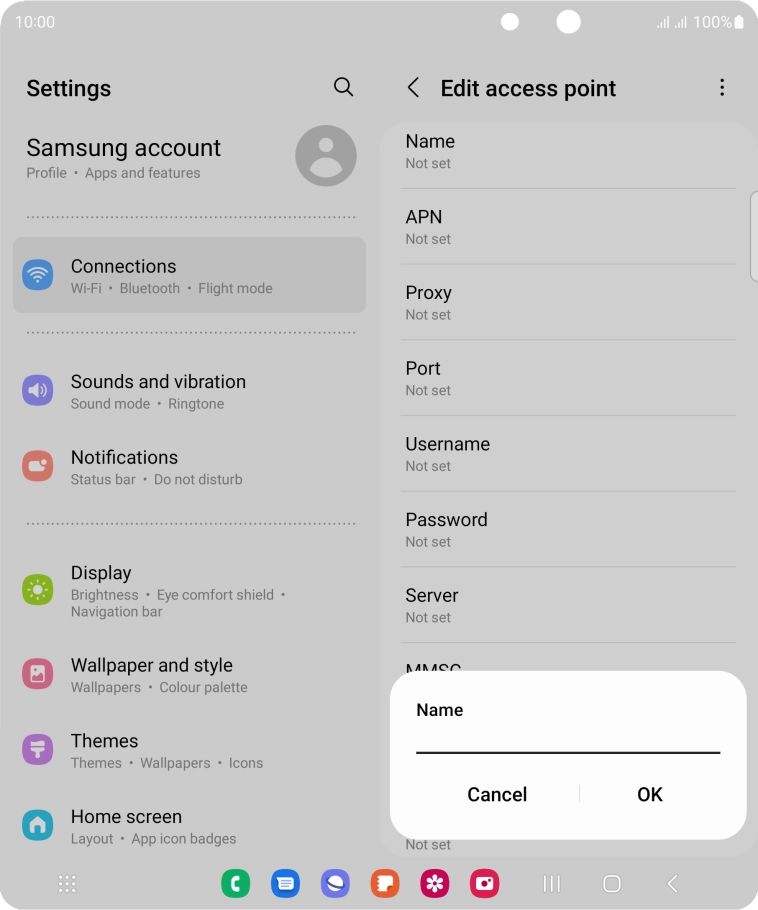

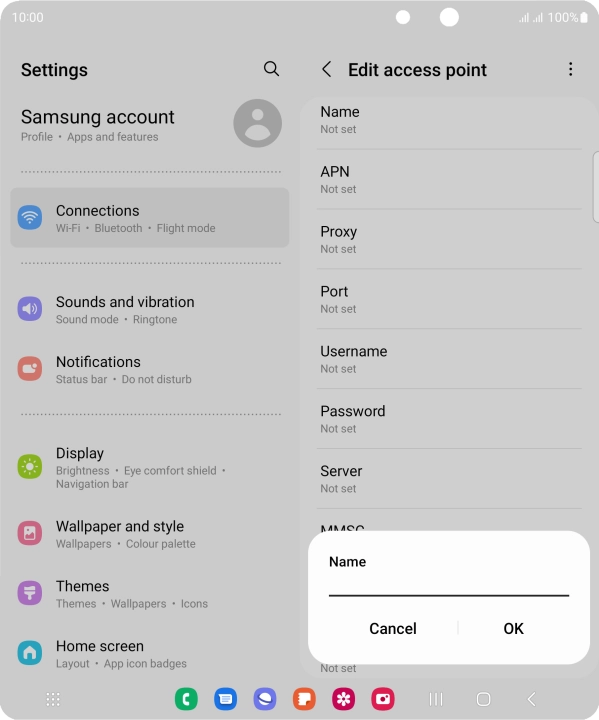

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-cf1e5feb-b6f4-4fed-8e45-3f20059654c2.png?width=378&height=456)
Vodafone Internet
3. Enter APN

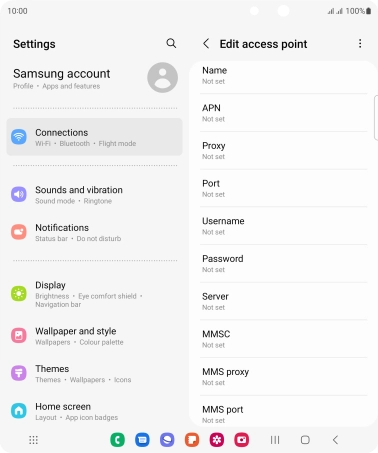

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-96e9101c-5edf-4cf4-a6a8-a4115c9aedd9.png?width=378&height=456)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-bd0aa290-e22d-4523-9cbc-1cdb3de32112.png?width=378&height=456)
live.vodafone.com
4. Enter IP address
Press Proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-96e9101c-5edf-4cf4-a6a8-a4115c9aedd9.png?width=378&height=456)

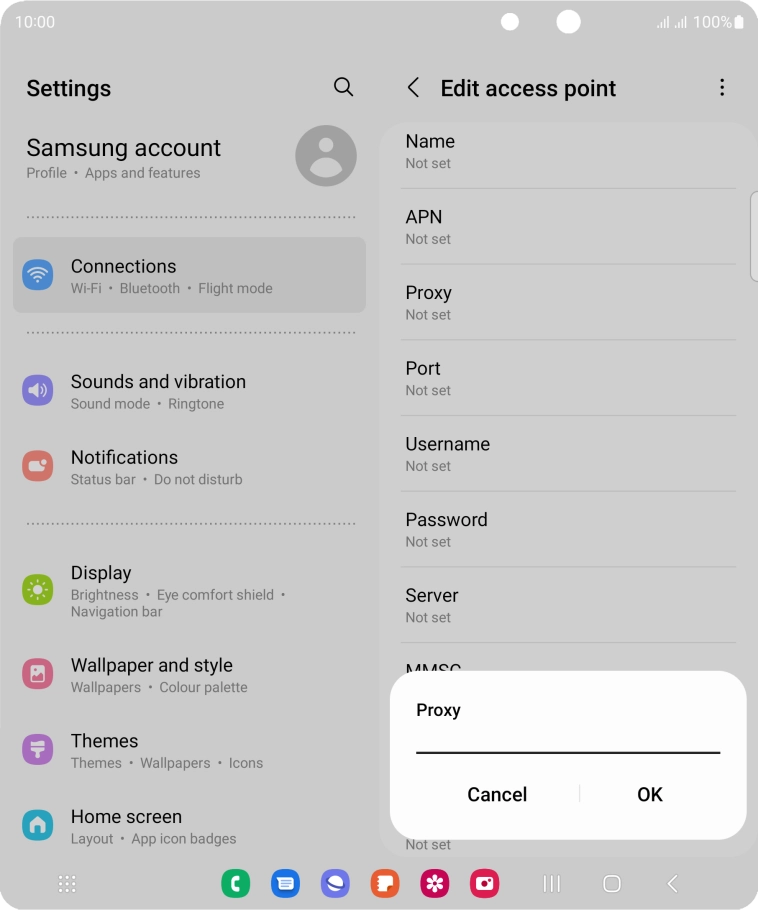

Key in 10.202.2.60 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-07586956-bb18-4b46-ab67-0d247f05b2bf.png?width=378&height=456)
10.202.2.60
5. Enter port number
Press Port.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-96e9101c-5edf-4cf4-a6a8-a4115c9aedd9.png?width=378&height=456)
Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-bb71062d-812d-4244-9629-898384356011.png?width=378&height=456)
8080
6. Enter country code

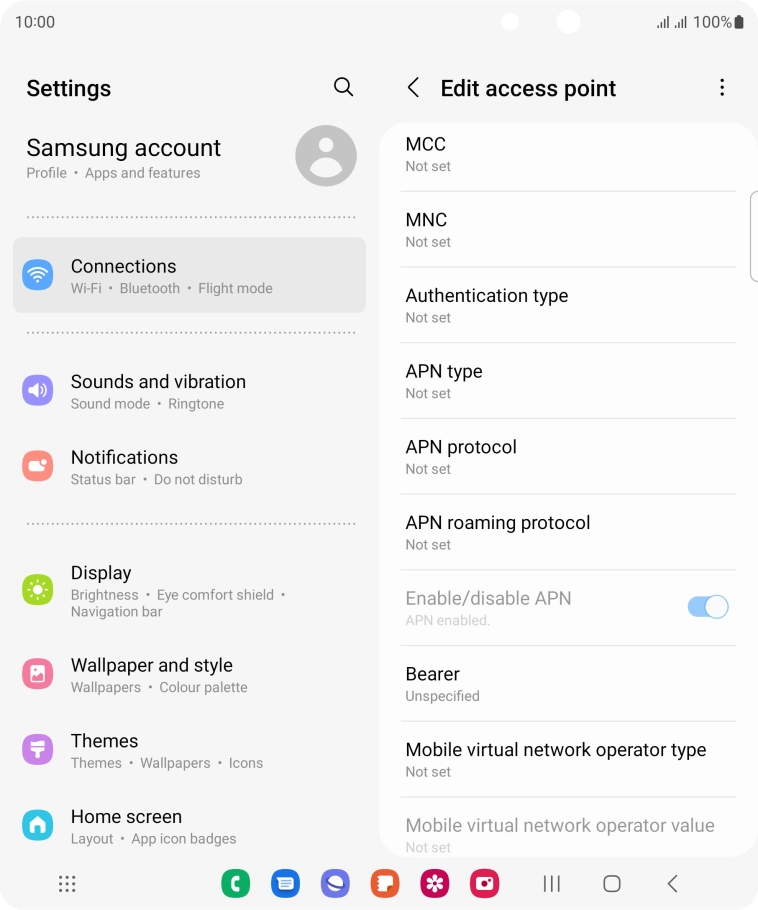

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-d172f946-bca5-4044-9a66-aa1cee5bfeb4.png?width=378&height=456)

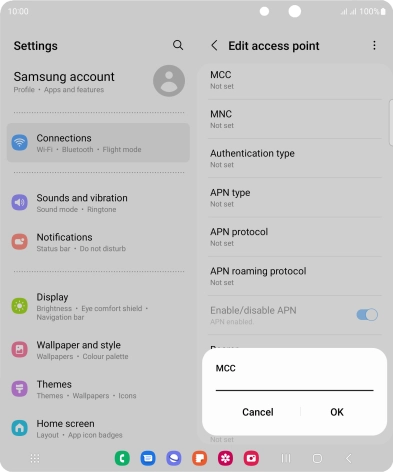

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-c9c34a54-bc1a-483a-935d-045f378439a3.png?width=378&height=456)
505
7. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-d172f946-bca5-4044-9a66-aa1cee5bfeb4.png?width=378&height=456)

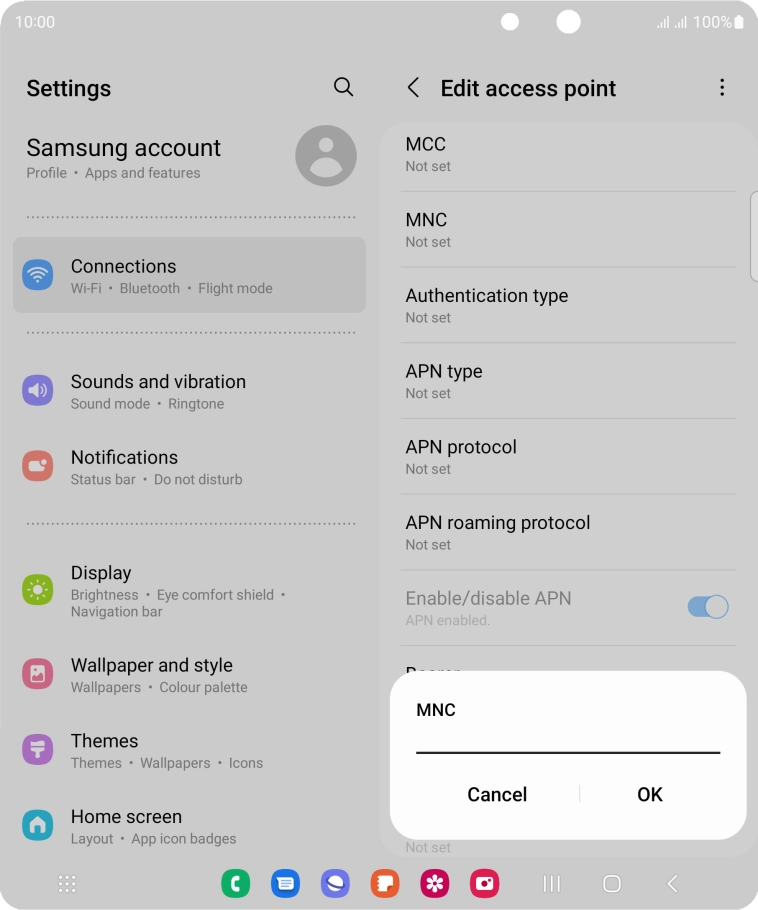

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-a0bf03d1-2160-491e-856c-6af7564e7907.png?width=378&height=456)
03
8. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-d172f946-bca5-4044-9a66-aa1cee5bfeb4.png?width=378&height=456)

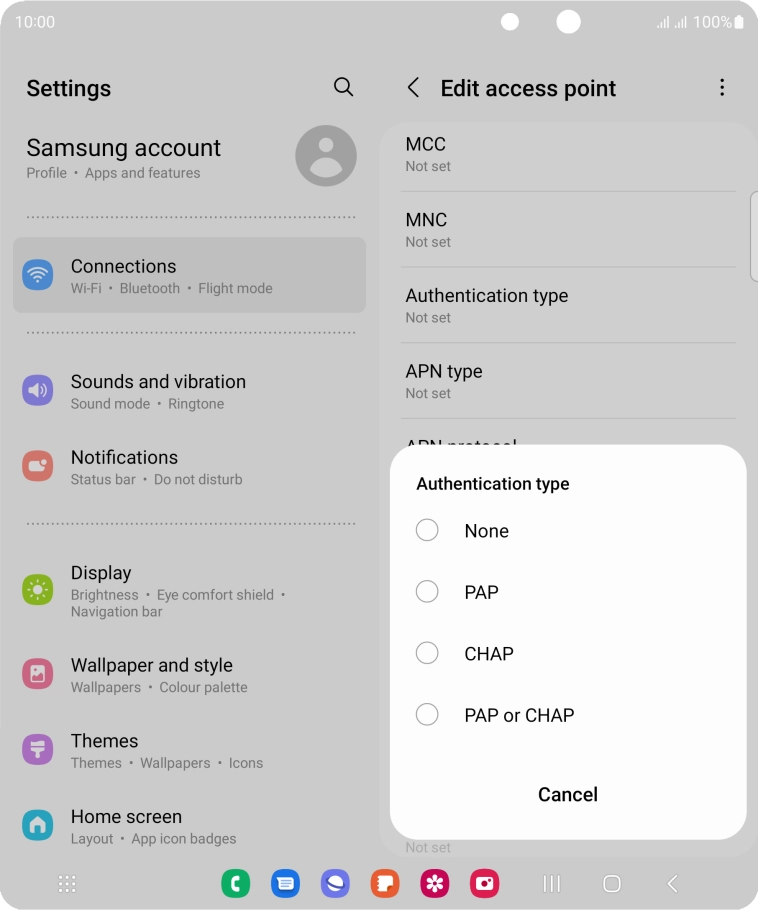

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-eb08b576-76a4-418d-b088-e818078fb866.png?width=378&height=456)
9. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-d172f946-bca5-4044-9a66-aa1cee5bfeb4.png?width=378&height=456)
Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-3477e8d6-37d2-4981-a491-7b8e7519e231.png?width=378&height=456)
default
10. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-d172f946-bca5-4044-9a66-aa1cee5bfeb4.png?width=378&height=456)

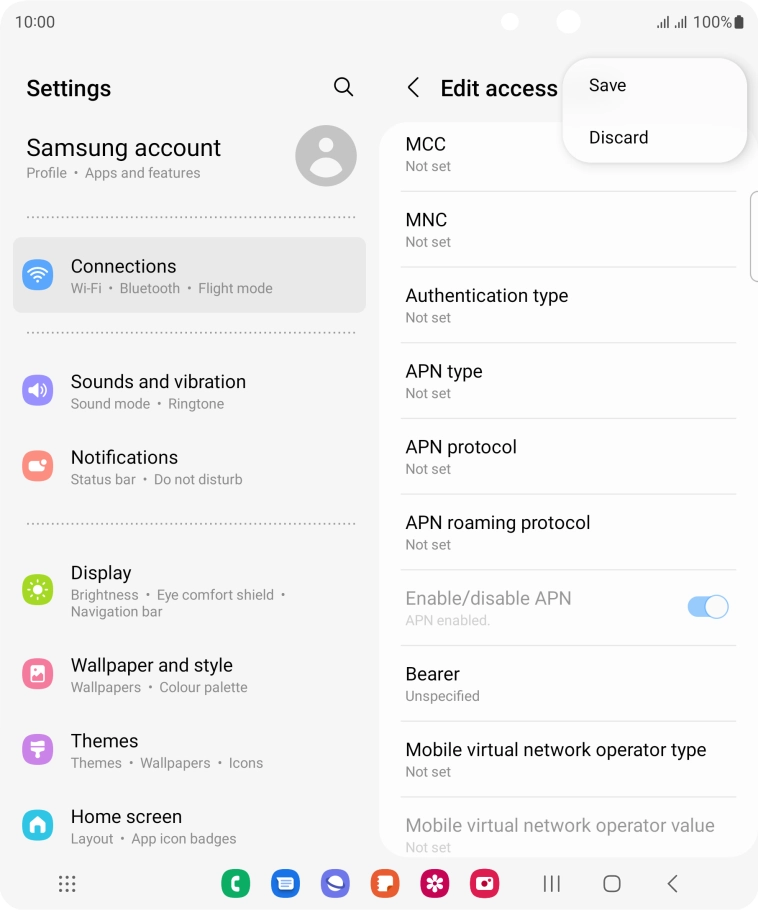

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-9e1156ad-b9a5-403d-aa17-007f28d62cd2.png?width=378&height=456)

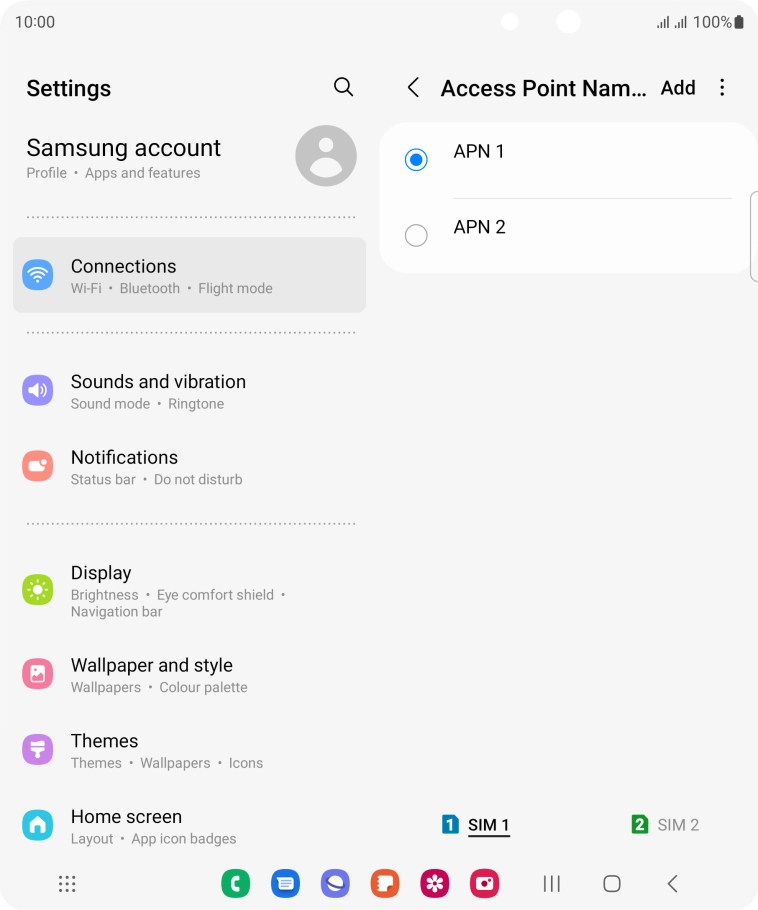

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-15547eaa-b6ef-4185-95de-111f14157c56.png?width=378&height=456)
11. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7290822-f-878cb401-38be-4a0d-b6eb-e52ee343ff07.png?width=378&height=456)
