Set up your phone for web-based email - Sony Xperia Z

Read help info

You can send and retrieve email messages from a web-based email account, such as Hotmail, Yahoo! Mail and Gmail. Follow these instructions to set up your phone for web-based email.
Before you can set up your phone for web-based email, you need an account with the required email provider. If you don't have an account, you can set one up on the web page of the email provider.

Please note that the steps below are based on a web-based email account. If you have a POP3 email account, you need to use the settings for POP3 email. Click here for information on how to set up your phone for POP3 email.

Step 1 of 43

Find "Access Point Names"

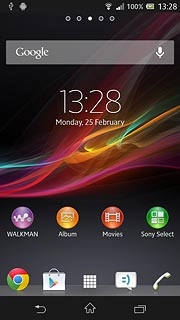

Press the menu icon.

Step 2 of 43

Find "Access Point Names"

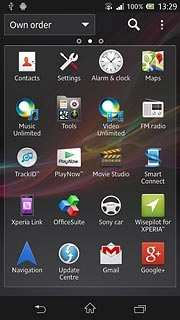

Press Settings.

Step 3 of 43

Find "Access Point Names"

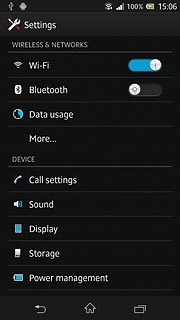

Press More....

Step 4 of 43

Find "Access Point Names"

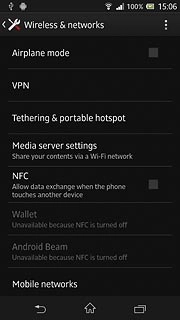

Press Mobile networks.

Step 5 of 43

Find "Access Point Names"

Press Access Point Names.

Step 6 of 43

Create new data connection

Press the menu icon.

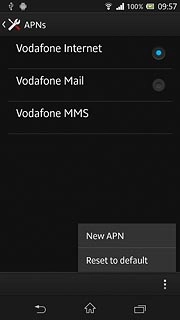

Step 7 of 43

Create new data connection

Press New APN.

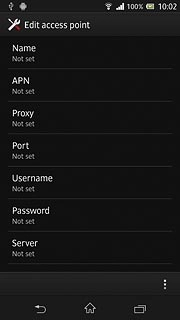

Step 8 of 43

Enter data connection name

Press Name.

Step 9 of 43

Enter data connection name

Key in Vodafone Mail and press OK.

Step 10 of 43

Enter APN

Press APN.

An APN is used to establish a data connection.
Step 11 of 43

Enter APN

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection.
Step 12 of 43

Enter country code

Press MCC.

Step 13 of 43

Enter country code

Key in 505 and press OK.

Step 14 of 43

Enter network code

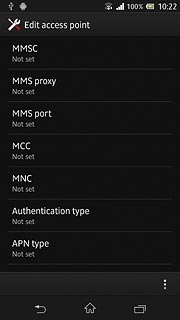

Press MNC.

Step 15 of 43

Enter network code

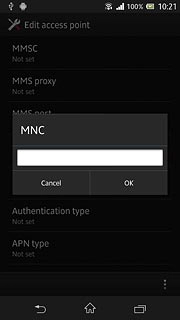

Key in 03 and press OK.

Step 16 of 43

Select authentication type

Press Authentication type.

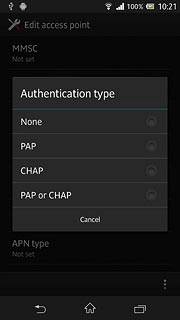

Step 17 of 43

Select authentication type

Press PAP.

Step 18 of 43

Select APN type

Press APN type.

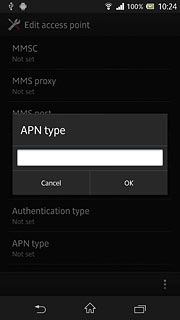

Step 19 of 43

Select APN type

Key in default and press OK.

Step 20 of 43

Save and activate data connection

Press the menu icon.

Step 21 of 43

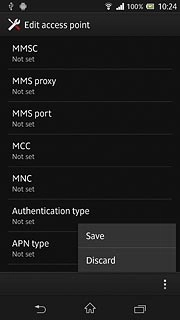

Save and activate data connection

Press Save.

Step 22 of 43

Save and activate data connection

Press the field next to Vodafone Mail to activate the data connection.

Step 23 of 43

Save and activate data connection

When the field is marked, the data connection is activated.

Step 24 of 43

Save and activate data connection

Press the home icon to return to standby mode.

Step 25 of 43

Find "Email"

Press the menu icon.

If email accounts have been created already, press the menu icon. Press Settings. Press ADD ACCOUNT.

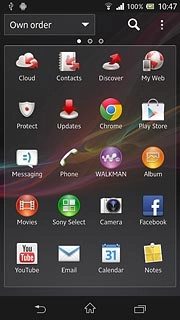

Step 26 of 43

Find "Email"

Press Email.

If email accounts have been created already, press the menu icon. Press Settings. Press ADD ACCOUNT.

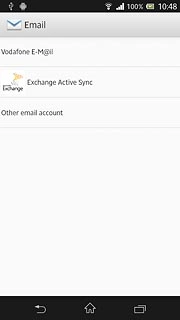

Step 27 of 43

Create new email account

Press Other email account.

Sony Xperia Z
Step 28 of 43

Enter email address

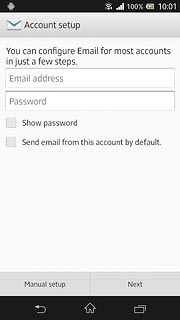

Key in your email address (such as name@provider.com).

Step 29 of 43

Enter password

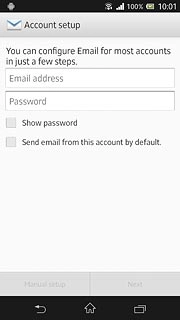

Press Password and key in the password for your email account at your email provider.

Step 30 of 43

Enter password

Press Next.
The email account is created.

Step 31 of 43

Select setting for retrieving new email messages

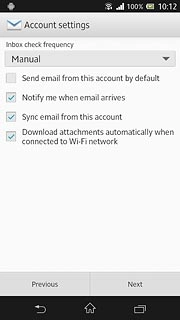

Press the drop down list below Inbox check frequency.

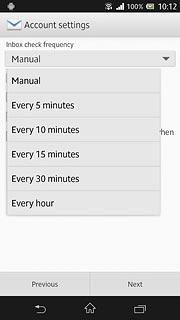

Step 32 of 43

Select setting for retrieving new email messages

Press Manual or the required setting.

Step 33 of 43

Select default email account

Press Send email from this account by default to select a default email account.

Step 34 of 43

Select default email account

When the box next to the menu item is ticked (V), the function is turned on.

Step 35 of 43

Turn email message notification on or off

Press Notify me when email arrives to turn the function on or off.

Step 36 of 43

Turn email message notification on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 37 of 43

Turn email message synchronisation on or off

Press Sync email from this account to turn the function on or off.

Step 38 of 43

Turn email message synchronisation on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 39 of 43

Turn email message synchronisation on or off

Press Next.

Sony Xperia Z
Step 40 of 43

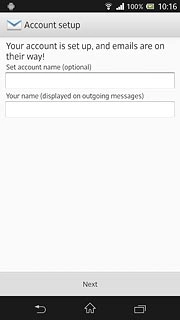

Enter email account name

Key in a name for the email account.

Step 41 of 43

Enter sender name

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Step 42 of 43

Retrieve email messages

Press Next.
Wait while your phone retrieves new email messages.

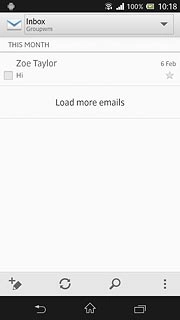

Step 43 of 43

Exit

Press the home icon to return to standby mode.

Find "Access Point Names"

Press the menu icon.
Press Settings.
Press More....
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the menu icon.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

Enter APN

Press APN.
An APN is used to establish a data connection.
Key in live.vodafone.com and press OK.
An APN is used to establish a data connection.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 03 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Key in default and press OK.

Save and activate data connection

Press the menu icon.
Press Save.
Press the field next to Vodafone Mail to activate the data connection.
When the field is marked, the data connection is activated.
Press the home icon to return to standby mode.

Find "Email"

Press the menu icon.
If email accounts have been created already, press the menu icon. Press Settings. Press ADD ACCOUNT.
Press Email.
If email accounts have been created already, press the menu icon. Press Settings. Press ADD ACCOUNT.

Create new email account

Press Other email account.

Enter email address

Key in your email address (such as name@provider.com).
Sony Xperia Z

Enter password

Press Password and key in the password for your email account at your email provider.
Press Next.
The email account is created.

Select setting for retrieving new email messages

Press the drop down list below Inbox check frequency.
Press Manual or the required setting.

Select default email account

Press Send email from this account by default to select a default email account.
When the box next to the menu item is ticked (V), the function is turned on.

Turn email message notification on or off

Press Notify me when email arrives to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.

Turn email message synchronisation on or off

Press Sync email from this account to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.
Press Next.

Enter email account name

Key in a name for the email account.
Sony Xperia Z

Enter sender name

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Retrieve email messages

Press Next.
Wait while your phone retrieves new email messages.

Exit

Press the home icon to return to standby mode.
