1. Find "Access point names"

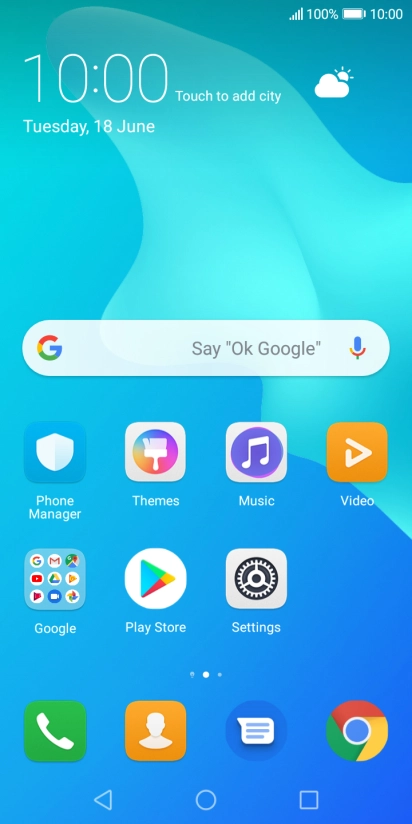

Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-bfec3d4e-595c-4b52-b7ab-39742b9e3cd1.png?width=206&height=412)

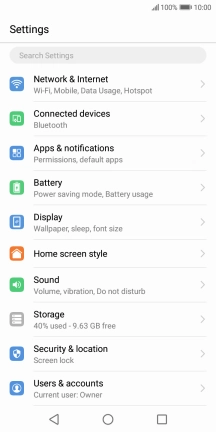

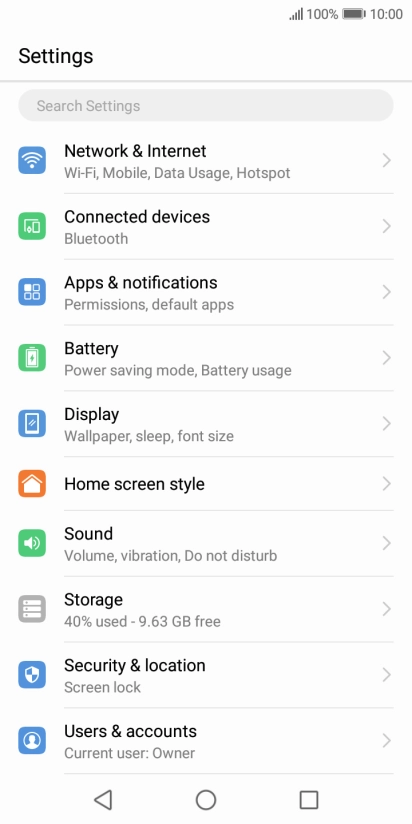

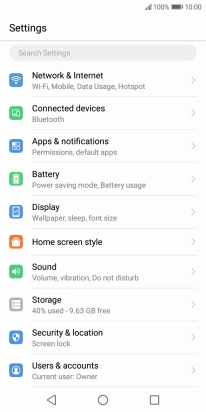

Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a9cdc2e6-9e81-4f88-b095-3f3e00ef0de5.png?width=206&height=412)

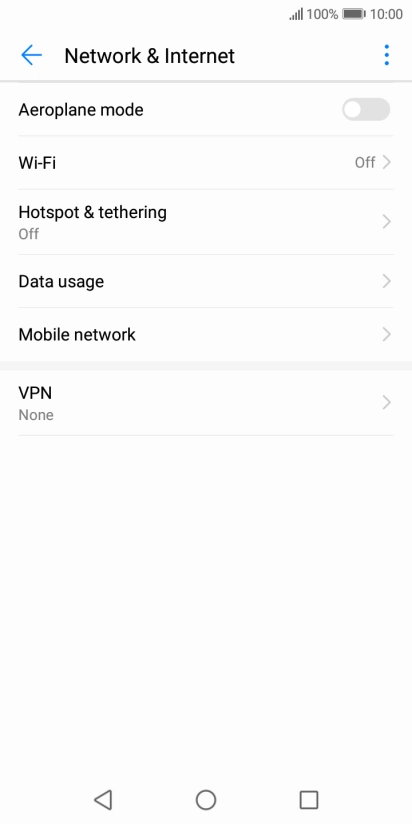

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0e27152a-759b-4bc4-80d8-68f82e724d74.png?width=206&height=412)

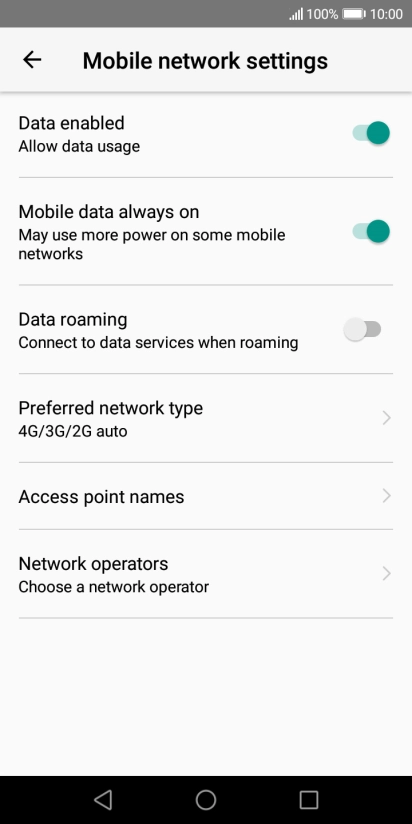

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3559a2b2-059a-41aa-82e4-80631efad820.png?width=206&height=412)
2. Create new data connection

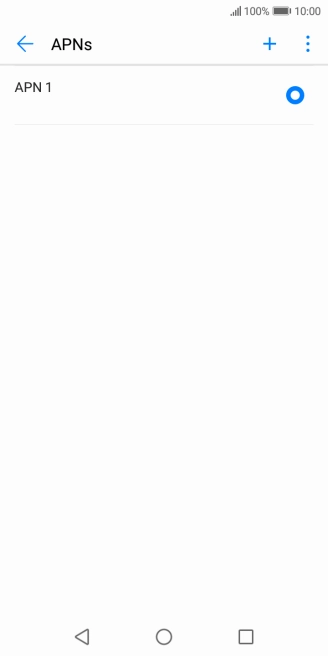

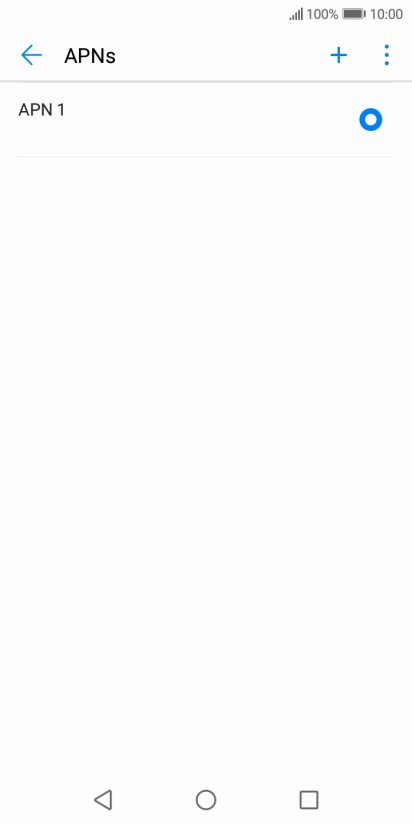

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a1dac533-5f6c-496f-85c5-11bce8e55b3c.png?width=206&height=412)

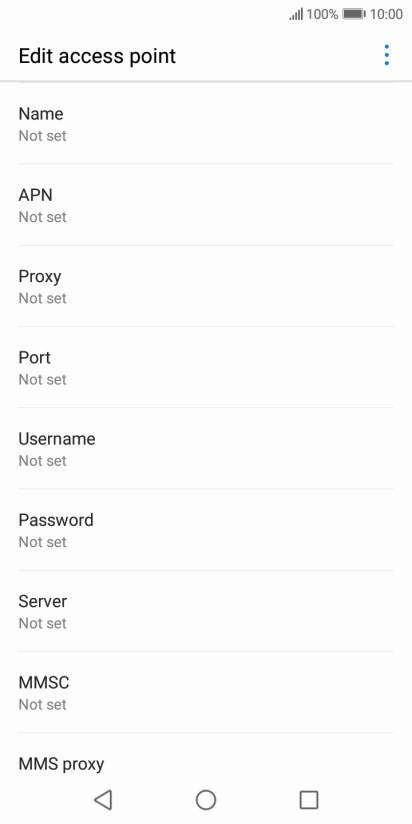

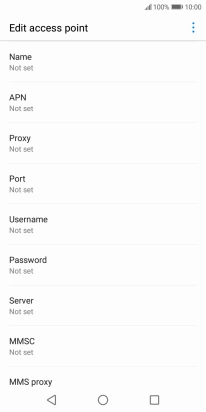

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-acada722-cbd4-4bbb-b4e2-22fb9c8e2ff6.png?width=206&height=412)

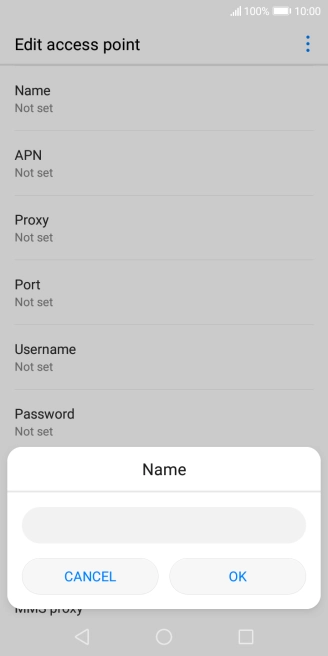

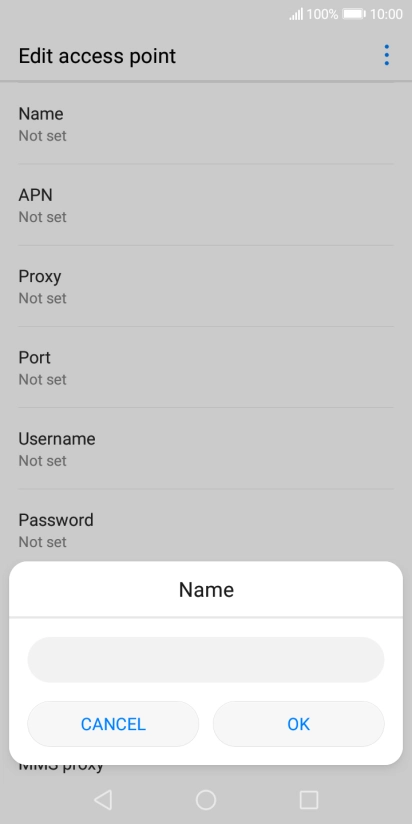

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a1f1d452-3700-4f60-af74-21a21211fdcb.png?width=206&height=412)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-acada722-cbd4-4bbb-b4e2-22fb9c8e2ff6.png?width=206&height=412)

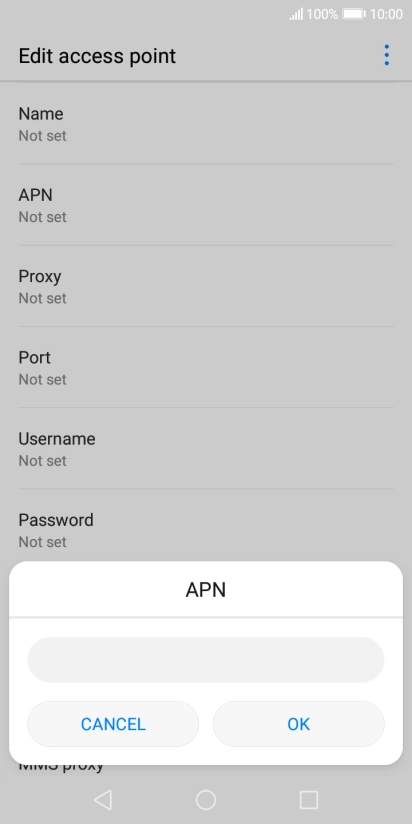

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-606d5554-400a-4edd-8d9b-006395035d7d.png?width=206&height=412)
live.vodafone.com
4. Enter country code

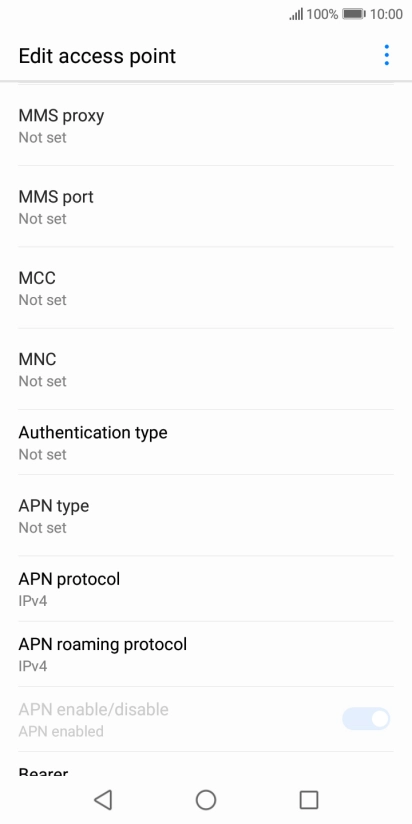

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-768bf20e-922b-4e40-878b-3c576ac3b3b0.png?width=206&height=412)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cc43f477-425c-41e1-bdcb-455c5e0b6e80.png?width=206&height=412)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-768bf20e-922b-4e40-878b-3c576ac3b3b0.png?width=206&height=412)

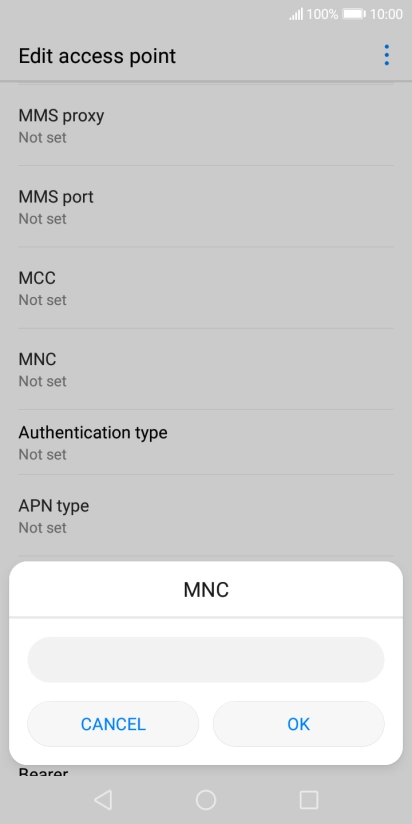

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-bd25a18b-f9cc-4fb0-9b50-f4ec270cefc2.png?width=206&height=412)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-768bf20e-922b-4e40-878b-3c576ac3b3b0.png?width=206&height=412)

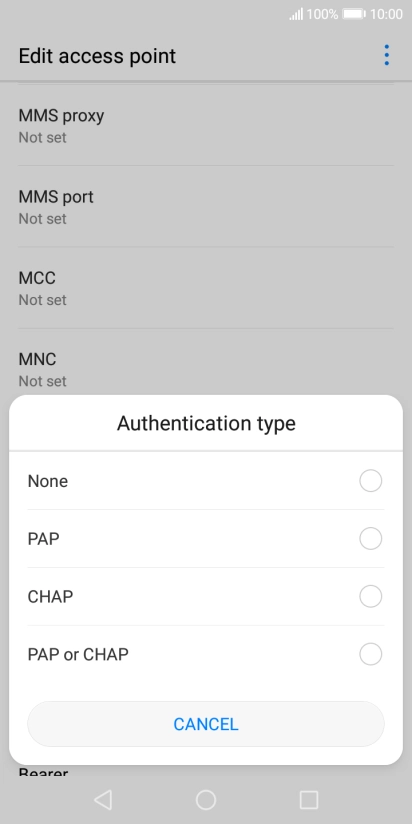

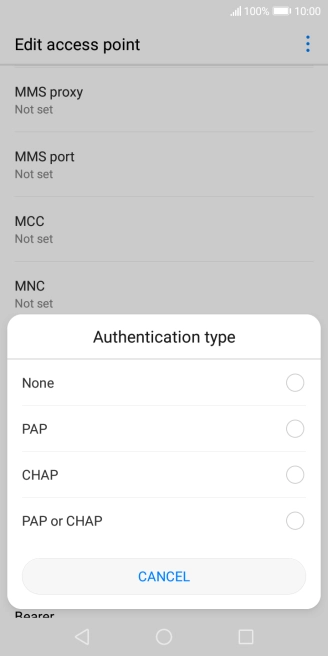

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d5ba38a3-215d-45c8-8726-81502a846194.png?width=206&height=412)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-768bf20e-922b-4e40-878b-3c576ac3b3b0.png?width=206&height=412)

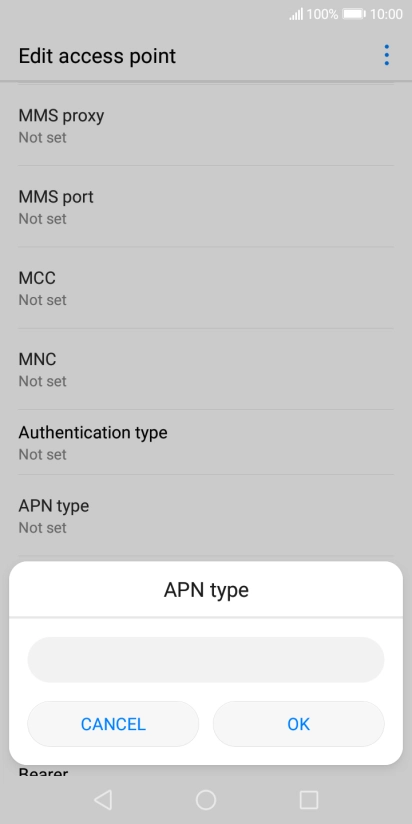

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b56cfb03-a7a1-448a-b649-7b52ee61ae10.png?width=206&height=412)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-768bf20e-922b-4e40-878b-3c576ac3b3b0.png?width=206&height=412)

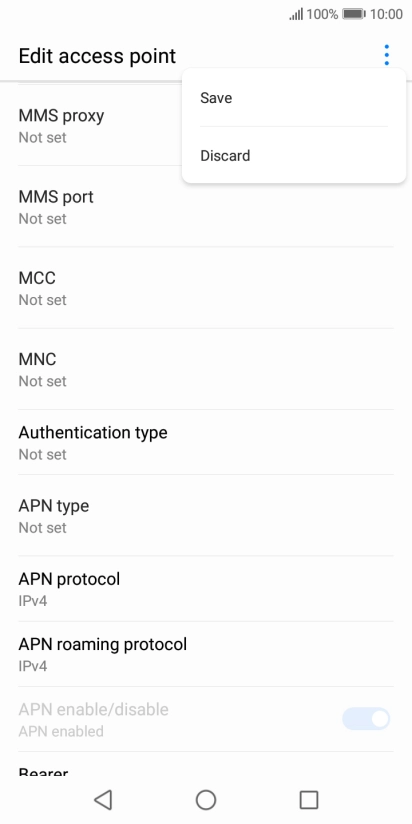

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-186e1da3-a929-483c-af48-016767d34229.png?width=206&height=412)

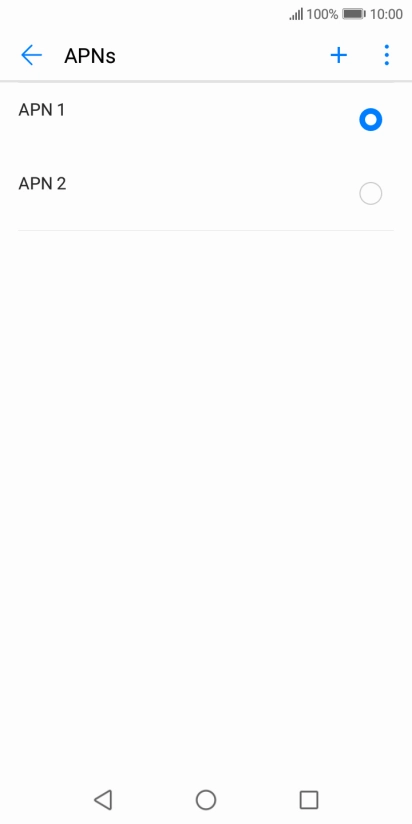

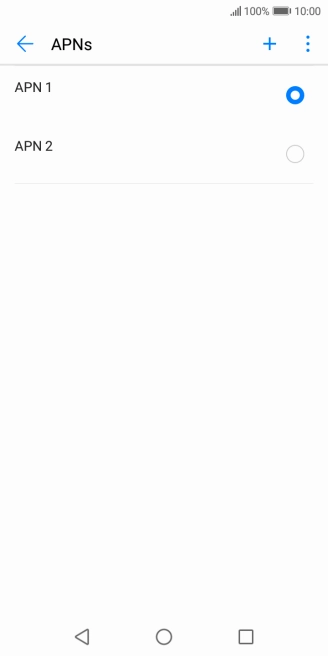

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-797a2b92-573b-4f3f-a495-a7b05eeaab5e.png?width=206&height=412)
9. Return to the home screen

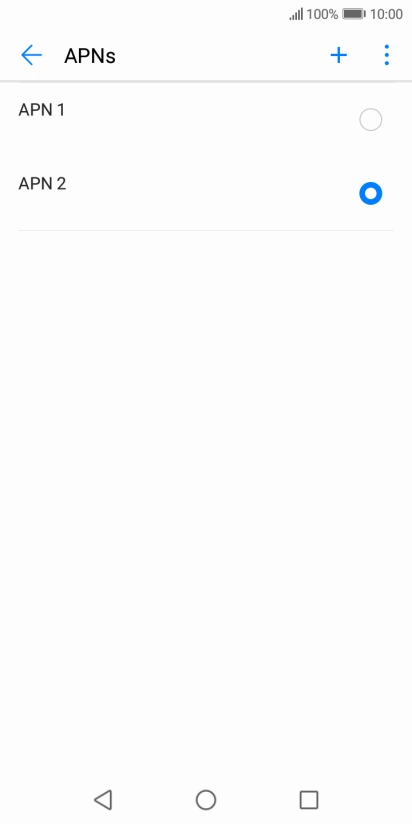

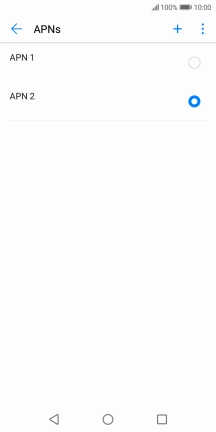

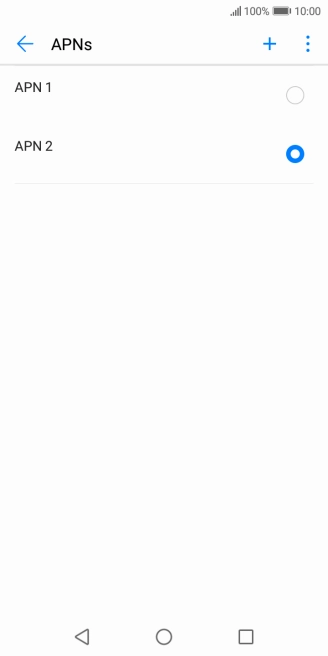

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4e136c6e-a836-46bf-a30d-a1c04871ca79.png?width=206&height=412)
