Huawei Y5 2018

Huawei Y5 2018

Android 8.1

Set up your Huawei Y5 2018 Android 8.1 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 26

1. Find "Access point names"

Press Settings.

Step 2 of 26

1. Find "Access point names"

Press Network & Internet.

Step 3 of 26

1. Find "Access point names"

Press Mobile network.

Step 4 of 26

1. Find "Access point names"

Press Access point names.

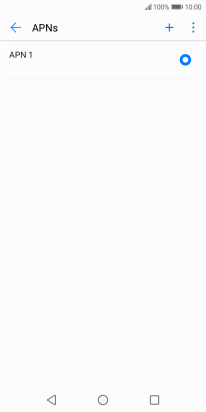

Step 5 of 26

2. Create new data connection

Press the new data connection icon.

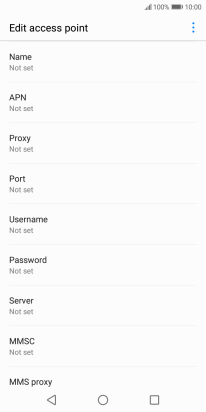

Step 6 of 26

2. Create new data connection

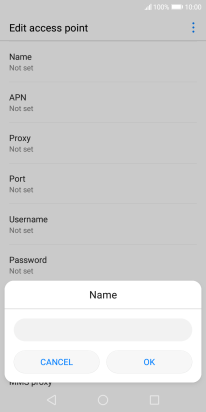

Press Name.

Vodafone MMS
Step 7 of 26

2. Create new data connection

Key in Vodafone MMS and press OK.

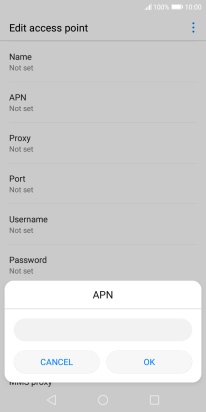

Step 8 of 26

3. Enter APN

Press APN.

live.vodafone.com
Step 9 of 26

3. Enter APN

Key in live.vodafone.com and press OK.

Step 10 of 26

4. Enter MMSC

Press MMSC.

http://pxt.vodafone.net.au/pxtsend
Step 11 of 26

4. Enter MMSC

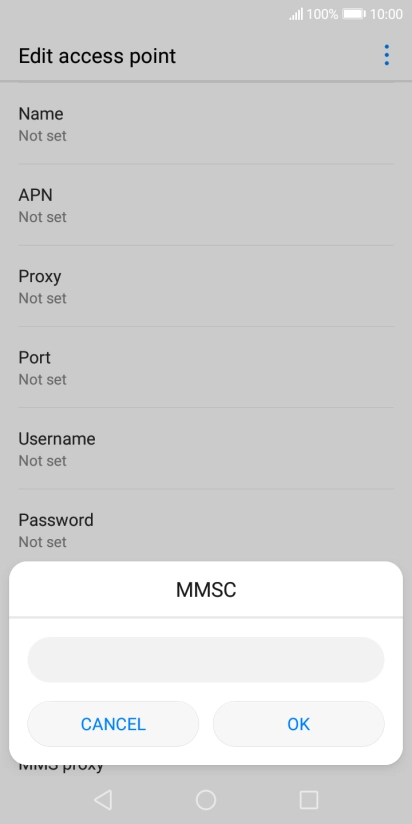

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 12 of 26

5. Enter IP address

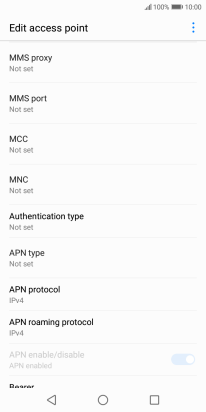

Press MMS proxy.

10.202.002.060
Step 13 of 26

5. Enter IP address

Key in 10.202.002.060 and press OK.

Step 14 of 26

6. Enter port number

Press MMS port.

8080
Step 15 of 26

6. Enter port number

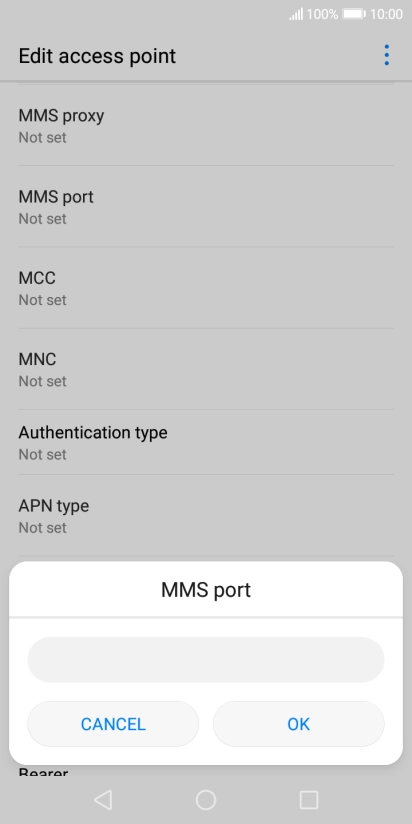

Key in 8080 and press OK.

Step 16 of 26

7. Enter country code

Press MCC.

505
Step 17 of 26

7. Enter country code

Key in 505 and press OK.

Step 18 of 26

8. Enter network code

Press MNC.

03

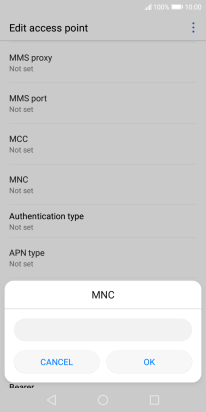

Step 19 of 26

8. Enter network code

Key in 03 and press OK.

Step 20 of 26

9. Select authentication type

Press Authentication type.

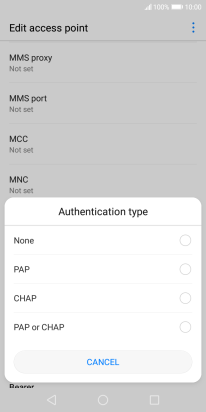

Step 21 of 26

9. Select authentication type

Press PAP.

Step 22 of 26

10. Enter APN type

Press APN type.

mms

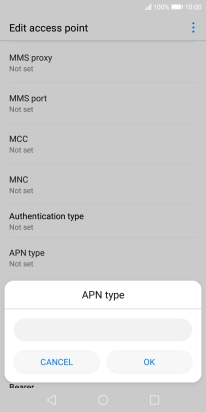

Step 23 of 26

10. Enter APN type

Key in mms and press OK.

Step 24 of 26

11. Save data connection

Press the menu icon.

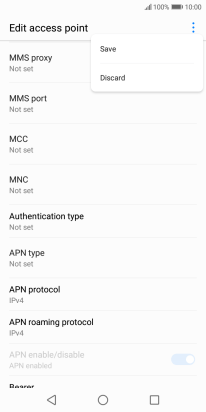

Step 25 of 26

11. Save data connection

Press Save.

Step 26 of 26

12. Return to the home screen

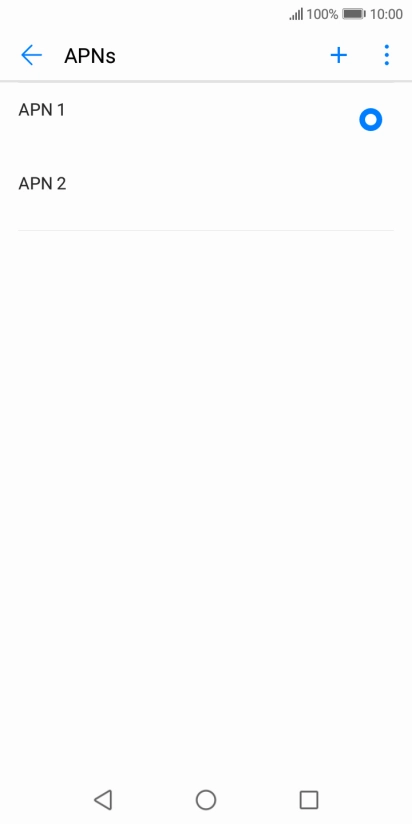

Press the Home key to return to the home screen.

1. Find "Access point names"

Press Settings.
Press Network & Internet.
Press Mobile network.
Press Access point names.

2. Create new data connection

Press the new data connection icon.
Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

3. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

4. Enter MMSC

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
http://pxt.vodafone.net.au/pxtsend

5. Enter IP address

Press MMS proxy.
Key in 10.202.002.060 and press OK.
10.202.002.060

6. Enter port number

Press MMS port.
Key in 8080 and press OK.
8080

7. Enter country code

Press MCC.
Key in 505 and press OK.
505

8. Enter network code

Press MNC.
Key in 03 and press OK.
03

9. Select authentication type

Press Authentication type.
Press PAP.

10. Enter APN type

Press APN type.
Key in mms and press OK.
mms

11. Save data connection

Press the menu icon.
Press Save.

12. Return to the home screen

Press the Home key to return to the home screen.
