1. Find "Access point names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a11249dc-75f9-4aad-836d-7faa66d4990f.png?width=212&height=376)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f6e09dae-19ff-4e63-bf9f-6434c4bb52a6.png?width=212&height=376)

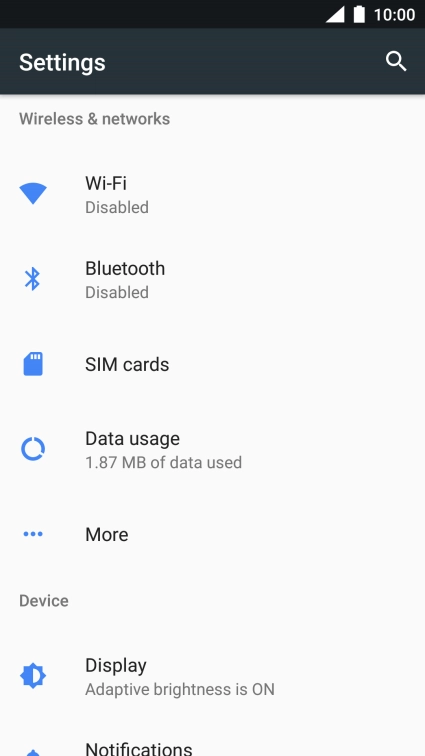

Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1ce33f05-27cc-4c4c-b21b-4cd82c1c6efe.png?width=212&height=376)

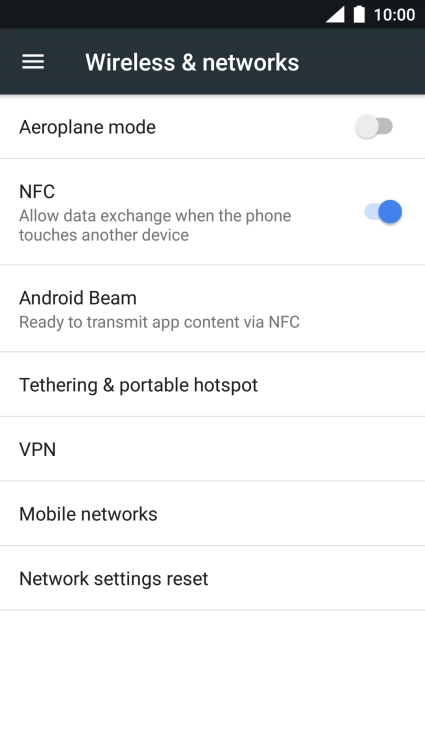

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e38300dc-482d-467a-a162-7864372b399a.png?width=212&height=376)

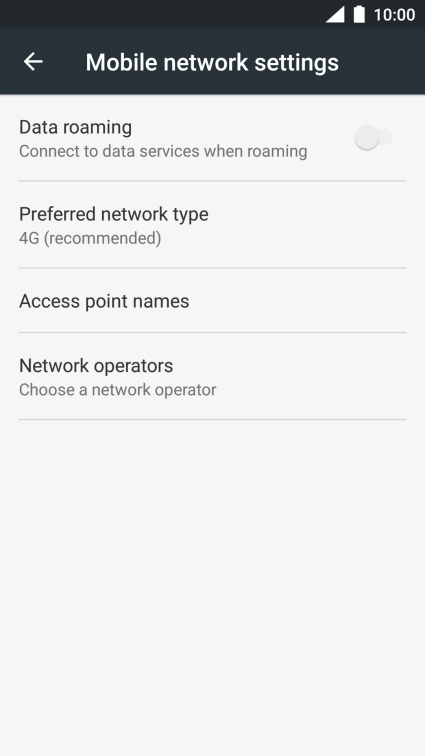

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b04dbac4-cb07-41e0-ba8d-fcb5029cc454.png?width=212&height=376)
2. Create new data connection

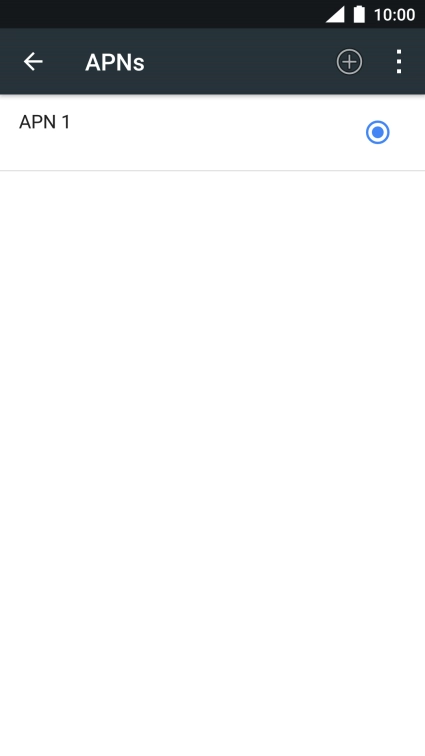

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-127c8b12-e103-4a77-be31-c3feaf0dac6d.png?width=212&height=376)

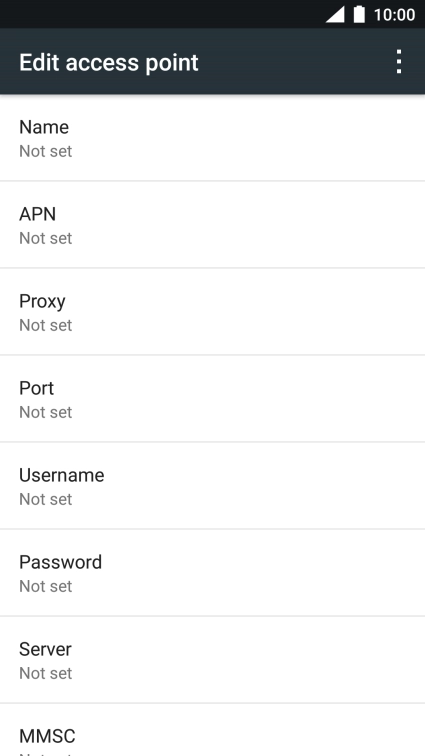

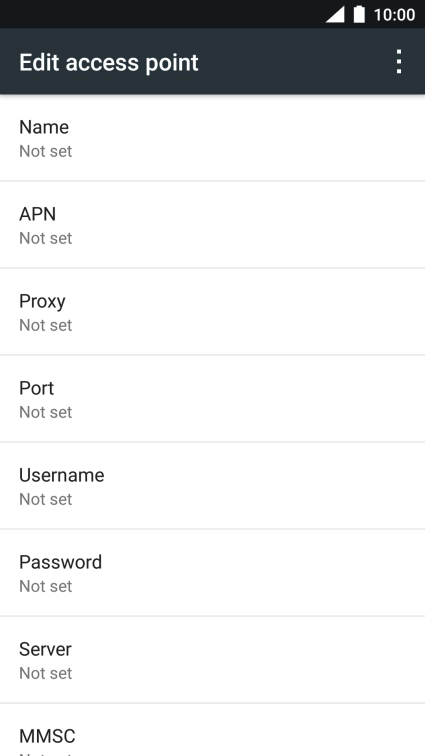

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5f6db5d0-7a24-4bed-a375-8b82ae694182.png?width=212&height=376)

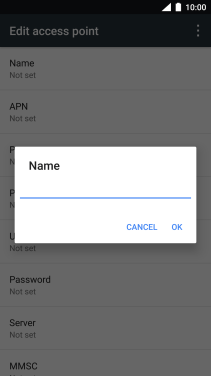

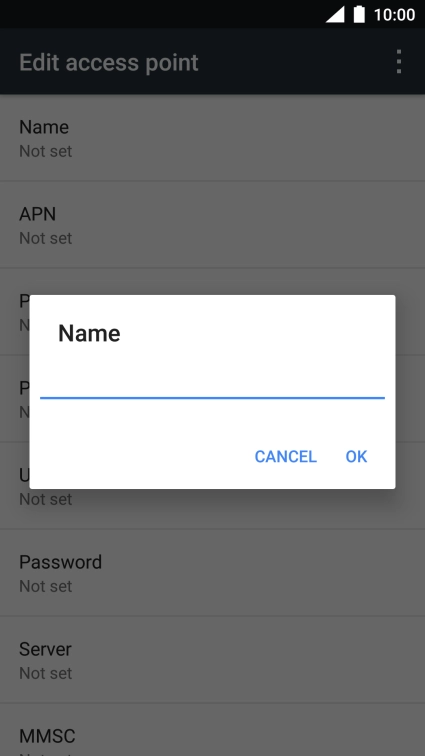

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-01f1b39a-854d-4081-a65a-b1100afe6b29.png?width=212&height=376)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5f6db5d0-7a24-4bed-a375-8b82ae694182.png?width=212&height=376)

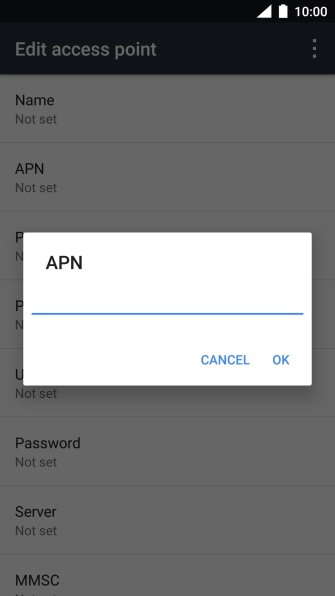

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a46adf96-7036-4707-866c-cb92b0f04c60.png?width=212&height=376)
live.vodafone.com
4. Enter MMSC

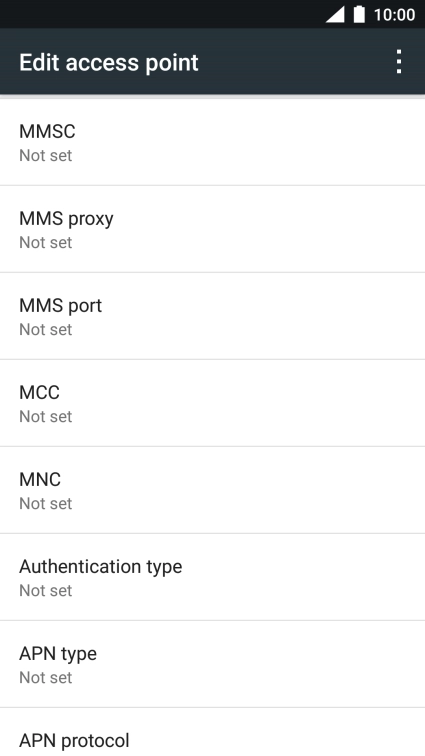

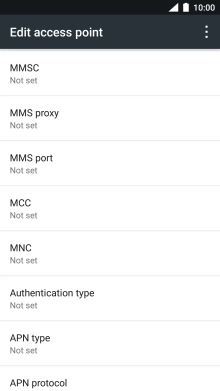

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1c1f988a-d381-43a3-8e2a-07aac92aaa94.png?width=212&height=376)

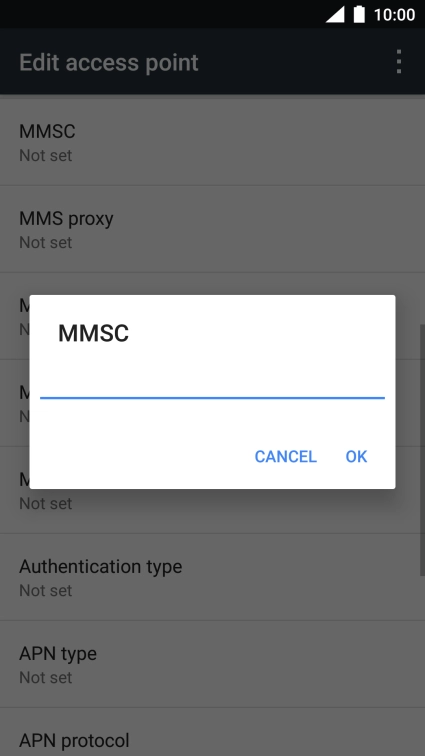

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-318f6ff1-41e7-440d-a6a9-0d0032cb7559.png?width=212&height=376)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1c1f988a-d381-43a3-8e2a-07aac92aaa94.png?width=212&height=376)

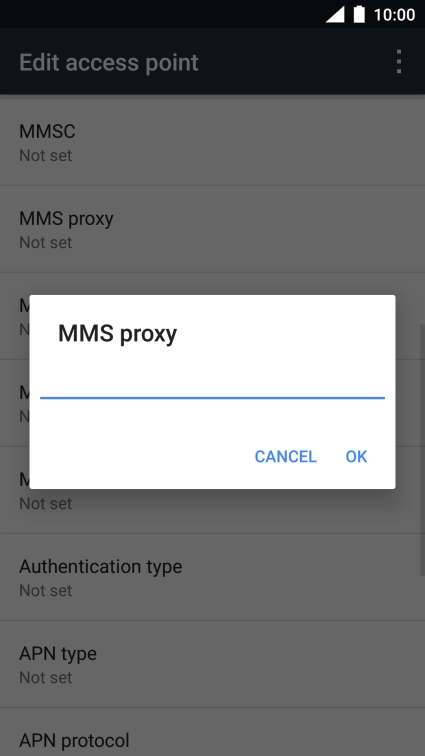

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a725d3bd-012b-49ae-89f0-e388fbd05fea.png?width=212&height=376)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1c1f988a-d381-43a3-8e2a-07aac92aaa94.png?width=212&height=376)

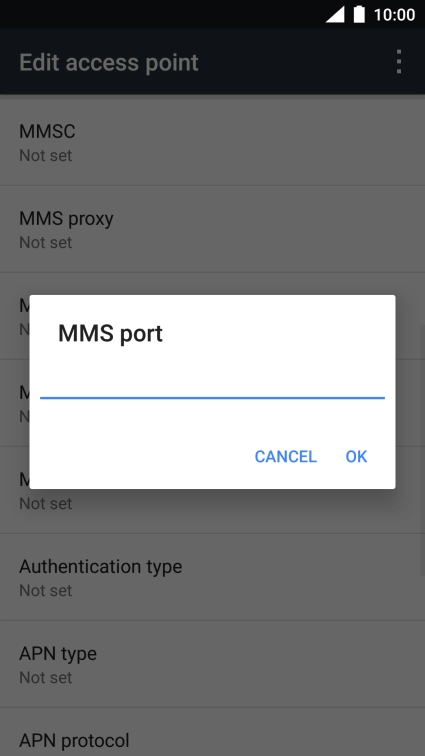

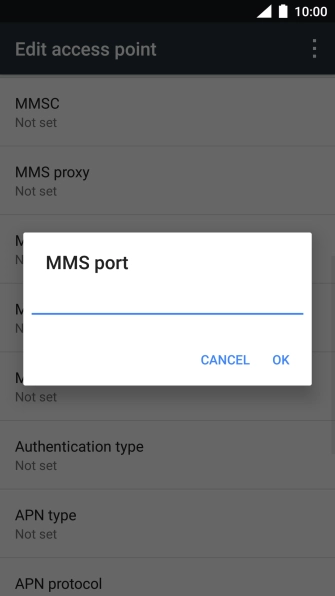

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-34c87a67-185b-4281-9465-5f212ba96155.png?width=212&height=376)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1c1f988a-d381-43a3-8e2a-07aac92aaa94.png?width=212&height=376)

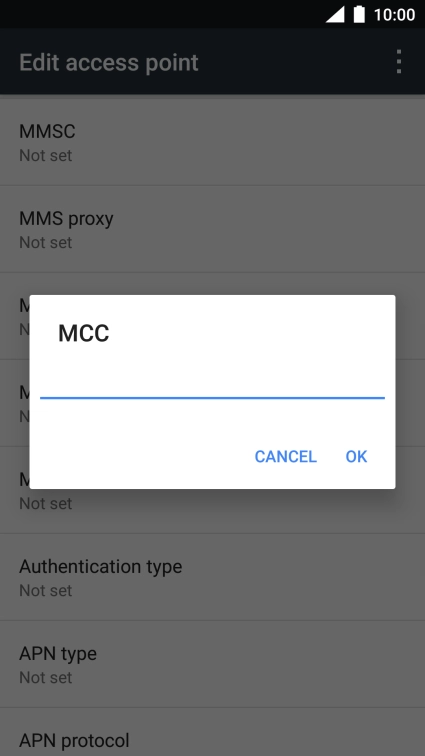

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-04bac560-596d-4954-885b-9f86cd59c5e5.png?width=212&height=376)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1c1f988a-d381-43a3-8e2a-07aac92aaa94.png?width=212&height=376)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ce21f432-448f-4779-8c26-422d4faec087.png?width=212&height=376)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1c1f988a-d381-43a3-8e2a-07aac92aaa94.png?width=212&height=376)

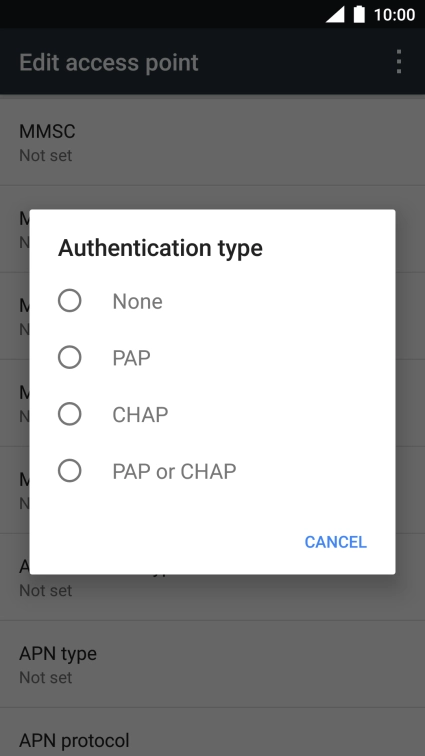

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9839b1ea-7761-4b75-a503-59ff712e6707.png?width=212&height=376)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1c1f988a-d381-43a3-8e2a-07aac92aaa94.png?width=212&height=376)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ab0755cf-3870-4252-b4b3-e2d1b93db732.png?width=212&height=376)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1c1f988a-d381-43a3-8e2a-07aac92aaa94.png?width=212&height=376)

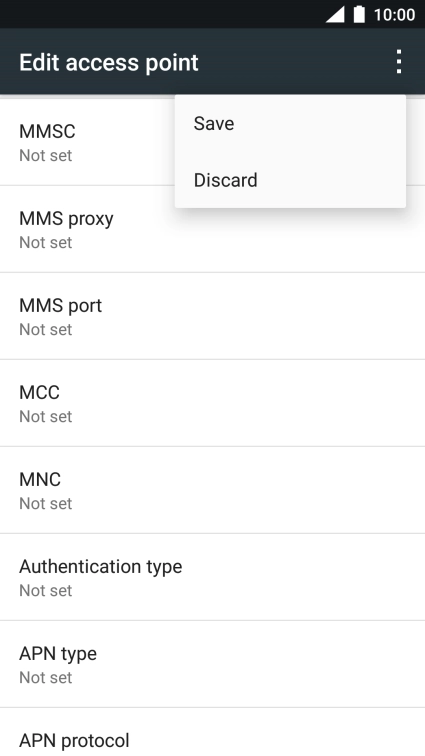

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-547c9993-7e9b-4fa2-bb1a-dde51f2ce494.png?width=212&height=376)
12. Return to the home screen

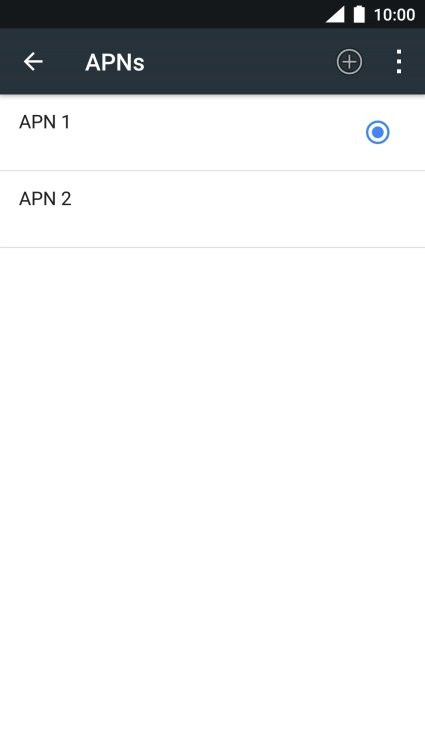

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-895a3981-4f0e-4fd5-9fde-a13822550a58.png?width=212&height=376)
