Set up your phone for Exchange email - Sony Xperia Arc

Read help info

Follow these instructions to set up your phone for Exchange email.

Step 1 of 57

Find "Access Point Names"

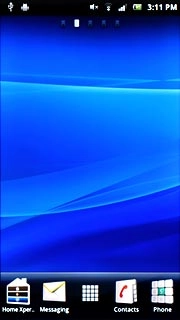

Press the menu icon.

Step 2 of 57

Find "Access Point Names"

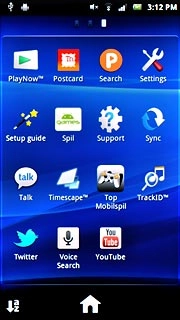

Press Settings.

Step 3 of 57

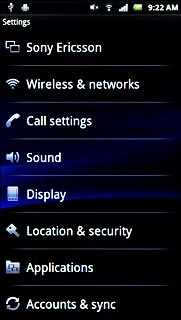

Find "Access Point Names"

Press Wireless & networks.

Step 4 of 57

Find "Access Point Names"

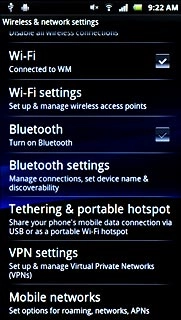

Press Mobile networks.

Step 5 of 57

Find "Access Point Names"

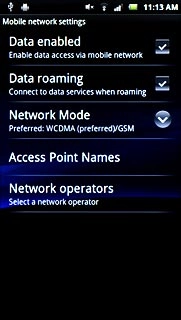

Press Access Point Names.

Step 6 of 57

Create new data connection

Press the Menu key.

Step 7 of 57

Create new data connection

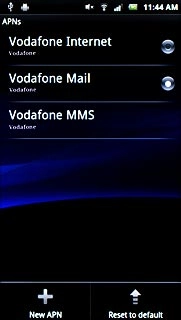

Press New APN.

Step 8 of 57

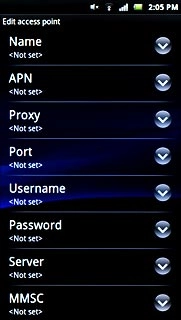

Enter data connection name

Press Name.

Step 9 of 57

Enter data connection name

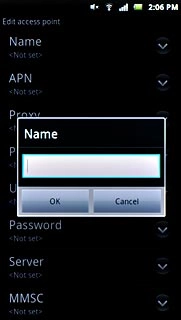

Key in Vodafone Mail and press OK.

Step 10 of 57

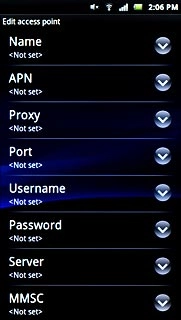

Enter APN

Press APN.

Step 11 of 57

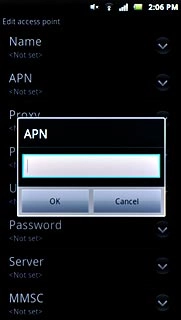

Enter APN

Key in live.vodafone.com and press OK.

Step 12 of 57

Enter country code

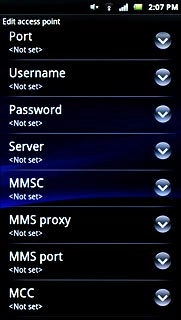

Press MCC.

Step 13 of 57

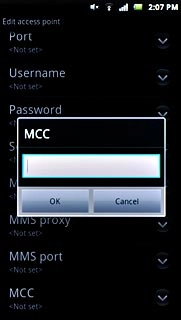

Enter country code

Key in 505 and press OK.

Step 14 of 57

Enter network code

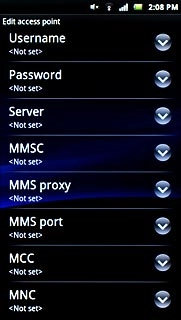

Press MNC.

Step 15 of 57

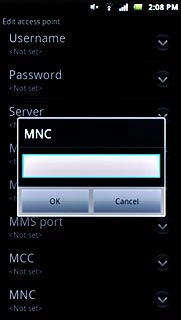

Enter network code

Key in 03 and press OK.

Step 16 of 57

Select authentication type

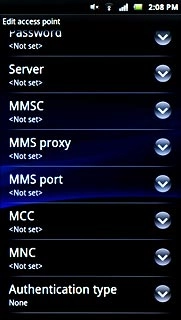

Press Authentication type.

Step 17 of 57

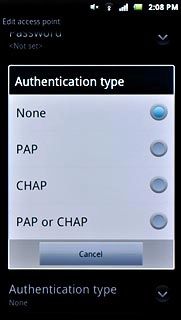

Select authentication type

Press PAP.

Step 18 of 57

Select APN type

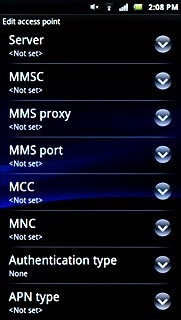

Press APN type.

Step 19 of 57

Select APN type

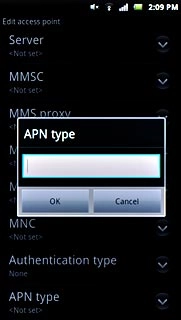

Key in default and press OK.

Step 20 of 57

Save and activate data connection

Press the Menu key.

Step 21 of 57

Save and activate data connection

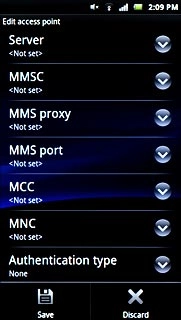

Press Save.

Step 22 of 57

Save and activate data connection

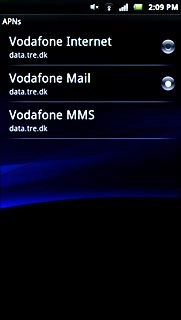

Press the field next to Vodafone Mail to activate the data connection.

Step 23 of 57

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 57

Find "Email"

Press the menu icon.

Step 25 of 57

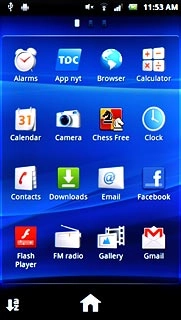

Find "Email"

Press Email.

Step 26 of 57

Create new email account

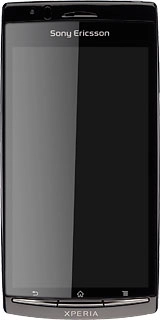

If email accounts have been created already:
Press the Menu key.

Step 27 of 57

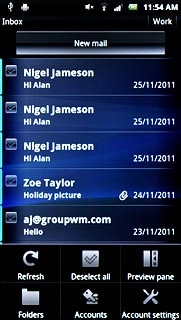

Create new email account

Press Accounts.

Step 28 of 57

Create new email account

Press the Menu key.

Step 29 of 57

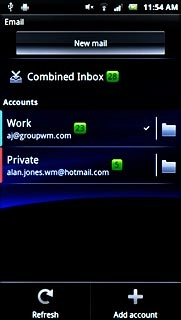

Create new email account

Press Add account.

Step 30 of 57

Enter email address

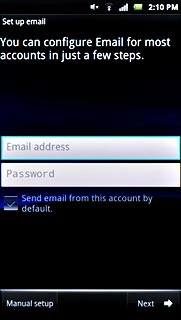

Press Email address and key in your email address.

Step 31 of 57

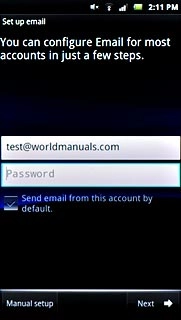

Enter password

Press Password and key in your password.

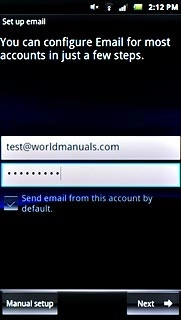

Step 32 of 57

Enter password

Press Next.

Step 33 of 57

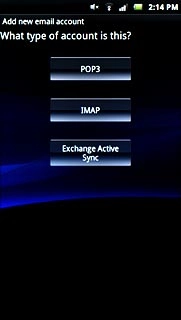

Select account type

Press Exchange Active Sync.

Step 34 of 57

Enter domain

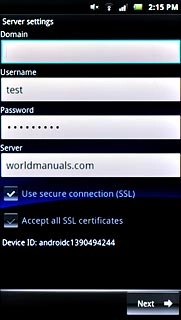

Press the field below Domain and key in the domain.

Step 35 of 57

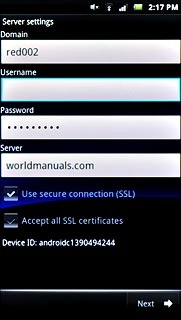

Enter username

Press the field below Username and key in the username.

Step 36 of 57

Enter server address

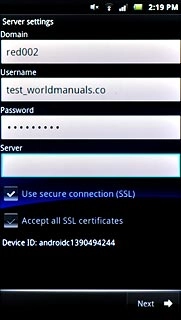

Press the field below Server and key in the server address.

Step 37 of 57

Turn SSL encryption on or off

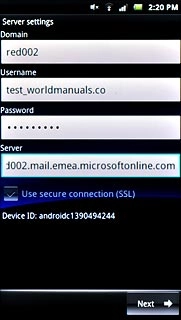

Press Use secure connection (SSL) to turn SSL encryption on or off.

Step 38 of 57

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 39 of 57

Turn on SSL certificates

Press Accept all SSL certificates to turn on the function.

The menu item is only available if you turned on Use secure connection (SSL) in step 20.
Step 40 of 57

Turn on SSL certificates

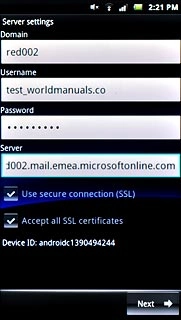

When the box next to the menu item is ticked (V), the function is turned on.

The menu item is only available if you turned on Use secure connection (SSL) in step 20.
Step 41 of 57

Turn on SSL certificates

Press Next.

The menu item is only available if you turned on Use secure connection (SSL) in step 20.
Step 42 of 57

Select setting for retrieving new email messages

Press the drop down list below Inbox check frequency.

Step 43 of 57

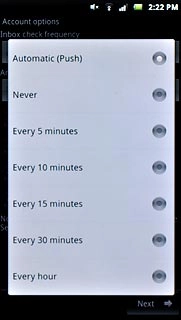

Select setting for retrieving new email messages

Press Automatic (Push), Never or the required interval.
Please note: Each time your phone connects to the server to synchronise, data charges will apply.

Step 44 of 57

Choose synchronisation period

Press the drop down list below Amount to synchronize.

Step 45 of 57

Choose synchronisation period

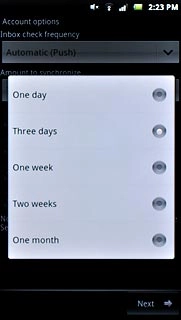

Press the required period.

Step 46 of 57

Select default email account

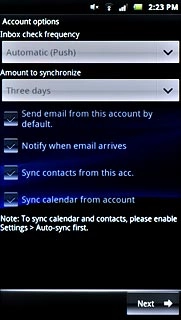

Press Send email from this account by default to turn the function on or off.

Step 47 of 57

Select default email account

When the box next to the menu item is ticked (V), the function is turned on.

Step 48 of 57

Turn email message notification on or off

Press Notify when email arrives to turn the function on or off.

Step 49 of 57

Turn email message notification on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 50 of 57

Turn synchronisation of contacts on or off

Press Sync contacts from this acc. to turn the function on or off.

Step 51 of 57

Turn synchronisation of contacts on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 52 of 57

Turn synchronisation of calendar on or off

Press Sync calendar from account to turn the function on or off.

Step 53 of 57

Turn synchronisation of calendar on or off

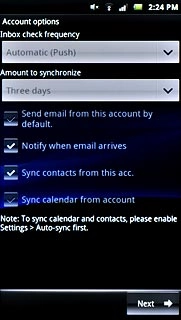

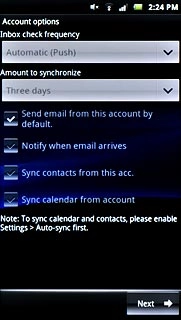

When the box next to the menu item is ticked (V), the function is turned on.

Step 54 of 57

Turn synchronisation of calendar on or off

Press Next.

Step 55 of 57

Enter email account name

Press the field below Give this account a name (optional) and key in a name for your email account (such as Private or Work).

Step 56 of 57

Enter email account name

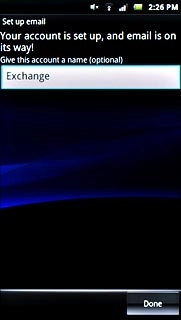

Press Done.

Step 57 of 57

Exit

Press the Home key to return to standby mode.
