1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-23264e8e-094e-4cbe-856c-2b9a4c86c66b.png?width=204&height=430)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e00d1eaa-8237-4da4-9be2-6e9e1d65fa24.png?width=204&height=430)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-bbb9885c-bc69-489c-bee5-83594258bc38.png?width=204&height=430)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-15c43f13-6429-4b05-86cf-f8386e14cefd.png?width=204&height=430)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-861bf5fb-1db4-4757-b8fa-1ea362b9572f.png?width=204&height=430)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f8fd42e1-707d-49f2-aa17-fa52e9a573c3.png?width=204&height=430)
2. Create new data connection

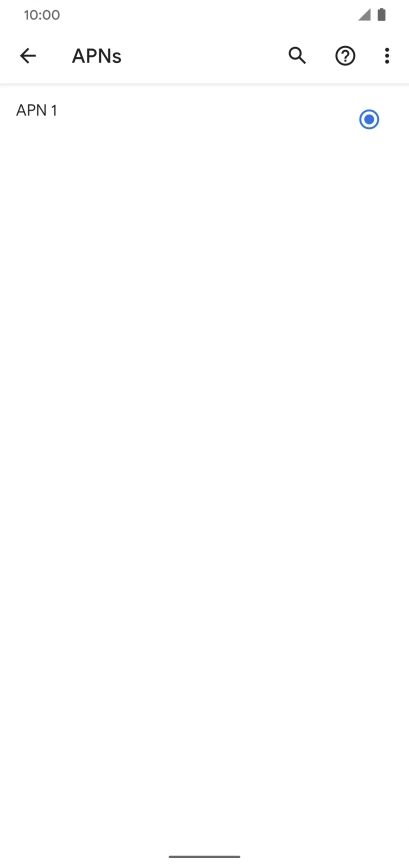

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6e463d3e-675b-4b62-80e2-1ed5f93089aa.png?width=204&height=430)

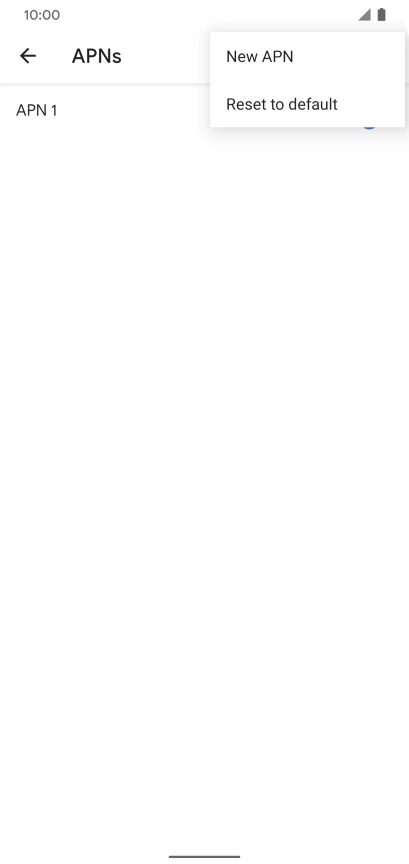

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-93115cf1-80cb-4331-882e-b88bee3833d1.png?width=204&height=430)
3. Enter a name for the connection

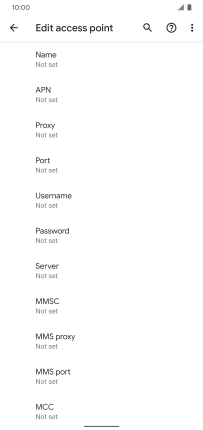

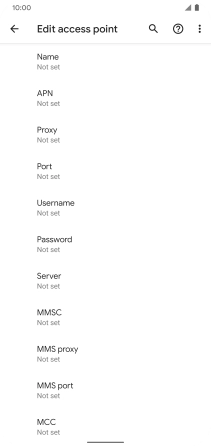

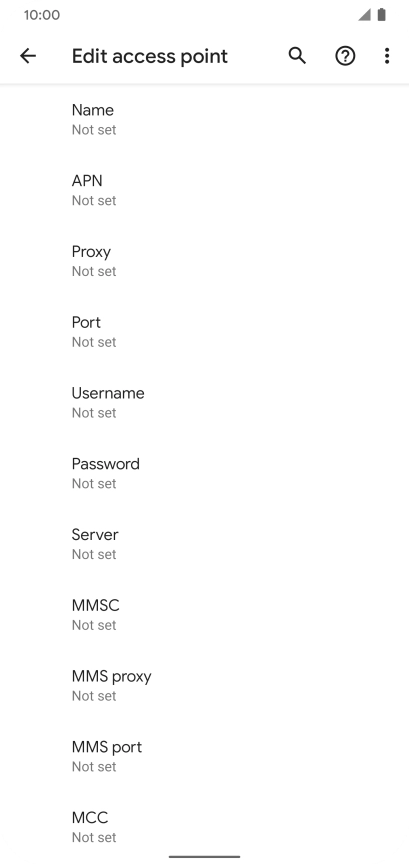

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-aa7df27a-51b1-42c6-92e9-765a95d58312.png?width=204&height=430)

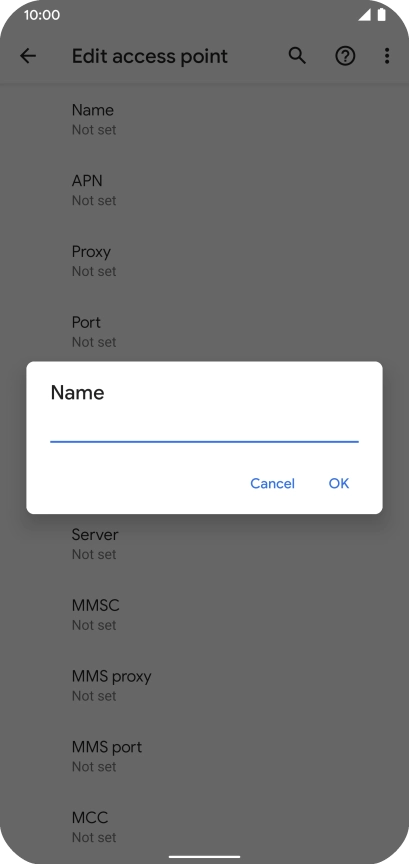

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-249efdd6-e53a-4902-8417-8d501d0e0274.png?width=204&height=430)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-aa7df27a-51b1-42c6-92e9-765a95d58312.png?width=204&height=430)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-42571fa8-1412-42cd-9502-d706d52af303.png?width=204&height=430)
live.vodafone.com
5. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-aa7df27a-51b1-42c6-92e9-765a95d58312.png?width=204&height=430)

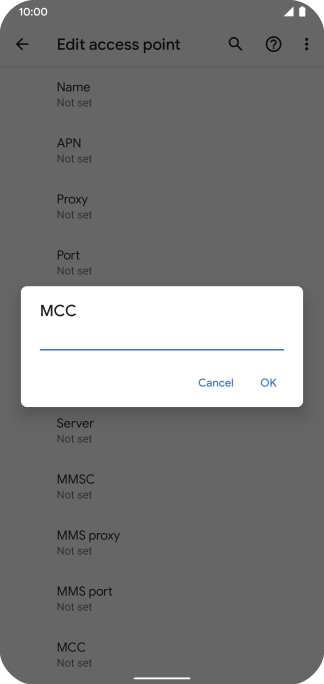

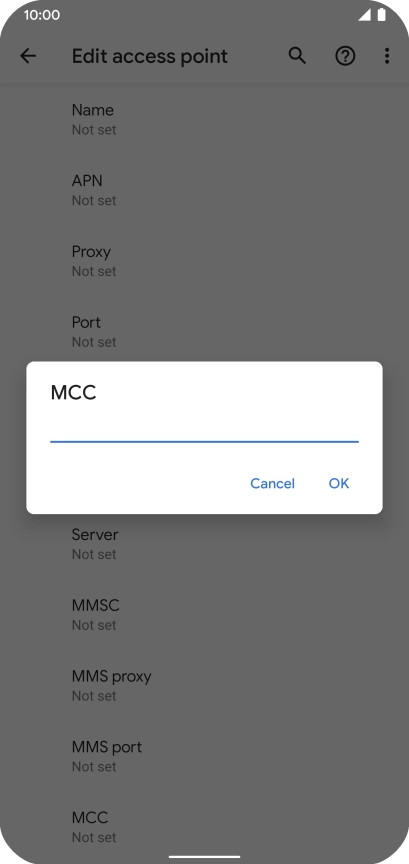

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-27e921c6-a5ed-4443-92c4-96336825a28e.png?width=204&height=430)
505
6. Enter network code

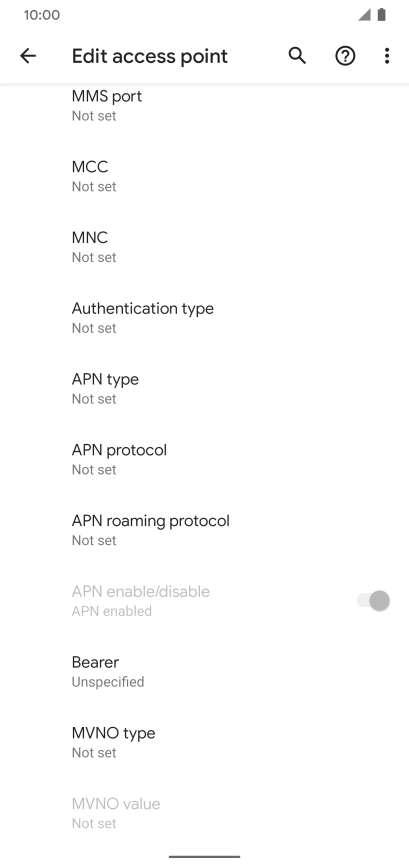

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-af238b5d-bd65-4a86-8ec2-d4906e3b5270.png?width=204&height=430)

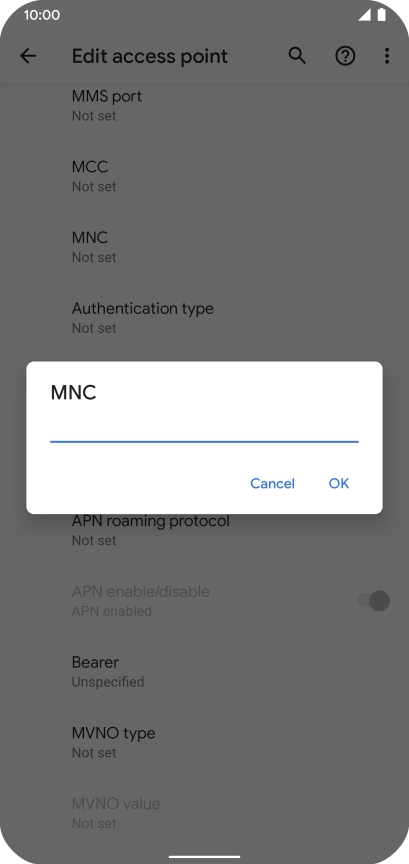

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d51ba3e7-b355-45c4-bc48-5811839a6fea.png?width=204&height=430)
03
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-af238b5d-bd65-4a86-8ec2-d4906e3b5270.png?width=204&height=430)

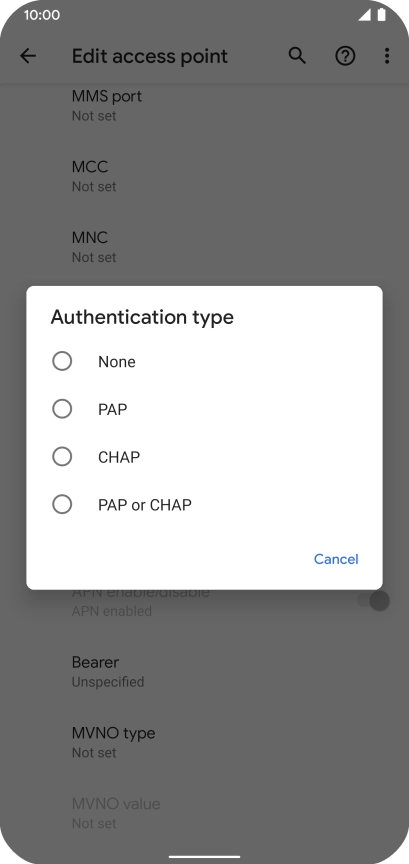

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e897bf34-c008-4661-9579-ec47f4a4e4f9.png?width=204&height=430)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-af238b5d-bd65-4a86-8ec2-d4906e3b5270.png?width=204&height=430)

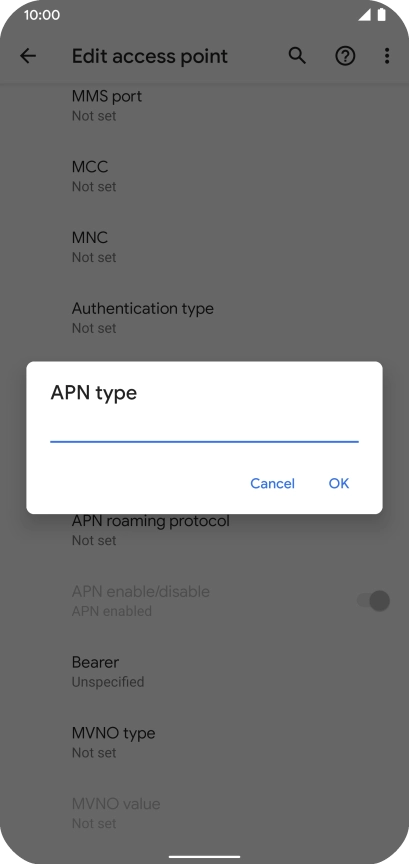

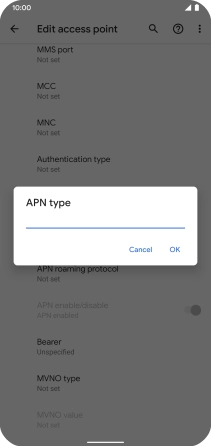

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9dd3302c-028c-4fe0-9dc6-8ba5162a014b.png?width=204&height=430)
default
9. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-af238b5d-bd65-4a86-8ec2-d4906e3b5270.png?width=204&height=430)

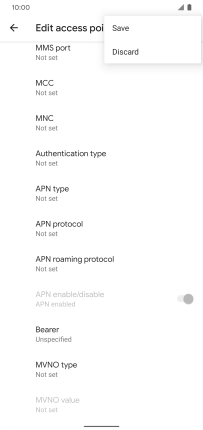

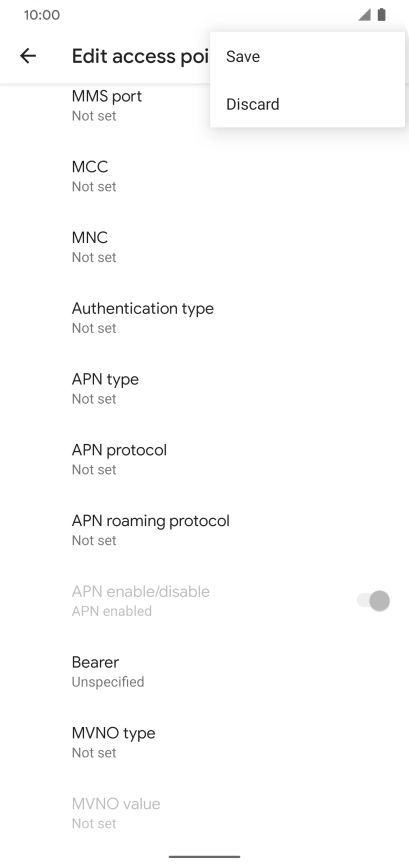

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-894a5023-8f26-496d-ab4e-ed16f1d21ca0.png?width=204&height=430)
Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81719e02-951c-4b97-bf79-47c7e1b851cf.png?width=204&height=430)
10. Return to the home screen

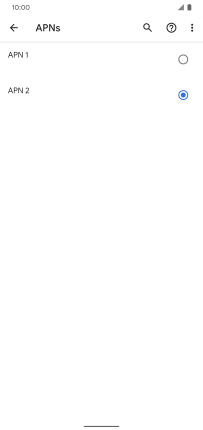

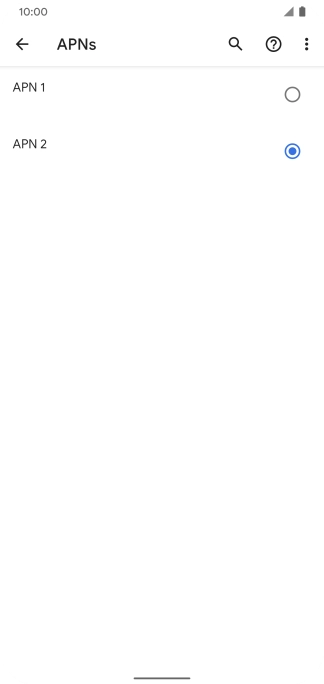

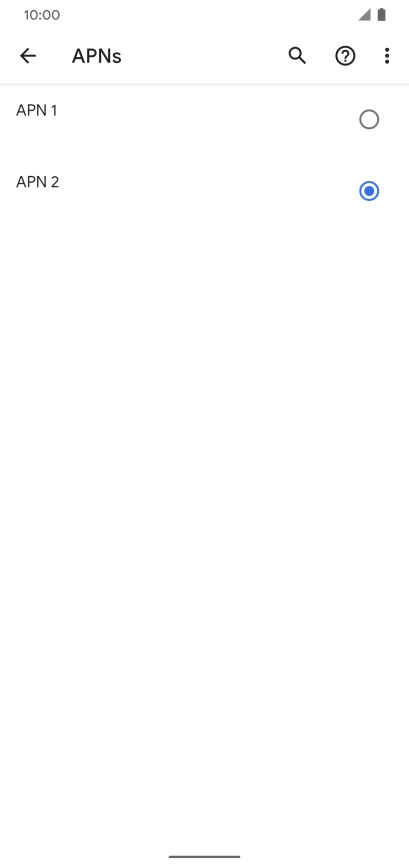

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c478167b-5fa3-4ab2-b674-a329c9114a04.png?width=204&height=430)
