1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-0fdeb35d-6591-441d-919b-0d9e8f686c73.png?width=378&height=456)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-1debf088-522a-4ef8-a802-3c808ac7a527.png?width=378&height=456)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-f836c7e1-149e-40dc-bd6f-837dd390114a.png?width=378&height=456)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-6d98ab6d-cd28-4ef9-b714-70f889cfe92f.png?width=378&height=456)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-fa741373-3c18-494b-a889-060f0ce8ce9f.png?width=378&height=456)
2. Create new data connection
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-eb529fb1-5051-404e-8cdf-a3e7dc1998c4.png?width=378&height=456)

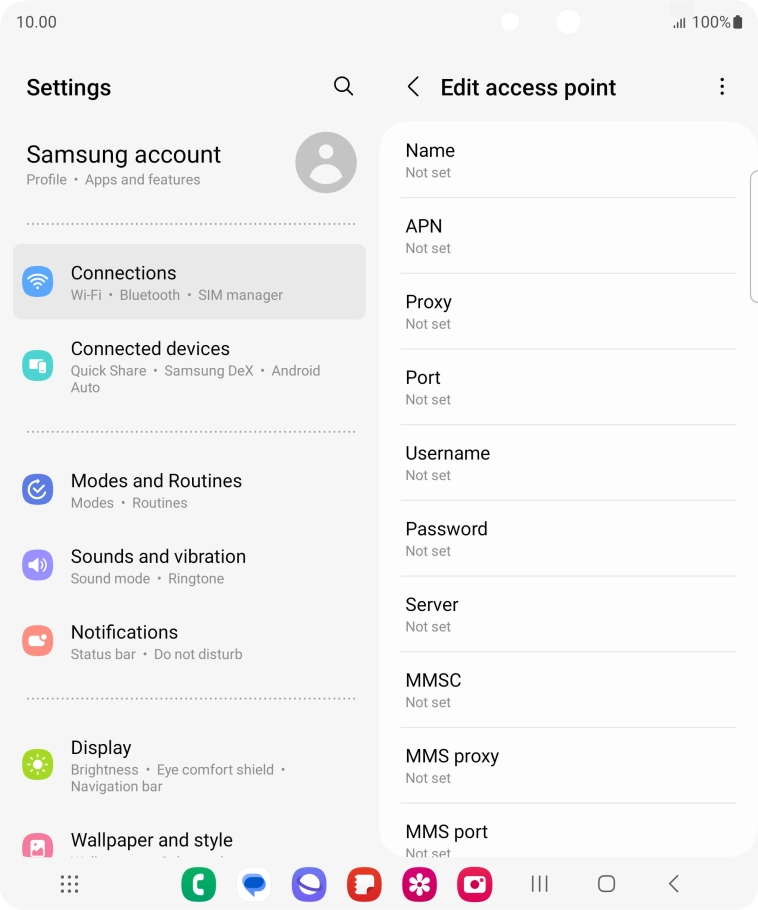

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-5a6e91d0-3c6f-4fee-ae28-5badb2c9c695.png?width=378&height=456)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-1108ebcb-132a-4ad3-a85e-f7d94c8efea2.png?width=378&height=456)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-5a6e91d0-3c6f-4fee-ae28-5badb2c9c695.png?width=378&height=456)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-4bb5c127-7cd2-4950-b6d6-97be9700618c.png?width=378&height=456)
live.vodafone.com
4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-5a6e91d0-3c6f-4fee-ae28-5badb2c9c695.png?width=378&height=456)
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-dabda138-369b-49fe-945f-bed1bdadb55b.png?width=378&height=456)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-5a6e91d0-3c6f-4fee-ae28-5badb2c9c695.png?width=378&height=456)

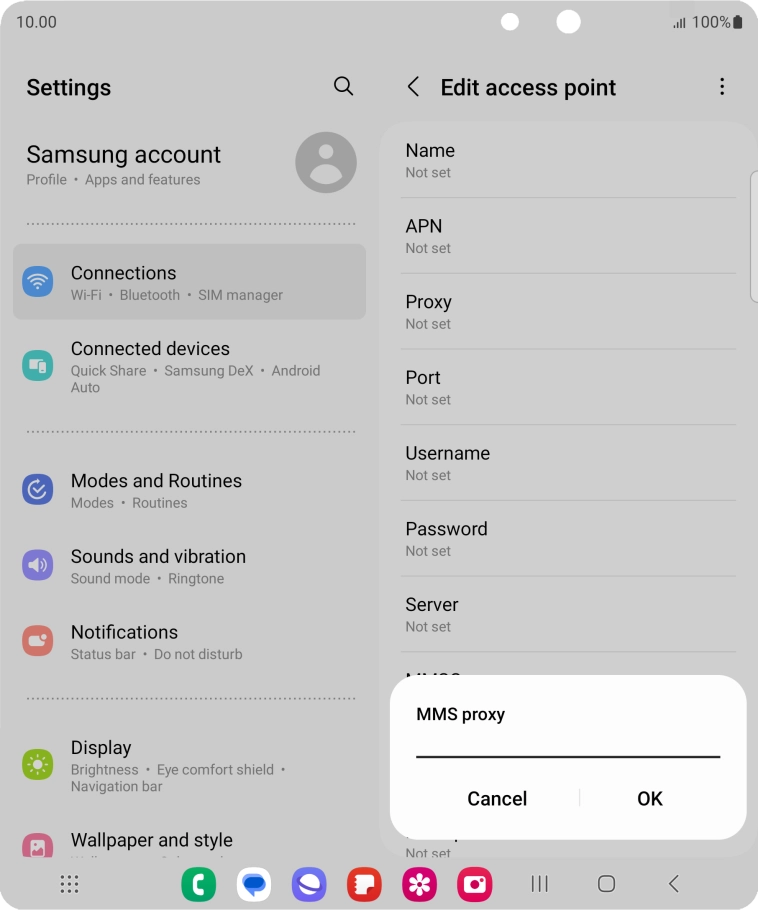

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-cef7c3c1-55df-4013-bb5e-4a170c748c3f.png?width=378&height=456)
10.202.002.060
6. Enter port number

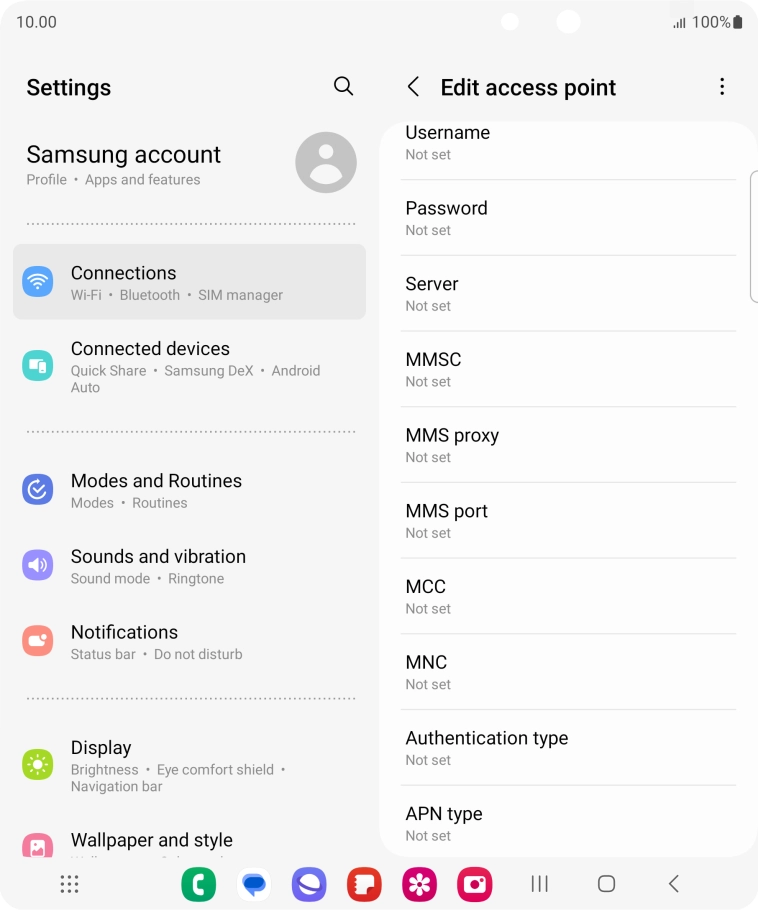

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-1578a3cc-f02d-4061-ad52-7e35f63527ef.png?width=378&height=456)

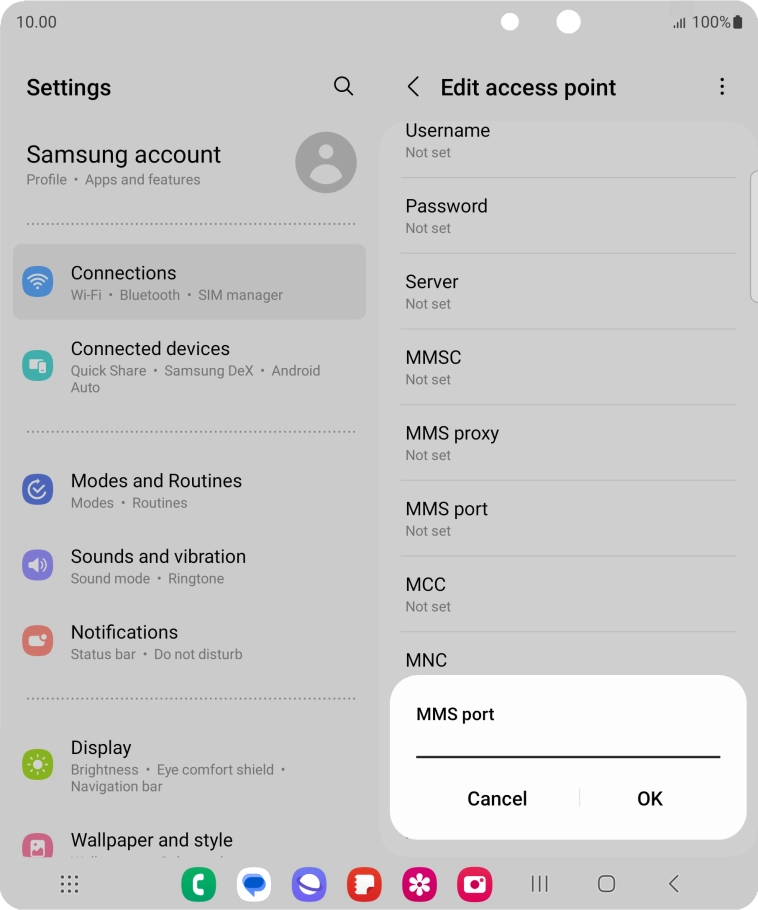

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-b0492a21-1aae-4a83-94bb-064a3430350b.png?width=378&height=456)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-1578a3cc-f02d-4061-ad52-7e35f63527ef.png?width=378&height=456)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-8fedf779-81d1-4684-a5db-54f68f88dd39.png?width=378&height=456)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-1578a3cc-f02d-4061-ad52-7e35f63527ef.png?width=378&height=456)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-7ccf88e2-0f3b-46ef-a492-79132da52551.png?width=378&height=456)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-1578a3cc-f02d-4061-ad52-7e35f63527ef.png?width=378&height=456)

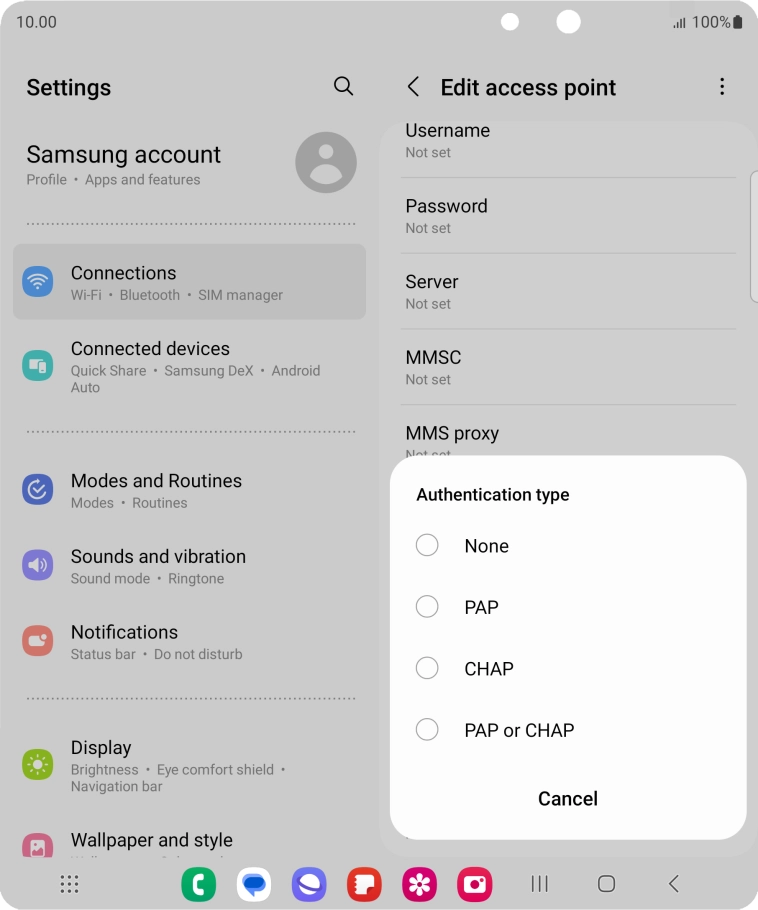

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-853e2e28-5e4d-43b9-96d2-f46e01dfa618.png?width=378&height=456)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-1578a3cc-f02d-4061-ad52-7e35f63527ef.png?width=378&height=456)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-02e69fd8-fb47-4b95-b720-ec2c704ab955.png?width=378&height=456)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-1578a3cc-f02d-4061-ad52-7e35f63527ef.png?width=378&height=456)

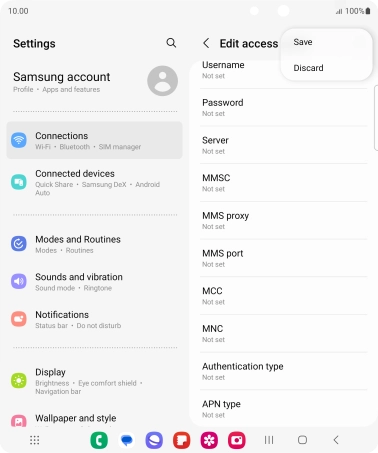

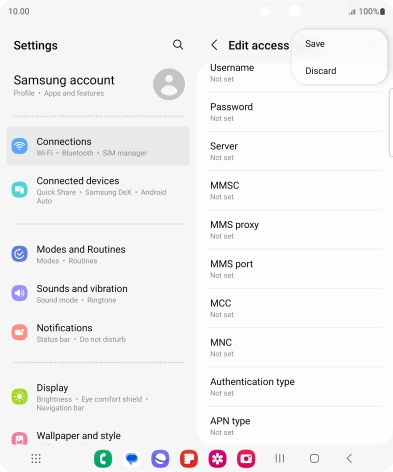

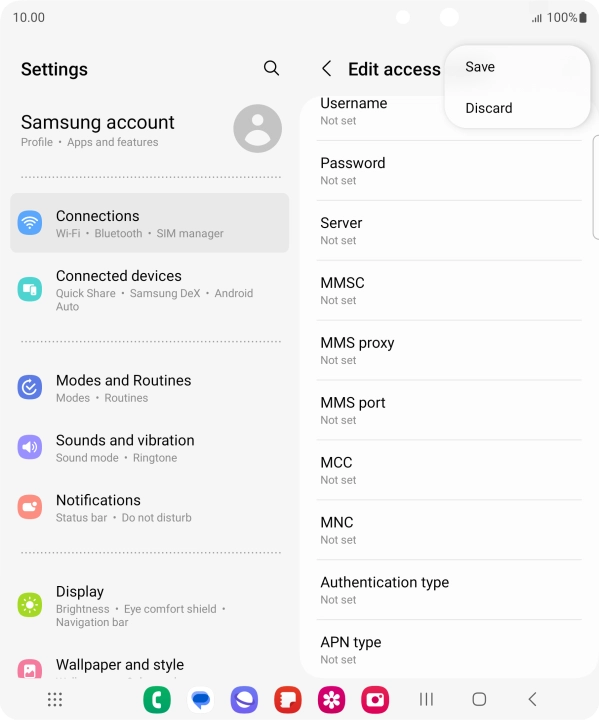

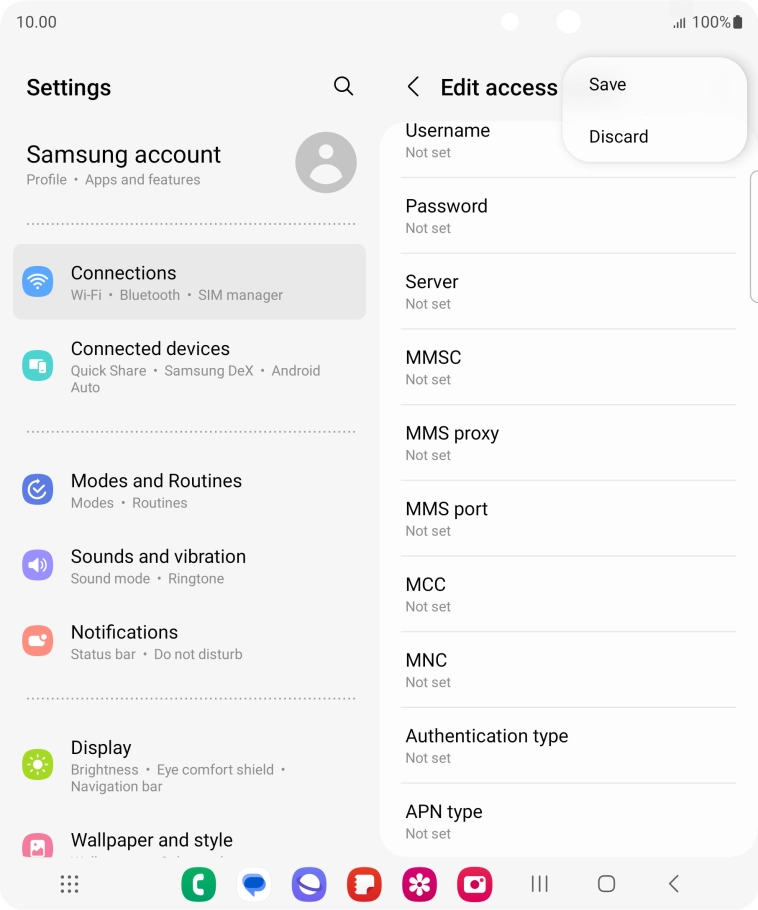

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-98e0f8fa-ce69-4136-9f4e-615d425b69ae.png?width=378&height=456)
12. Return to the home screen

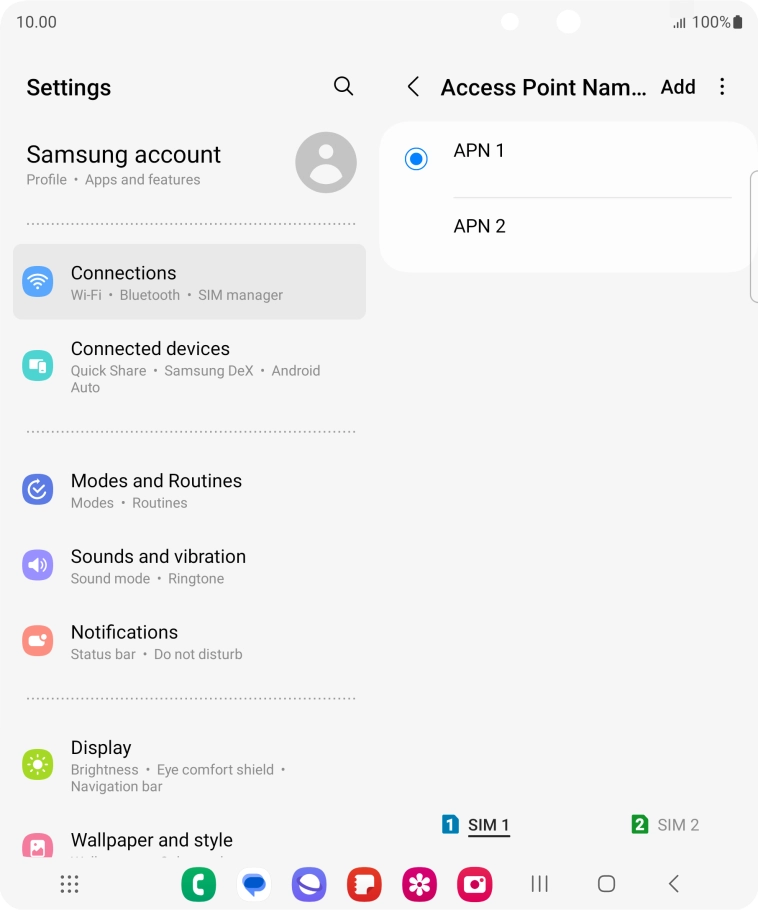

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7150824-f-1202cef2-7ce6-4e5d-9ac4-366a090a26b7.png?width=378&height=456)
