Set up your phone for web-based email - Sony Xperia Arc

Read help info

You can send and retrieve email messages from a web-based email account, such as Hotmail, Yahoo! Mail and Gmail. Follow these instructions to set up your phone for web-based email.
Before you can set up your phone for web-based email, you need an account with the required email provider. If you don't have an account, you can set one up on the web page of the email provider.

Please note that the steps below are based on a web-based email account. If you have a POP3 email account, you need to use the settings for POP3 email. Click here for information on how to set up your phone for POP3 email.

Step 1 of 36

Find "Access Point Names"

Press the menu icon.

Step 2 of 36

Find "Access Point Names"

Press Settings.

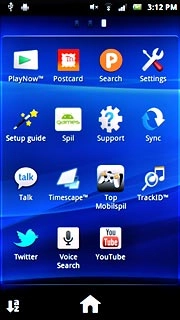

Step 3 of 36

Find "Access Point Names"

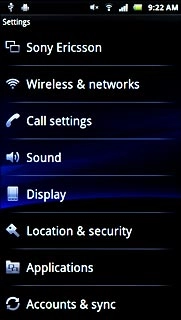

Press Wireless & networks.

Step 4 of 36

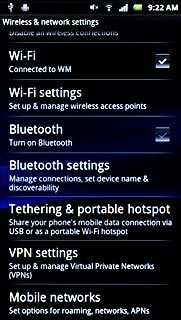

Find "Access Point Names"

Press Mobile networks.

Step 5 of 36

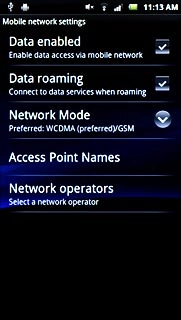

Find "Access Point Names"

Press Access Point Names.

Step 6 of 36

Create new data connection

Press the Menu key.

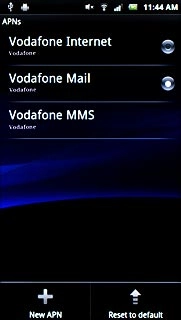

Step 7 of 36

Create new data connection

Press New APN.

Step 8 of 36

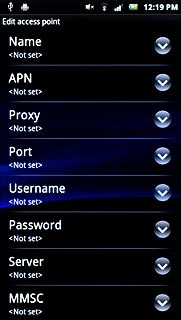

Enter data connection name

Press Name.

Step 9 of 36

Enter data connection name

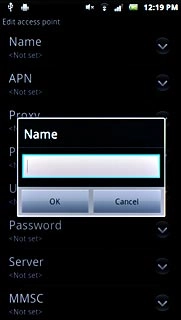

Key in Vodafone Mail and press OK.

Step 10 of 36

Enter APN

Press APN.

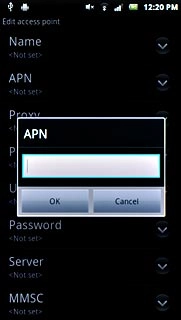

Step 11 of 36

Enter APN

Key in live.vodafone.com and press OK.

Step 12 of 36

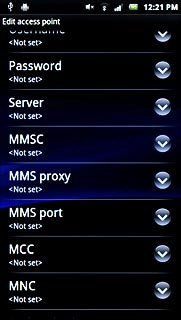

Enter country code

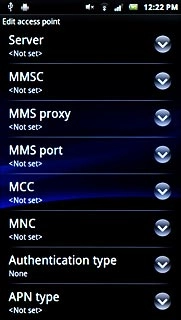

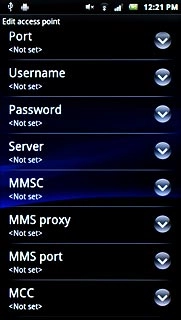

Press MCC.

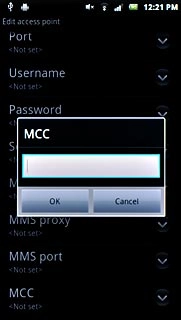

Step 13 of 36

Enter country code

Key in 505 and press OK.

Step 14 of 36

Enter network code

Press MNC.

Step 15 of 36

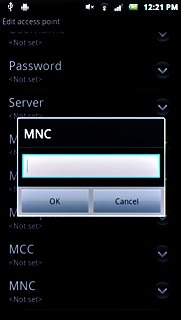

Enter network code

Key in 03 and press OK.

Step 16 of 36

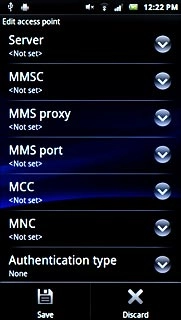

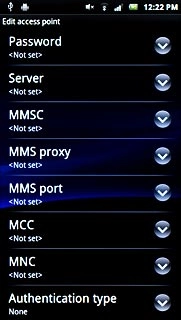

Select authentication type

Press Authentication type.

Step 17 of 36

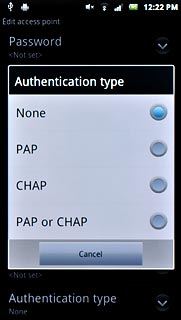

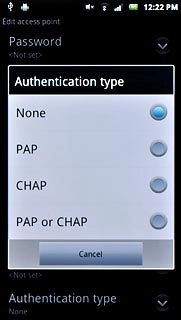

Select authentication type

Press PAP.

Step 18 of 36

Select APN type

Press APN type.

Step 19 of 36

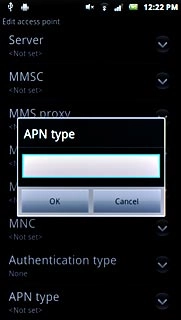

Select APN type

Key in default and press OK.

Step 20 of 36

Save and activate data connection

Press the Menu key.

Step 21 of 36

Save and activate data connection

Press Save.

Step 22 of 36

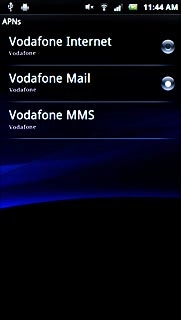

Save and activate data connection

Press the field next to Vodafone Mail to activate the data connection.

Step 23 of 36

Save and activate data connection

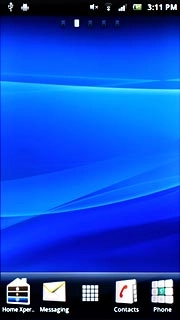

Press the Home key to return to standby mode.

Step 24 of 36

Find "Email"

Press the menu icon.

Step 25 of 36

Find "Email"

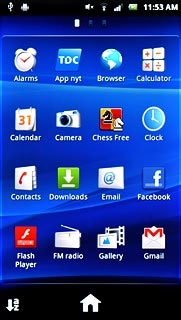

Press Email.

Step 26 of 36

Create new email account

If email accounts have been created already:
Press the Menu key.

Step 27 of 36

Create new email account

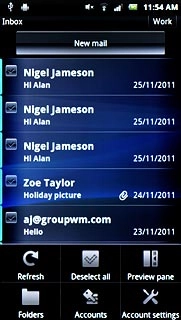

Press Accounts.

Step 28 of 36

Create new email account

Press the Menu key.

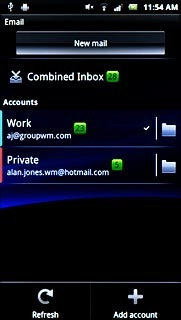

Step 29 of 36

Create new email account

Press Add account.

Step 30 of 36

Enter email address

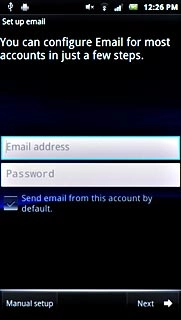

Press Email and key in your email address (such as name@provider.com).

Step 31 of 36

Enter password

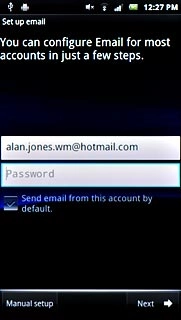

Press Password and key in the password for your email account at your email provider.

Step 32 of 36

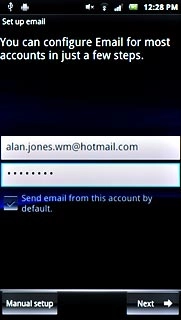

Enter password

Press Next.
The email account is created.

Step 33 of 36

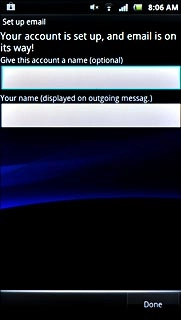

Enter email account name

Press the field below Give this account a name (optional) and key in a name for your email account (such as Private or Work).

Step 34 of 36

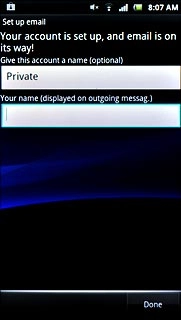

Enter sender name

Press the field below Your name (displayed on outgoing messag.) and key in the required sender name.

Step 35 of 36

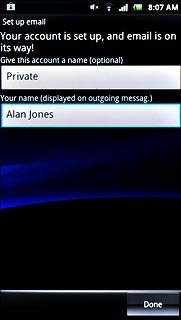

Retrieve email messages

Press Done.
Wait while your phone retrieves new email messages.

Step 36 of 36

Exit

Press the Home key to return to standby mode.

Find "Access Point Names"

Press the menu icon.
Press Settings.
Press Wireless & networks.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

Enter APN

Press APN.
Key in live.vodafone.com and press OK.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 03 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Key in default and press OK.

Save and activate data connection

Press the Menu key.
Press Save.
Press the field next to Vodafone Mail to activate the data connection.
Press the Home key to return to standby mode.

Find "Email"

Press the menu icon.
Press Email.

Create new email account

If email accounts have been created already:
Press the Menu key.
Press Accounts.
Press the Menu key.
Press Add account.

Enter email address

Press Email and key in your email address (such as name@provider.com).

Enter password

Press Password and key in the password for your email account at your email provider.
Press Next.
The email account is created.

Enter email account name

Press the field below Give this account a name (optional) and key in a name for your email account (such as Private or Work).

Enter sender name

Press the field below Your name (displayed on outgoing messag.) and key in the required sender name.

Retrieve email messages

Press Done.
Wait while your phone retrieves new email messages.

Exit

Press the Home key to return to standby mode.
